(Each)
$236.99
(Each)
(per 1)
In Stock Locally
$236.99
| Catalog Number | 10250TN12 |
|---|---|
| Vendor Code | CHC |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | 10250TN12 |

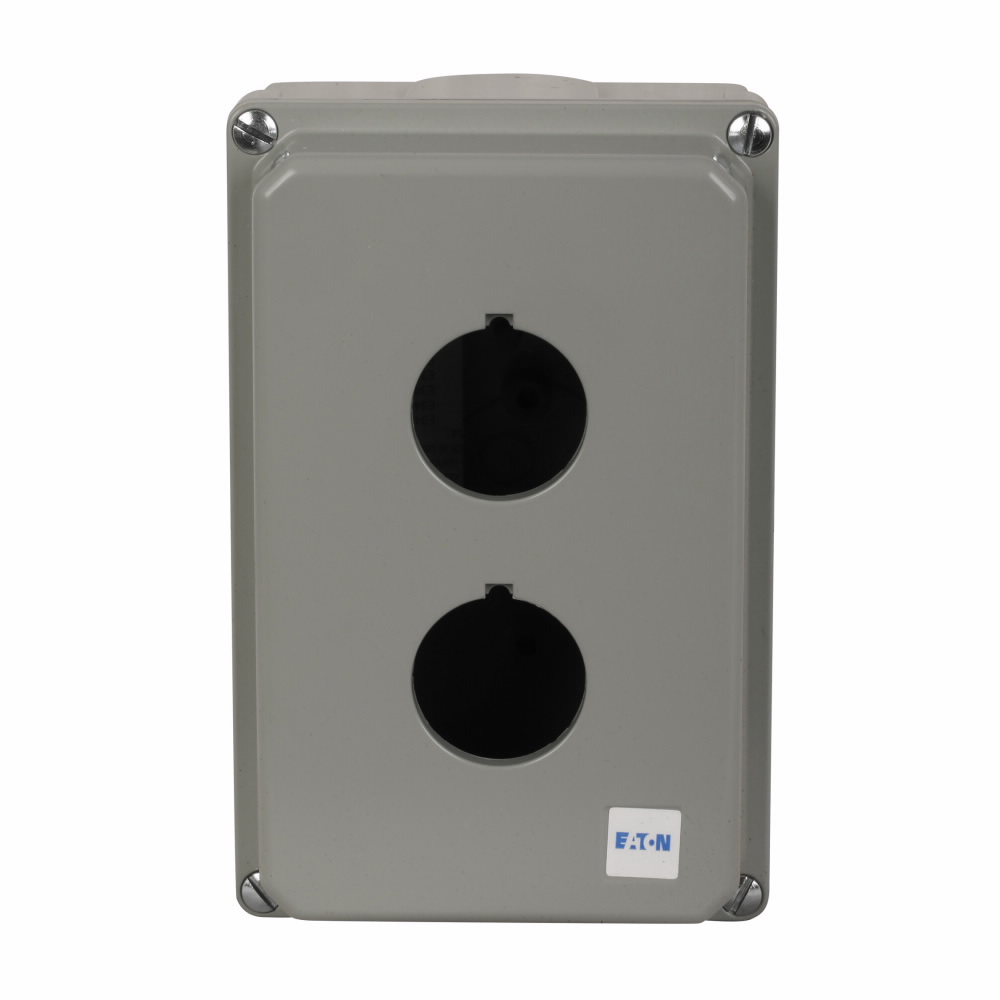

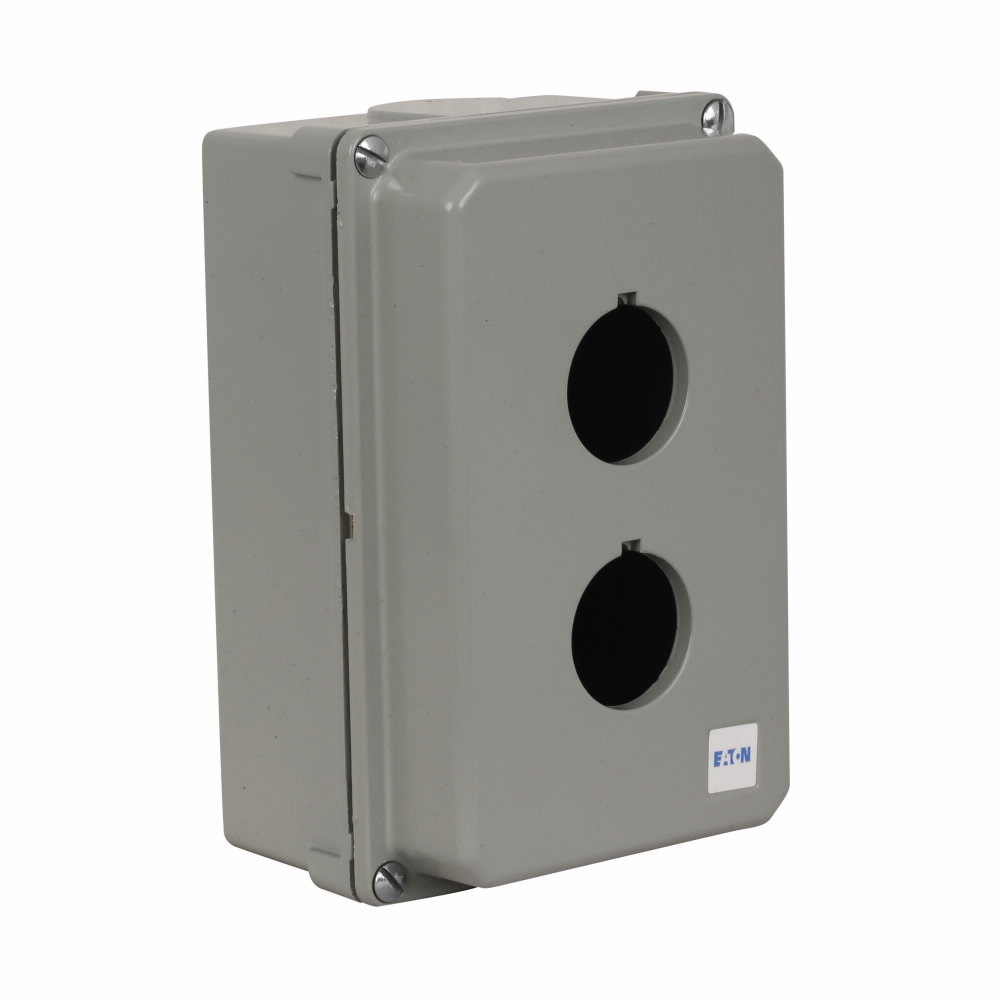

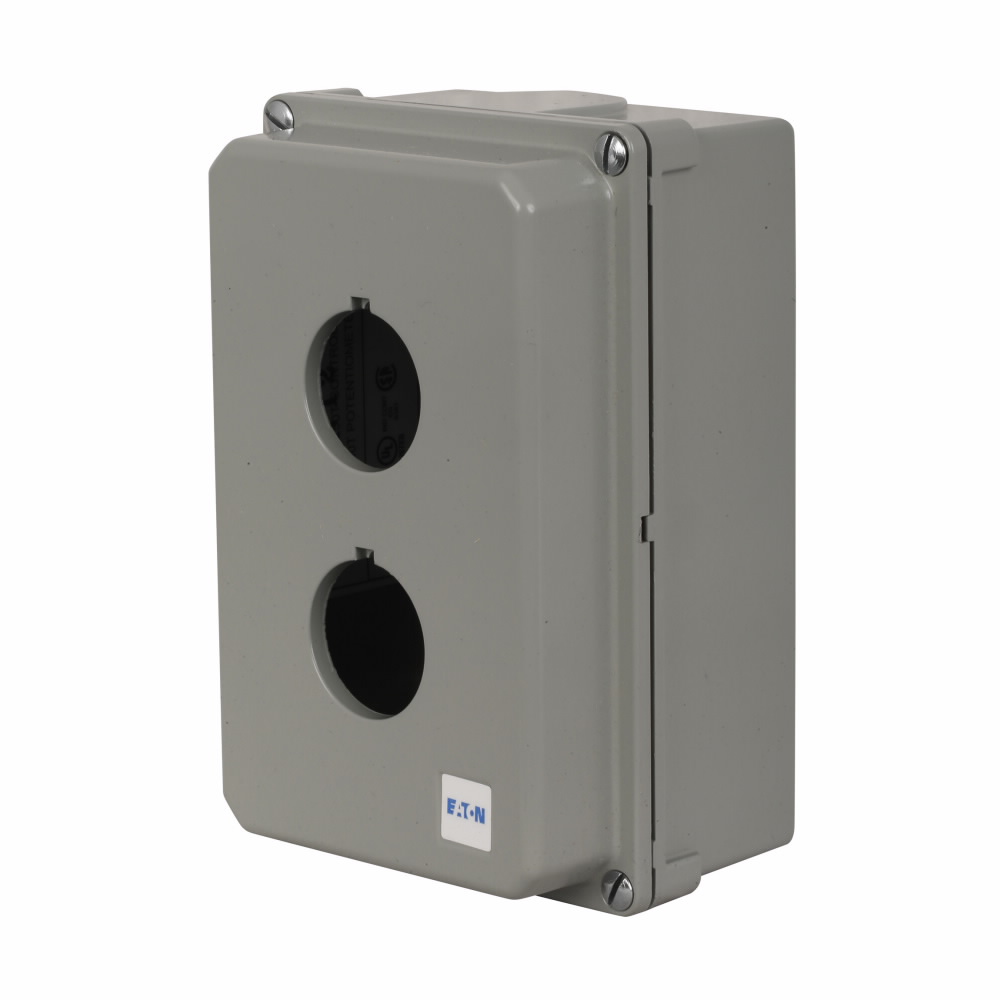

| Description | Oiltight Enclosure |
| Product Type | Enclosure |
| Short Description | Enclosure, Die Cast, 2 Element, NEMA 4 |
| Long Description | Enclosure, Die Cast Enclosure Material, 2 Elements, 10250T Series, 5.2 in Overall Width, 4.1 in Overall Height, 6.2 in Overall Length, Surface Mount, Zinc Die Cast (Bus) Material, 2.95 lb |
| Extra Long Description | ETN 10250TN12 OILTIGHT ENCLOSURE |
| Features | Heavy-duty zinc die cast construction, reliability nibs, drainage holes to prevent freezing |
| Number of Elements | 2 |
| Enclosure Type | NEMA 4; 4X; 12; 13 |
| Mounting Type | Surface Mount |
| Material | Zinc Die Cast (Bus) |
| Enclosure Material | Die Cast |
| Dimensions | 6.2000 IN x 5.2000 IN x 4.1000 IN |
| Overall Length | 6.2 in |
| Overall Width | 5.2 in |
| Overall Height | 4.1 in |
| Weight per Unit | 2.95 lbs |
| Categories | Control & Pendant Stations – Control Station Enclosures |
| Classification | Oiltight Operators.30MM |
| UNSPSC | 39121565 – Surface mount control station |
| UPC / GTIN | 782113204604 / 00782113204604 |
| Minimum Order Quantity | 1 |
| Unit Price | $236.99 (Each) |
| Stock Availability (Nacogdoches) | 3 |
| Stock Availability (All Stores) | 77 |
| Made in USA | Yes |
| Brand | Eaton Cutler-Hammer |
| Type | Pushbutton accessory |
| Packaging | Carton: 1 |
| Standards Met | UL Listed, CSA Certified, CE Marked |
| Application | Electrical Assemblies, Panels and EOEMs |
