(Each)
$109.91
(Each)
(per 1)
(per 50)
In Stock Locally
$109.91
| Field | Details |
|---|---|
| Quick Specs | |
| Catalog Number | 10RC38 Vendor Code TAB |
| Manufacturer | Sta-Kon |
| Manufacturer’s Part Number | 10RC-38 |

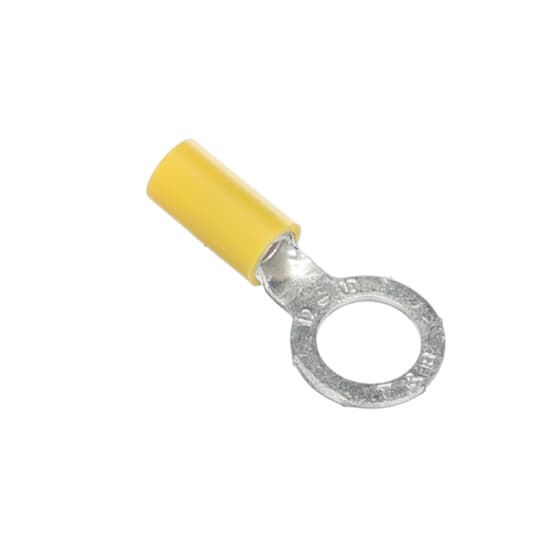

| Description | 12-10 Ins Ring Term Ring Terminal, #12 Awg Conductor Size, #10 Awg Conductor Size, Insulated, Vinyl Insulation Material, Copper Conductor Material, Yellow Insulation Color, 600 V Ac, 1.29 In Overall Length, 0.210 In Insulation Length |
| Slang Terms | (none provided) |
| Categories | Solderless Connectors – Small Terminals & Connectors |
| Classification | Terminals |
| UNSPSC | 39121432 – Electrical terminals |
| UPC/EAN/GTIN | 786210800509 / 5414363136279 / 00786210800509 |
| Weight per unit | 0.005 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 50 |
| Unit Price | $2.20 (Each) |
| Carton Price | $109.90 (Per 50) |
| Stock Availability | Nacogdoches: 50 (Check another store) All Stores: 10,850 |
| Features | |
| Terminal Type | Ring Terminal |
| Voltage Rating | 600 V ac |
| Wire Size | 12-10 AWG |
| Material | Copper |
| Insulation Material | Vinyl |
| Conductor Material | Copper |
| Insulation Color | Yellow |
| Color | Yellow |
| Overall Length | 1.29 in |
| Descriptions | |
| Description | 12-10 INS RING TERM |
| Product Type | Ring Terminal |
| Long Description | Ring Terminal, #12 AWG Conductor Size, #10 AWG Conductor Size, Insulated, Vinyl Insulation Material, Copper Conductor Material, Yellow Insulation Color, 600 V ac, 1.29 in Overall Length, 0.210 in Insulation Length |
| Features | Vinyl-Insulated Ring Terminal, Length 1.29 Inches, Width 0.50 Inches, Maximum Insulation 0.210, Bolt Hole 3/8 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated. |
| Short Description | #18 to #14 AWG Sta-Kon Ring Terminal, Insulated, 600 VAC, Bolt Hole #8 |
| Special Features | Self-Insulated with PVC insulation sleeve of extra length for protection and bending stress relief. Brazed seam barrel serrated for high pull-out value. |
| Extra Long Description | ABB 10RC-38 INS VIN RING TERM 12-10 |
| Additional Information | |
| Minimum Conductor Size | #12 AWG |
| Maximum Conductor Size | #10 AWG |
| Insulated/Non-Insulated | Insulated |
| Insulation Length | 0.210 in |
| Standards Met | UL E9809; CSA |
| Made in USA | Yes |
| Package Quantity | 50 CT; 250 PK |
| Manufacturer Information | |
| Brand | Sta-Kon |
| Manufacturer’s Part Number | 10RC-38 |
| Sub Brand | Sta-Kon |
| GTIN | 00786210800509 |
| UPC | 786210800509 |
| Taxonomies, Classifications, and Categories | |
| Category Description | TERMINALS |
| Type | Vinyl Insulated Ring Terminal |
| Availability | Minimum Qty 50 |
| Packaging | Weight per each 0.005, Carton 50 |
| Uses, Certifications, and Standards | |
| Application | Wire Termination |
| Standard | UL E9809 / UL E9809 |
