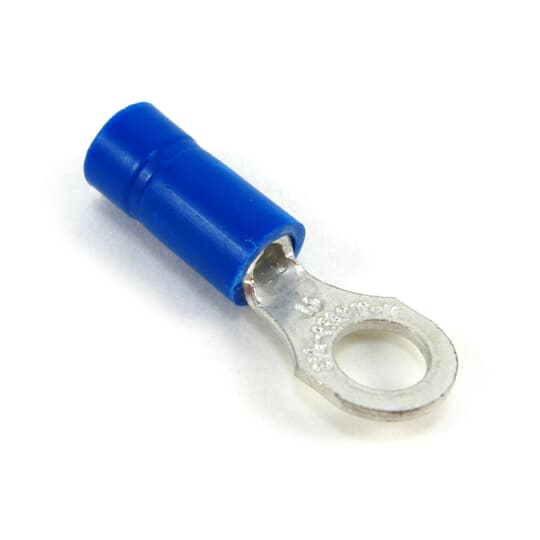

14RB10 – 18-14 Ring Terminal
$
(per )
(Each)
$62.06
(Each)
$
(per 1)
$
(per 500)
Availability:
In Stock Locally
| Category | Details |
|---|---|
| Quick Specs | |
| Catalog Number | 14RB10 |
| Vendor Code | TAB |
| Manufacturer | Sta-Kon |
| Manufacturer’s Part Number | 14RB-10 |
| Description | 18-14 Ring Terminal |
| Extra Description | Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated |
| Slang Terms | (none provided) |
| Categories & Classification | |
| Categories | Solderless Connectors – Small Terminals & Connectors |
| Classification | Terminals |
| UNSPSC | 39121432 – Electrical terminals |
| UPC/EAN/GTIN | 786210800691 / 5414363137887 / 00786210800691 |
| Weight & Packaging | |
| Weight per unit | 0.0029 lbs/each |
| Minimum Order Quantity | 100 |
| Unit Price | $0.62 (Each) |
| Carton Price | $62.06 (Per 100) |
| Standard Packaging | $310.30 (Per 500) |
| Stock Availability | |
| Nacogdoches Stock | 1,800 (Check another store) |
| All Stores Stock | 68,298 |
| Features | |
| Wire Size | 18-14 AWG |
| Voltage Rating | 600 V |
| Material | Copper |
| Color | Blue |
| Descriptions | |
| Product Type | Ins Vinyl Ring Term 18-14 NO10 Blue |
| Description | 18-14 RING TERMINAL |
| Long Description | Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated |
| Special Features | These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point. Brazed seam barrel is serrated to obtain high pull-out value |
| Manufacturer Information | |
| Brand | Sta-Kon |
| Manufacturer’s Part Number | 14RB-10 |
| GTIN | 00786210800691 |
| UPC | 786210800691 |
| Taxonomies, Classifications, and Categories | |
| Category Description | TERMINALS |
| Type | Vinyl Insulated Ring Terminal |
| Availability (Minimum Qty) | 100 |
| Packaging | Weight per each: 0.0029 lbs, Carton: 100, Package: 500 |
| Uses, Certifications, and Standards | |
| Standard | UL E9809 |
