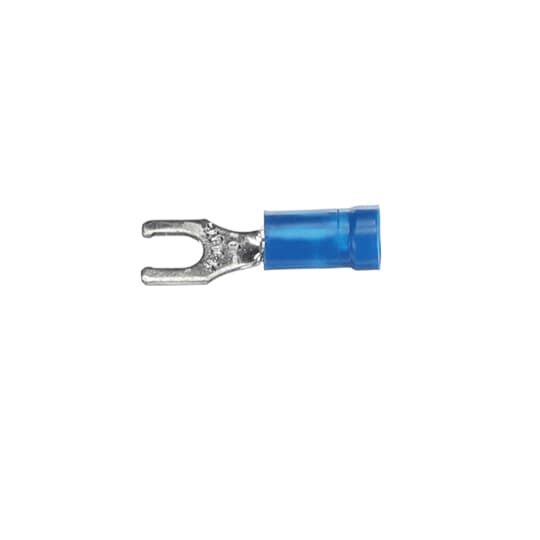

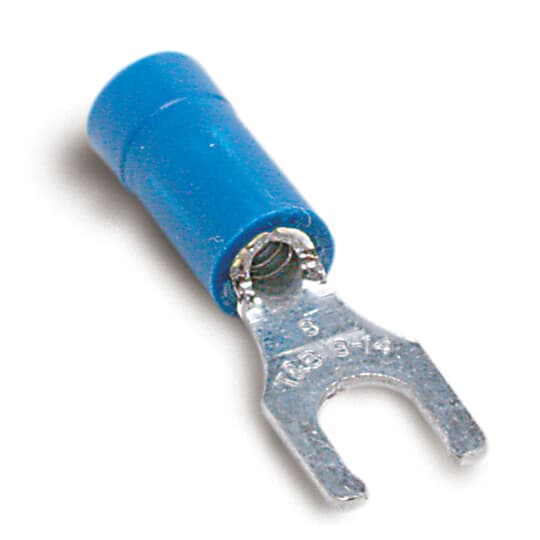

14RB8FLE – 18-14 Fork Terminal
$
(per )
(Each)
$44.03
(Each)
$
(per 1)
$
(per 10000)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Quick Specs | |
| Catalog Number | 14RB8FLE Vendor Code TAB |
| Manufacturer | Sta-Kon |
| Manufacturer’s Part Number | 14RB-8FL |
| Description | 18-14 Fork Terminal Fork Terminal, #18 AWG Conductor Size, #14 AWG Conductor Size, Insulated, Vinyl Insulation Material, Copper Conductor Material, Blue Insulation Color, 600 V AC, 0.97 In Overall Length, 0.170 In Insulation Length, 0.02 LB |
| Slang Terms | (None provided) |
| Categories | Solderless Connectors – Small Terminals & Connectors |
| Classification | Terminals |
| UNSPSC | 39121432 – Electrical terminals |
| UPC/EAN/GTIN | 786210806549 / 5414363138068 / 00786210806549 |
| Weight per unit | 0.02 lbs/each |
| Price & Packaging | |
| Minimum Order Quantity | 100 |
| Unit Price | $0.44 (Each) |
| Carton Price | $440.30 (Per 1,000) |
| Standard Packaging | $4,403.00 (Per 10,000) |
| Stock Availability | Nacogdoches: 1,000 (Check another store) All Stores: 68,450 |
| Features | |
| Voltage Rating | 600 V AC |
| Terminal Type | Fork Terminal |
| Wire Size | 18-14 AWG |
| Material | Copper |
| Conductor Material | Copper |
| Insulation Material | Vinyl |
| Insulation Color | Blue |
| Color | Blue |
| Dimensions and Weight | |
| Overall Length | 0.97 in |
| Weight | 0.02 lb |
| Descriptions | |
| Description | 18-14 FORK TERMINAL |
| Product Type | Fork Terminal |
| Long Description | Fork Terminal, #18 AWG Conductor Size, #14 AWG Conductor Size, Insulated, Vinyl Insulation Material, Copper Conductor Material, Blue Insulation Color, 600 V AC, 0.97 in Overall Length, 0.170 in Insulation Length, 0.02 lb |
| Features | Vinyl-Insulated Locking Fork Terminal, Length 0.97 Inches, Width 0.29 Inches, Maximum Insulation 0.170, Bolt Hole #8, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated |
| Short Description | #22 to #18 AWG Sta-Kon Fork Terminal, Insulated, 600 VAC |
| Extra Long Description | ABB 14RB-8FL INS VINYL LKG FRK TRM |
| Special Features | Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring |
| Additional Information | |
| Minimum Conductor Size | #18 AWG |
| Maximum Conductor Size | #14 AWG |
| Insulated/Non-Insulated | Insulated |
| Standards Met | UL E9809; CSA |
| Insulation Length | 0.170 in |
| Made in USA | Yes |
| Package Quantity | 1000 CT; 10000 PK |
| Manufacturer Information | |
| Manufacturer’s Part Number | 14RB-8FL |
| Brand | Sta-Kon |
| Sub Brand | Sta-Kon |
| GTIN | 00786210806549 |
| UPC | 786210806549 |
| Taxonomies, Classifications, and Categories | |
| Category Description | TERMINALS |
| Type | Vinyl Insulated Locking Fork Terminal |
| Availability | Minimum Qty 100 |
| Status | Inactive |
| Packaging | Weight: 0.02 lb Weight per each: 0.02 Carton: 1000 Package: 10,000 |
| Uses, Certifications, and Standards | |
| Application | Wire Termination |
| Standard | UL E9809 / UL E9809 |
