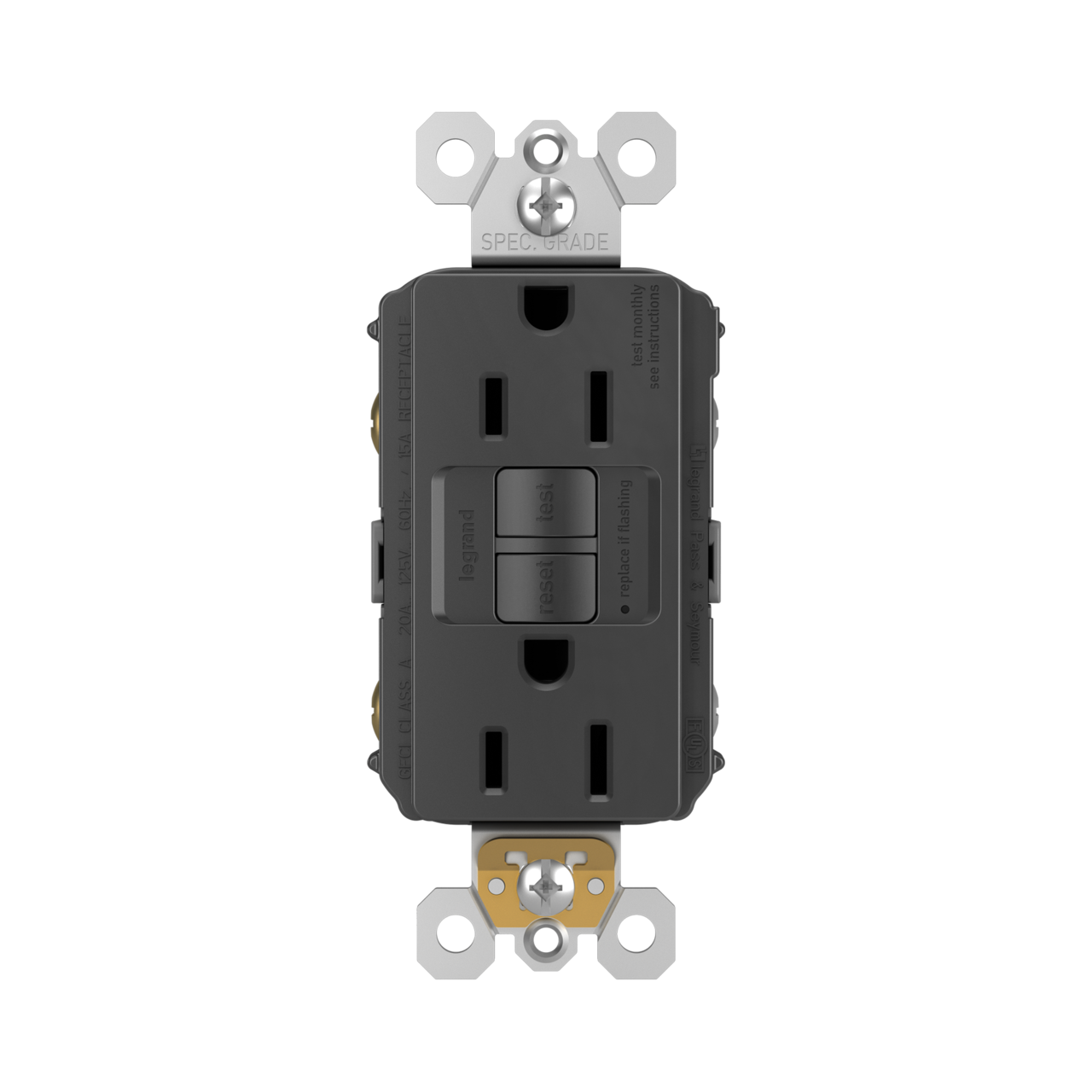

1597BK – Radiant Self Test Duplex Gfci 15A 125V BK
$
(per )
(Each)
$22.24
(Each)
$
(per 1)
Availability:
In Stock Locally
| Quick Specs | |
|---|---|
| Catalog Number | 1597BK |
| Manufacturer | Legrand – Pass & Seymour |
| Manufacturer’s Part Number | 1597BK |
| Description | RADIANT SELF TEST DUPLEX GFCI 15A 125V BK |
| Long Description | Duplex Receptacle, 15 A, 125 V, 2 Poles, #14 to #10 AWG Compatible Wire Size, Control Circuit Actuator, Back and Side Wired Connection, 60 Hz, 1.73 in Width, 4.20 in Height, Thermoplastic Material, Black, 0.025 sec Trip Time, 0.2800 lb |
| Extra Long Description | P&S 1597BK RADIANT SELF TST DUP GFC |
| Categories | |
| Category | Residential GFCI Devices |
| Classification | Gen Purpose Recept & Surge Pro |
| UPC / GTIN | 785007036404 / 00785007036404 |
| UNSPSC | 39121406 – Electrical receptacles |
| Weight per Unit | 0.275 lb |
| Features | |
| Current Rating | 15 A |
| Voltage Rating | 125 V |
| Poles | 2 |
| Amperage Rating | 15 |
| Interrupt Rating | 4 to 6 mA |
| Trip Time | 0.025 sec |
| Trip Type | 0.025 Second Nominal |
| Trip Range | 4 to 6 mA |
| Connection | Back and Side Wire |
| Actuator | Control Circuit |
| Number of Gangs | 1.0 |
| Frequency Rating | 60 Hz |
| Material, Color, and Finish | |
| Material | Thermoplastic |
| Color | Black |
| Finish | Matte |
| Dimensions and Weight | |
| Length | 1.03 in |
| Width | 1.73 in |
| Height | 4.20 in |
| Weight | 0.2800 lb |
| Descriptions | |
| Product Type | Duplex Receptacle |
| Short Description | 15 A, 125 V, Duplex Receptacle, Black, TR, Decorator |
| Special Features | 10 kA Short Circuit Rating; 20 Amp Feed-Thru Capacity |
| Features | Self-test GFCI, SafeLock™ Protection, Indicator light for test failure |
| Manufacturer Information | |
| Brand | Pass & Seymour |
| Manufacturer’s Part Number | 1597BK |
| GTIN | 00785007036404 |
| UPC | 785007036404 |
| Packaging | |
| Carton | 1 |
| Package Quantity | 1 CT; 10 PK |
| Unit Price | $22.04 (Each) |
| Standard Packaging | $220.40 (Per 10) |
| Uses and Certifications | |
| Mounting Type | Box |
| Receptacle Type | Duplex |
| Outlet Type | GFCI, Self-Test |
| Compatible Wire Size | #14 to #10 AWG |
| NEMA Rating | 5-15R |
| Application | Residential; Commercial |
| Standards Met | cULus Listed; UL Listed; FSUL; UL498; UL 94 V2; RoHS |
| Environmental Conditions | 95% Humidity, UL 94 V2 |
| Operating Temperature | -35°C to +66°C |
