1597TRI – Radiant Self Test TR Gfci 15A 125V Iv
$
(per )
(Each)
$17.85
(Each)
$
(per 1)
$
(per 10)
Availability:
In Stock Locally
| Catalog Number | 1597TRI |
|---|---|
| Vendor Code | PAS |
| Manufacturer | Legrand-Pass & Seymour |
| Manufacturer’s Part Number | 1597TRI |

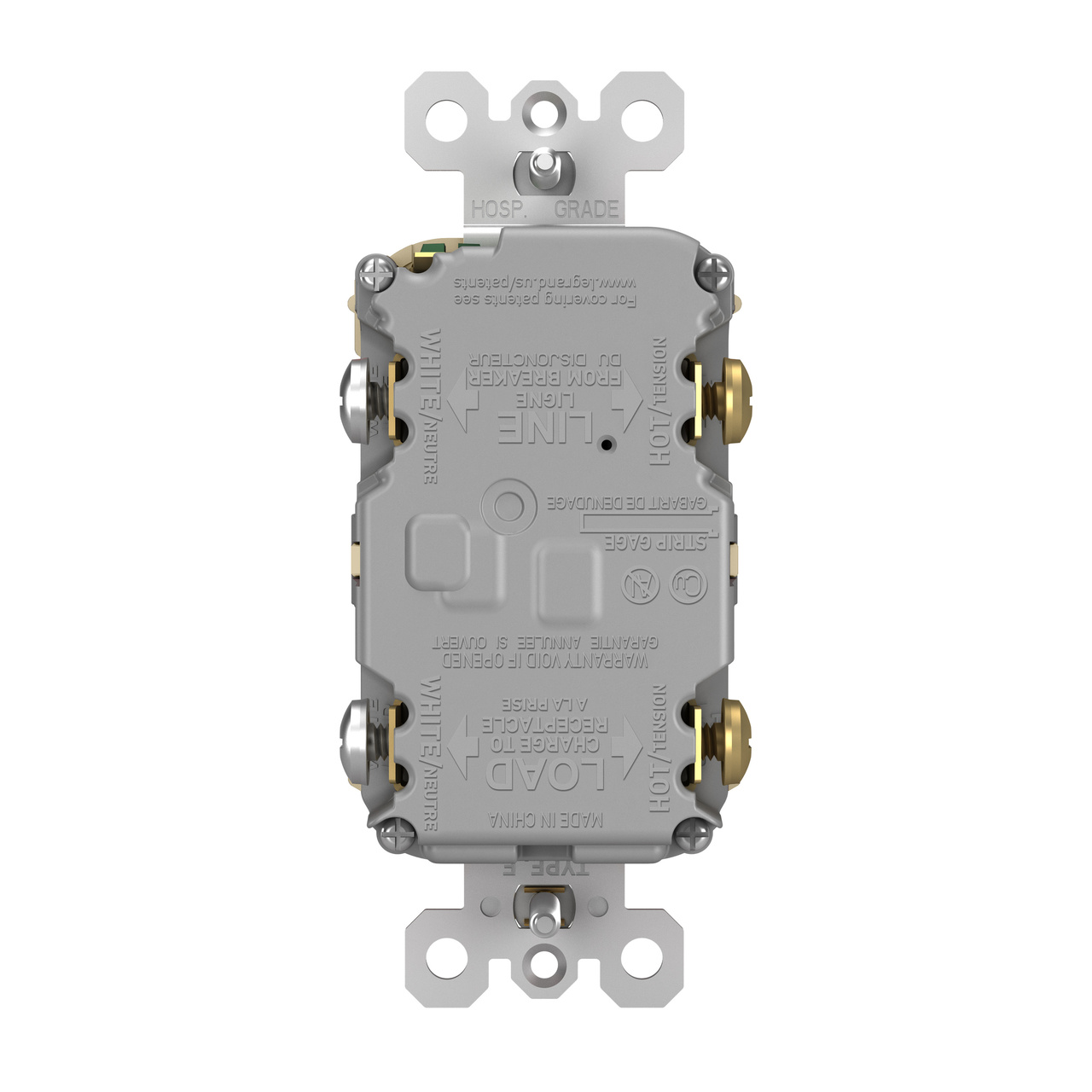

| Description | Radiant Self Test TR GFCI 15A 125V IV |
| Product Type | Self-Test Duplex Receptacle |
| Long Description | Self-Test Duplex Receptacle, 15 A, 125 V, 2 Poles, #14 to #10 AWG, Back and Side Wired, 60 Hz, Ivory, Tamper Resistant, 0.025 sec Trip Time, 0.2800 lb |
| Extra Long Description | P&S 1597TRI RADIANT SELF TEST TR GF |
| Short Description | 15 A, 125 V, Self-Test Duplex Receptacle, Ivory, GFCI, TR |
| Features | Radiant collection; self-tests every 3 seconds; SafeLock protection; tamper-resistant |
| Special Features | 10 kA Short Circuit Rating; 20 Amp Feed-Thru Capacity |
| Color | Ivory |
| Finish | Matte |
| Material | Thermoplastic |
| Amperage | 15 A |
| Voltage | 125 V |
| Poles | 2 |
| Trip Time | 0.025 sec |
| Trip Range | 4 to 6 mA |
| Frequency | 60 Hz |
| Connection | Back and Side Wire |
| Actuator Type | Control Circuit |
| Mounting Type | Box |
| Outlet Type | Tamper-Resistant, Self-Test, GFCI |
| Indoor/Outdoor | Indoor |
| Compatible Wire Size | #14 to #10 AWG |
| Dimensions (H x W x L) | 4.20 in x 1.73 in x 1.03 in |
| Weight | 0.2800 lb |
| UPC/EAN/GTIN | 785007035742 / 0785007035742 / 00785007035742 |
| Minimum Order Quantity | 1 |
| Unit Price | $17.85 |
| Standard Packaging | $178.50 (Per 10) |
| Stock – Nacogdoches | 31 |
| Stock – All Stores | 1,006 |
| Standards Met | UL, CULUS, cULus, UL Listed, FSUL, UL94 V2 |
| NEMA Rating | 5-15R |
| Operating Temperature | -35°C to +66°C |
| Environmental Conditions | 95% Humidity |
| Application | Residential; Commercial |
