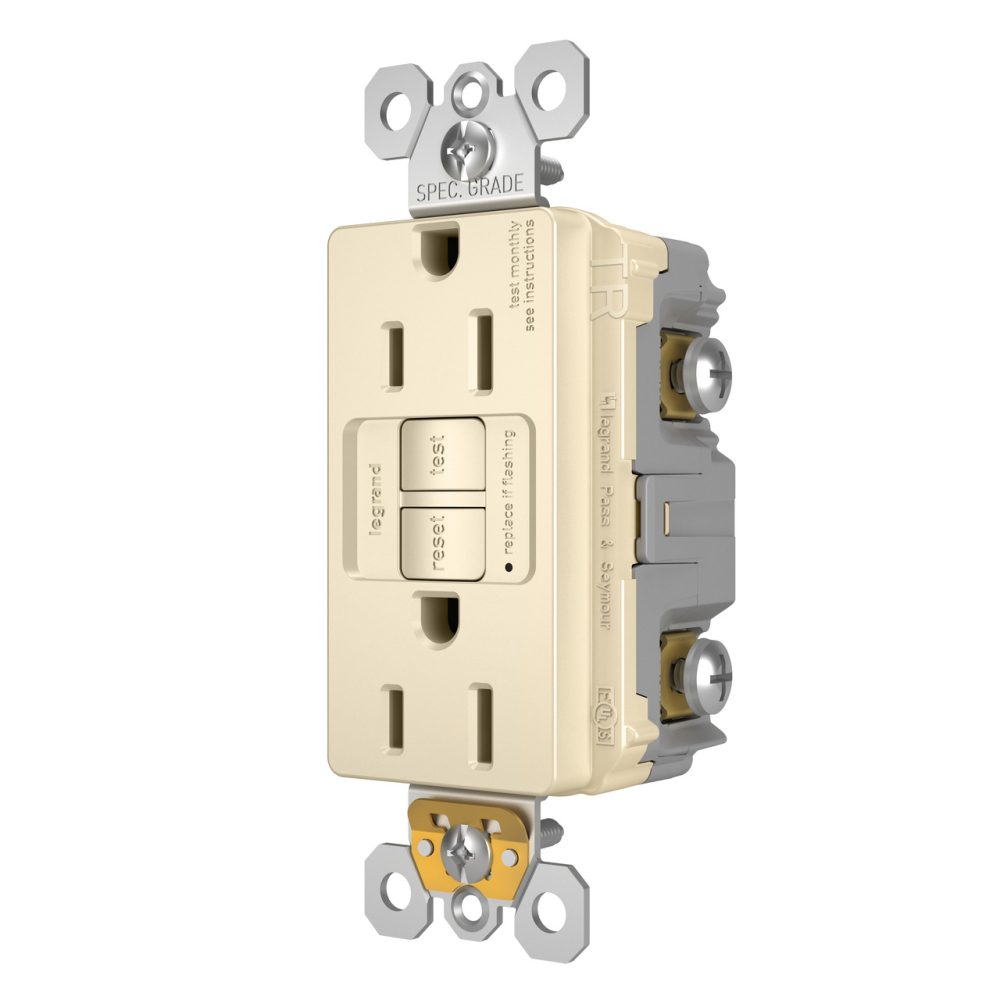

1597TRLA – Radiant Self Test TR Gfci 15A 125V La
$
(per )
(Each)
$17.85
(Each)
$
(per 1)
$
(per 10)
Availability:
In Stock Locally
| Catalog Number | 1597TRLA |
|---|---|
| Vendor Code | PAS |
| Manufacturer | Legrand-Pass & Seymour |
| Manufacturer’s Part Number | 1597TRLA |
| Description | Radiant Self Test TR GFCI 15A 125V LA |
| Product Type | Self-Test Duplex Receptacle |
| Long Description | Self-Test Duplex Receptacle, 15 A, 125 V, 2 Poles, #14 to #10 AWG Wire Size, Control Circuit Actuator, Back and Side Wired, 60 Hz, 1.73 in W, 4.20 in H, Thermoplastic, Light Almond, 0.025 sec Trip Time, Tamper Resistant, 0.2800 lb |
| Short Description | 15 A, 125 V, Self-Test Duplex Receptacle, Light Almond, GFCI, TR |
| Extra Long Description | P&S 1597TRLA RADIANT SELF TEST TR GFCI 15A 125V LA |
| Special Features | 10 kA Short Circuit Rating; 20 Amp Feed-Thru Capacity |
| Features | Radiant collection GFCI with self-test every 3 seconds, SafeLock Protection, indicator light, classic design |
| Categories | Gen Purpose Wiring Devices – Gen Purpose Recept & Surge Pro |
| Classification | Residential GFCI Devices |
| UPC/EAN/GTIN | 785007035797 / 0785007035797 / 00785007035797 |
| Weight per Unit | 0.275 lbs |
| Unit Price | $17.85 (Each) |
| Standard Packaging | $178.50 (Per 10) |
| Stock (Nacogdoches) | 0 |
| Stock (All Stores) | 802 |
| Current Rating | 15 A |
| Voltage Rating | 125 V |
| Poles | 2 |
| Connection | Back and Side Wire |
| Actuator Type | Control Circuit |
| Interrupt Rating | 4 to 6 mA |
| Trip Time | 0.025 sec |
| Material | Thermoplastic |
| Color | Light Almond |
| Finish | Matte |
| Height | 4.20 in |
| Width | 1.73 in |
| Length | 1.03 in |
| Mounting Type | Box |
| Number of Gangs | 1 |
| Outlet Type | GFCI, Self-Test, Tamper-Resistant |
| Indoor/Outdoor | Indoor |
| Operating Temperature | -35°C to +66°C |
| Environmental Conditions | 95% Humidity, UL 94 V2 |
| Receptacle Type | Self-Test Duplex |
| Application | Residential; Commercial |
| Standards Met | cULus, UL Listed, FSUL, UL 498, UL 94 V2 |
| NEMA Rating | 5-15R |
| Frequency Rating | 60 Hz |
| Packaging | 1 CT; 10 PK |
