1597TRWRW – Radiant Self Test TR WR Gfci 15A 125V WH
$
(per )
(Each)
$30.03
(Each)
$
(per 1)
$
(per 10)
Availability:
In Stock Locally
body {
font-family: Arial, sans-serif;
margin: 20px;
}
h1 {
color: #2c3e50;
}
table {
width: 100%;
border-collapse: collapse;
margin-top: 20px;
}
th, td {
border: 1px solid #ccc;
padding: 10px;
vertical-align: top;
text-align: left;
}
th {
background-color: #f4f4f4;
width: 25%;
}

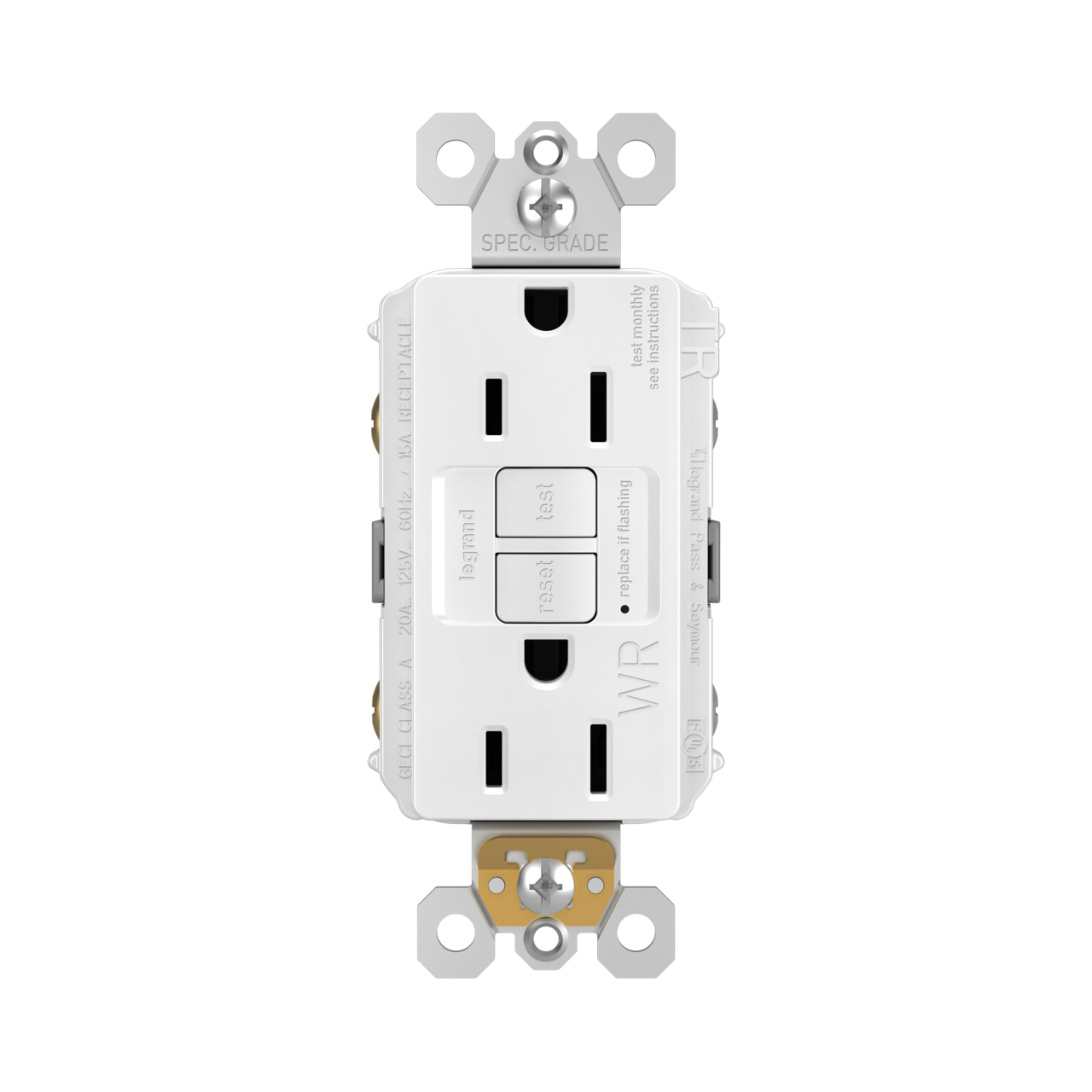

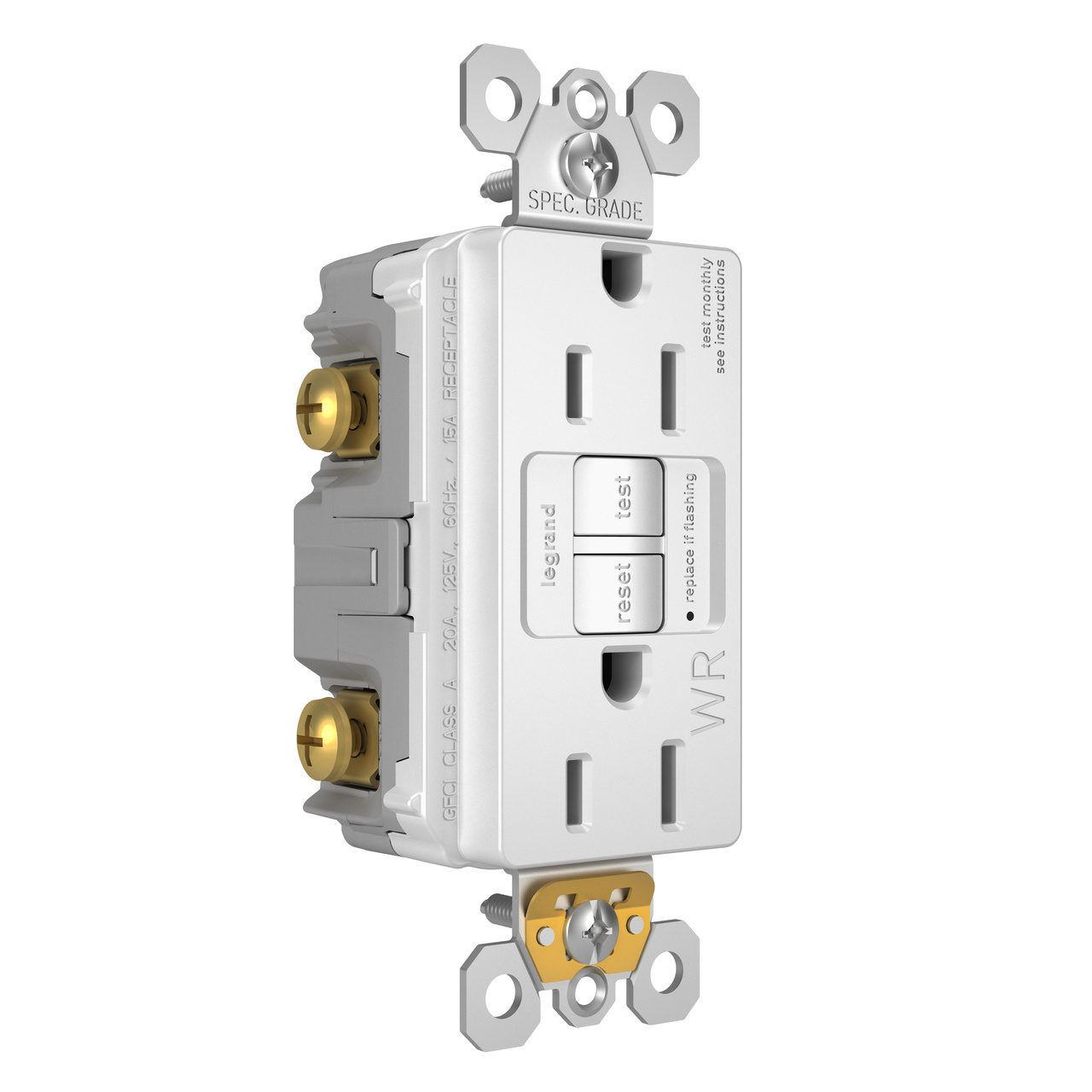

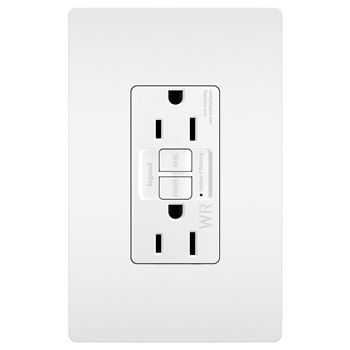

Legrand 1597TRWRW Radiant GFCI Receptacle
| Catalog Number | 1597TRWRW |
|---|---|
| Manufacturer | Legrand – Pass & Seymour |
| Manufacturer’s Part Number | 1597TRWRW |
| Description | Radiant Self-Test TR WR GFCI 15A 125V WH |
| Voltage Rating | 125 V |
| Amperage Rating | 15 A |
| Poles | 2 |
| Connection Type | Back and Side Wired |
| Compatible Wire Size | #14 to #10 AWG |
| Material | Thermoplastic |
| Color | White |
| Finish | Matte |
| Dimensions (H x W x L) | 4.20 in x 1.73 in x 1.03 in |
| Trip Time | 0.025 sec |
| Trip Range | 4 to 6 mA |
| Short Circuit Rating | 10 kA |
| Feed-Thru Capacity | 20 Amp |
| NEMA Rating | 5-15R |
| Frequency | 60 Hz |
| Environmental Conditions | 95% Humidity, UL 94 V2 |
| Operating Temperature | -35°C to +66°C |
| Resistance | Weather Resistant |
| Indoor/Outdoor | Outdoor |
| Outlet Type | GFCI, Self-Test, Tamper-Resistant, Weather-Resistant |
| Standards | cULus Listed, UL Listed, FSUL, UL 498 |
| Applications | Residential; Commercial |
| Weight | 0.275 lbs |
| UPC | 785007036466 |
| Features |
|
Reviews
There are no reviews yet.
