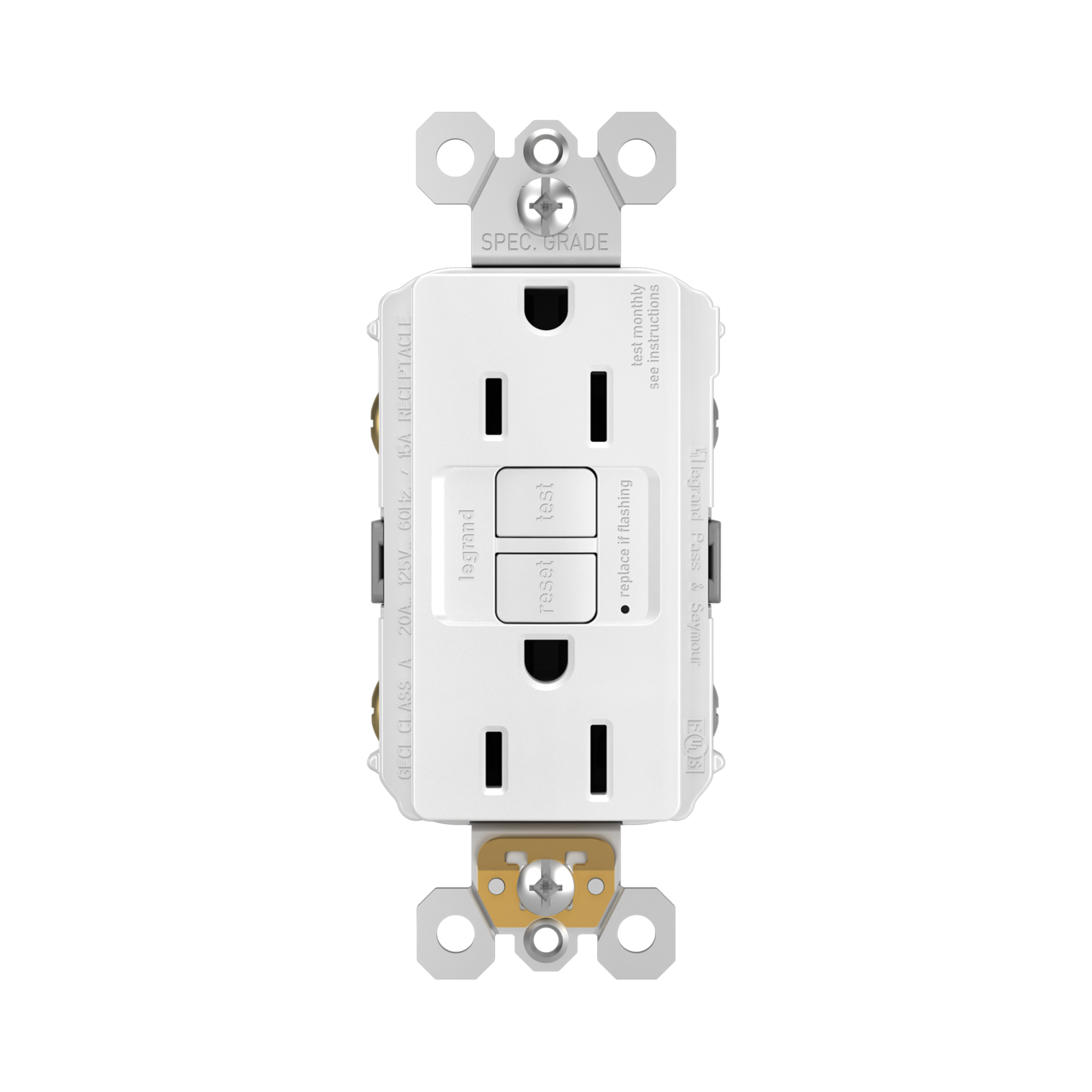

1597W – Radiant Self TST Duplex Gfci 15A 125V WH
$
(per )
(Each)
$22.60
(Each)
$
(per 1)
Availability:
In Stock Locally
| Quick Specs | |
|---|---|
| Catalog Number | 1597W |
| Vendor Code | PAS |
| Manufacturer | Legrand-Pass & Seymour |
| Manufacturer’s Part Number | 1597W |
| Description | Radiant Self-Test Duplex GFCI 15A 125V White |
| Long Description | Self-Test Duplex Receptacle, 15 A, 125 V, 2 Poles, #14 to #10 AWG Compatible Wire Size, Control Circuit Actuator, Back and Side Wired Connection, 60 Hz, White, 0.025 sec Trip Time |
| Extra Long Description | P&S 1597W RADIANT SELF TST DUP GFCI |
| Categories | |
| Category | Residential GFCI Devices |
| Classification | Gen Purpose Wiring Devices – Gen Purpose Recept & Surge Pro |
| UNSPSC | 39121406 – Electrical Receptacles |
| UPC / EAN / GTIN | 785007035827 / 0785007035827 / 00785007035827 |
| Material, Color, and Finish | |
| Material | Thermoplastic |
| Color | White |
| Finish | Matte |
| Features | |
| Current Rating | 15 A |
| Voltage Rating | 125 V |
| Poles | 2 |
| Amperage Rating | 15 |
| Connection | Back and Side Wire |
| Wire Size | #14 to #10 AWG |
| Actuator | Control Circuit |
| Trip Time | 0.025 Seconds |
| Trip Range | 4 to 6 mA |
| Special Features |
Self-Test every 3 seconds, SafeLock™ Protection, 10 kA Short Circuit Rating, 20A Feed-Thru Capacity |
| Dimensions and Weight | |
| Height | 4.20 in |
| Width | 1.73 in |
| Length | 1.03 in |
| Weight | 0.2800 lb |
| Outlet Details | |
| Outlet Type | GFCI, Self-Test |
| Receptacle Type | Self-Test Duplex |
| Number of Gangs | 1 |
| Mounting Type | Box |
| NEMA Rating | 5-15R |
| Frequency Rating | 60 Hz |
| Indoor/Outdoor | Indoor |
| Uses, Certifications, and Standards | |
| Application | Residential; Commercial |
| Standards Met | UL Listed, cULus, FSUL, UL498, UL 94V2, Federal Specifications |
| Environmental Conditions | 95% Humidity, UL 94 V2 |
| Operating Temperature | -35°C to +66°C |
| Packaging | |
| Minimum Order Quantity | 1 |
| Unit Price | $22.60 (Each) |
| Standard Packaging | $226.00 (Per 10) |
| Package Quantity | 1 CT; 10 PK |
| Weight per Unit | 0.275 lbs |
| Manufacturer Information | |
| Brand | Pass & Seymour |
| Manufacturer’s Part Number | 1597W |
| GTIN | 00785007035827 |
| UPC | 785007035827 |
