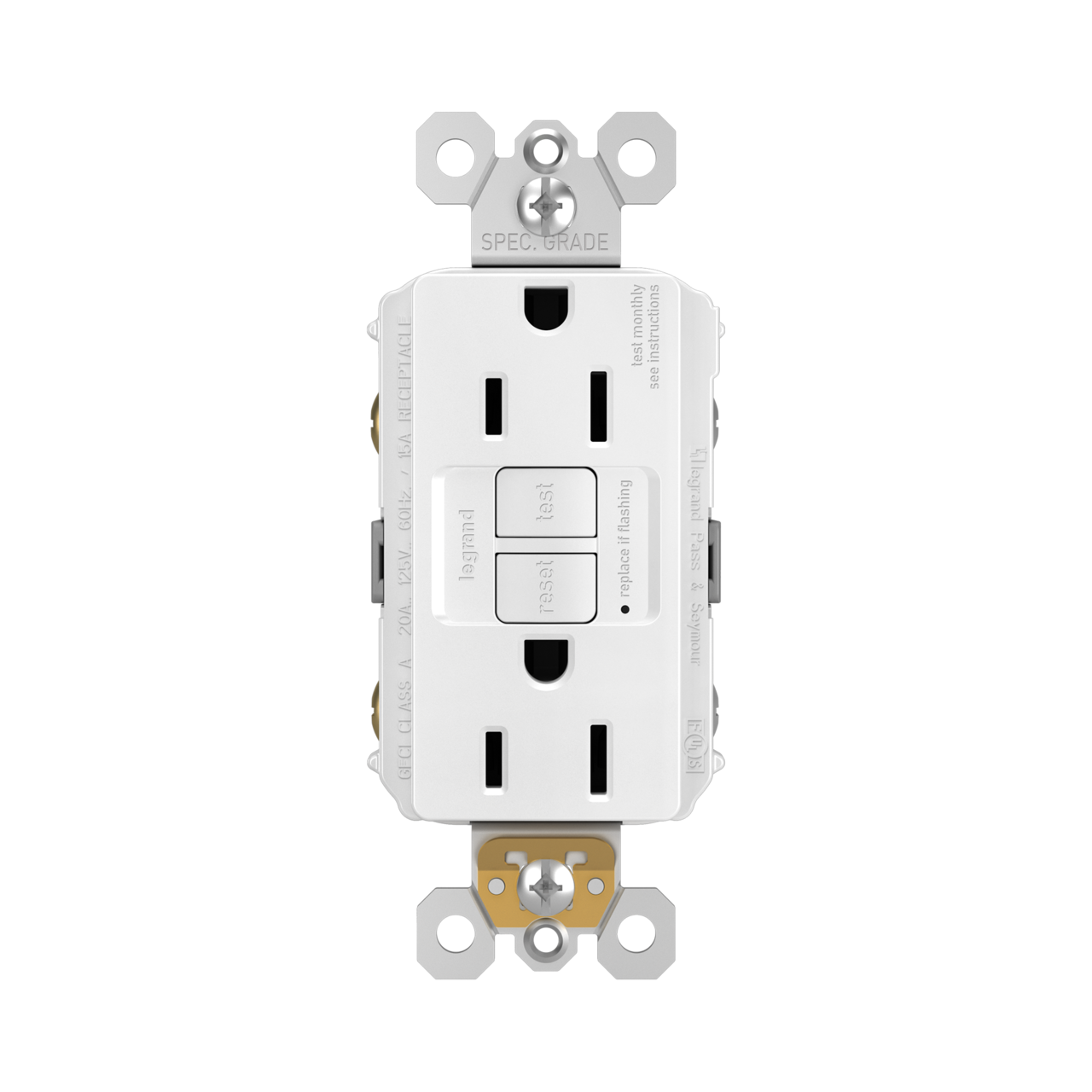

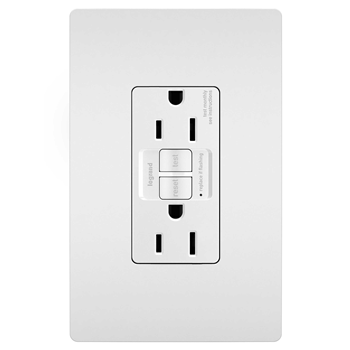

1597W – Radiant Self TST Duplex Gfci 15A 125V WH
$
(per )
(Each)
$22.60
(Each)
$
(per 1)
$
(per 10)
Availability:
In Stock Locally
| Section | Details |
|---|---|
| Catalog Number | 1597W |
| Vendor Code | PAS |
| Manufacturer | Legrand-Pass & Seymour |
| Manufacturer’s Part Number | 1597W |
| Description | Radiant Self TST Duplex GFCI 15A 125V WH |
| Long Description | Self-Test Duplex Receptacle, 15 A, 125 V, 2 Poles, #14 to #10 AWG Compatible Wire Size, Control Circuit Actuator, Back and Side Wired Connection, 60 Hz, 1.73 in Width, 4.20 in Height, Thermoplastic Material, White, 0.025 sec Trip Time, 0.2800 lb |
| Categories | Gen Purpose Wiring Devices – Gen Purpose Recept & Surge Pro |
| Classification | Residential GFCI Devices |
| UNSPSC | 39121406 – Electrical Receptacles |
| UPC/EAN/GTIN | 785007035827 / 0785007035827 / 00785007035827 |
| Weight per Unit | 0.275 lbs |
| Price (Each) | $22.60 |
| Price (Per 10) | $226.00 |
| Stock (Nacogdoches) | 125 |
| Stock (All Stores) | 4,541 |
| Current Rating | 15 A |
| Voltage Rating | 125 V |
| Poles | 2 |
| Interrupt Rating | 4 to 6 mA |
| Connection | Back and Side Wire |
| Actuator | Control Circuit |
| Material | Thermoplastic |
| Color | White |
| Finish | Matte |
| Dimensions (H x W x L) | 4.20 in x 1.73 in x 1.03 in |
| Trip Time | 0.025 sec |
| Mounting Type | Box |
| Outlet Type | GFCI, Self-Test |
| Special Features | 10 kA Short Circuit Rating, 20 Amp Feed-Thru Capacity |
| Application | Residential; Commercial |
| Indoor/Outdoor | Indoor |
| Operating Temperature | -35°C to +66°C |
| Environmental Conditions | 95% Humidity, UL 94 V2 |
| Standards Met | UL, CULUS, cULus, UL Listed, FSUL, UL 94 v2, UL498 |
| Receptacle Type | Self-Test Duplex |
| Compatible Wire Size | #14 to #10 AWG |
| Frequency Rating | 60 Hz |
| NEMA Rating | 5-15R |
| Trade Size / Amperage | 15.0 A |
| Package Quantity | 1 CT; 10 PK |
| Brand | Pass & Seymour |
| Type | Outlet |
