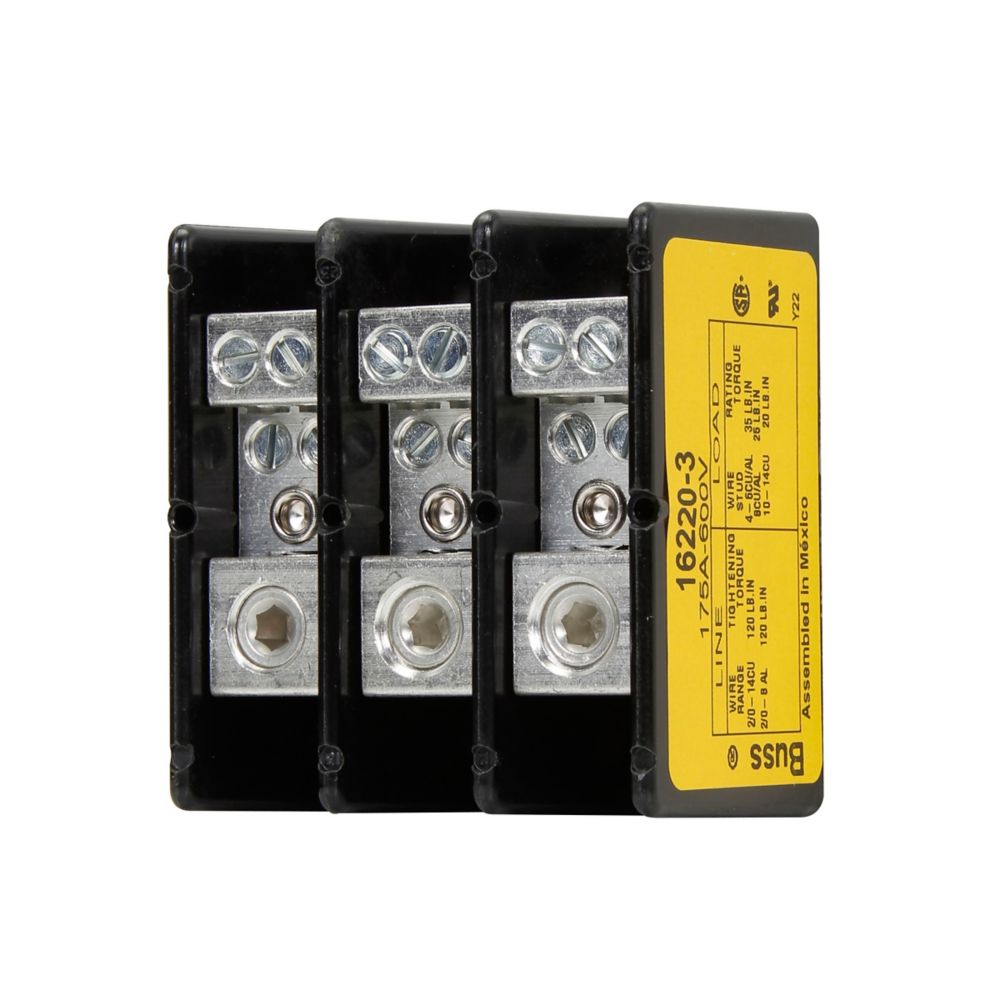

162203 – 175A 600V 3P Term Block
$
(per )
(Each)
$162.20
(Each)
$
(per 1)
$
(per 24)
Availability:
In Stock Locally
| Specification | Details |
|---|---|
| Catalog Number | 162203 |
| Vendor Code | BUS |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | 16220-3 |
| Description | Terminal Block, 3 Poles, 175 A, 600 V AC/DC, Thermoplastic housing |
| Current Rating | 175 Amps |
| Voltage Rating | 600 V AC/DC |
| Material | Thermoplastic |
| Color | Black |
| Dimensions (L x W x H) | 2.70 in x 1.75 in x 2.88 in |
| Weight | 0.44 lb (approx 0.45 lbs per unit) |
| Operating Temperature Range | -4 °F to +248 °F (-20 °C to +120 °C) |
| Short Circuit Rating | 10 kA |
| Standards & Certifications | UL 1059 Recognized, CSA Certified, RoHS Compliant |
| Application | Electrical assemblies, control panels, OEM electrical systems |
| Packaging | Sold individually (min qty: 1); standard packaging 24 per carton |
| Price | $162.20 each |
| UPC/GTIN | 051712149273 / 00051712149273 |
| Special Features | UL Recognized to UL 1059, flexible port configurations, optional safety covers |
