1876VB0X – Recp Single 20A 250V 2P3W Swire Iv

$
(per )

(Each)

$9.54

(Each)

$

(per 1)

$

(per 10)

Availability:

In Stock Locally

Description

$9.54

Category: Brand:

Description

Product Type Single Receptacle

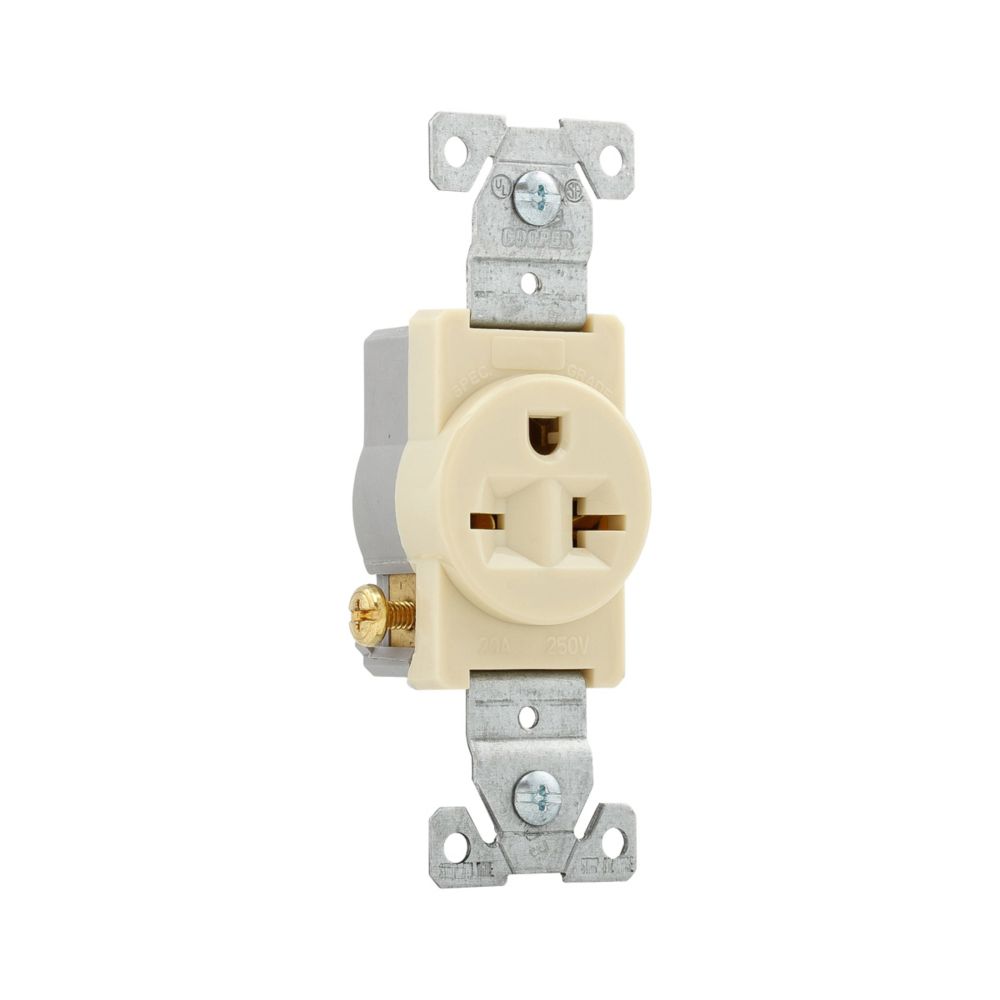

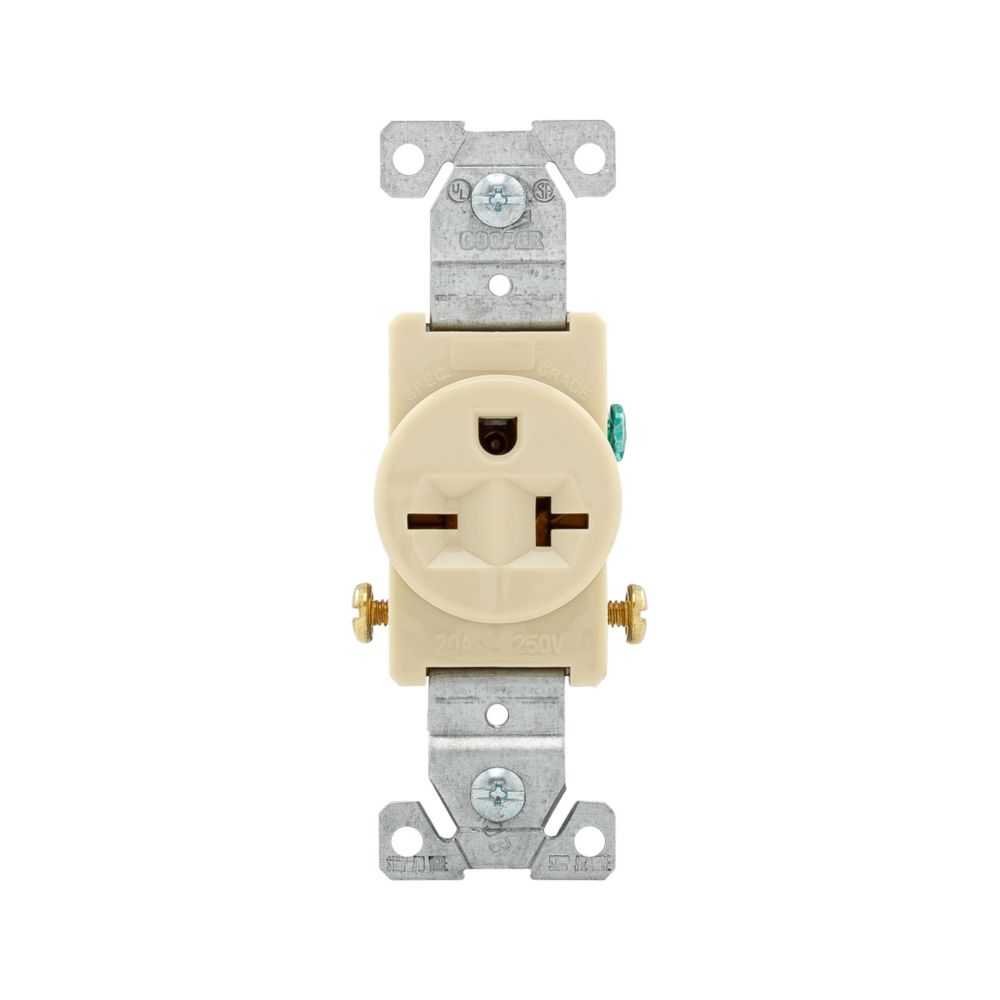

Description RECP SINGLE 20A 250V 2P3W SWIRE IV
Long Description Single Receptacle, 2 Poles, 1 Gang, 3 Wires, 20 A, 250 V ac, 1.30 in (W) x 4.19 in (H), 0.82 in Thickness, Nylon Material, Ivory, #10 AWG;#12 AWG Wire Size, -20 °C Operating Temperature, +60 °C Operating Temperature, Impact and Chemical Resistant
Features Commercial Specification Grade Straight Blade Receptacles – 20A-250V, NEMA 6-20R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.
Short Description Single Receptacle, 2 Pole, 1 Gang, 20 A, 250VAC
Special Features Combines Safe, Rugged, Reliable Performance with Ease-of-Installation
Extra Long Description EWD 1876V-BOX Recp Single 20A 250V
Receptacle Type Commercial Grade Straight Blade Receptacle
Dimensions 1.30 in (W) x 4.19 in (H); 33 mm (W) x 106.4 mm (H)
Thickness 0.82 in; 20.8 mm
Minimum Operating Temperature -20 °C
Maximum Operating Temperature +60 °C
Resistance Properties Impact and Chemical Resistant
Package Quantity 1 ct
Standards Met NAFTA Compliant; RoHS Compliant; cULus Listed; Federal Specification Certified
Brand Arrow Hart
Manufacturer’s Part Number 1876V-BOX
GTIN 00032664752599
UPC 032664752599
Category Description Commercial receptacles
Type Commercial specification grade
Weight per each 0.158 lbs
Carton 10
Package 100
NEMA Rating NEMA 6-20R
Application Commercial
Standard cULus Listed, NOM, Federal Specification Classification 6233 01, RoHS Compliant
