(Each)
$9.54
(Each)
(per 1)
(per 100)
In Stock Locally
$9.54
| Catalog Number | 1876WB0X |
|---|---|
| Vendor Code | EWD |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | 1876W-BOX |

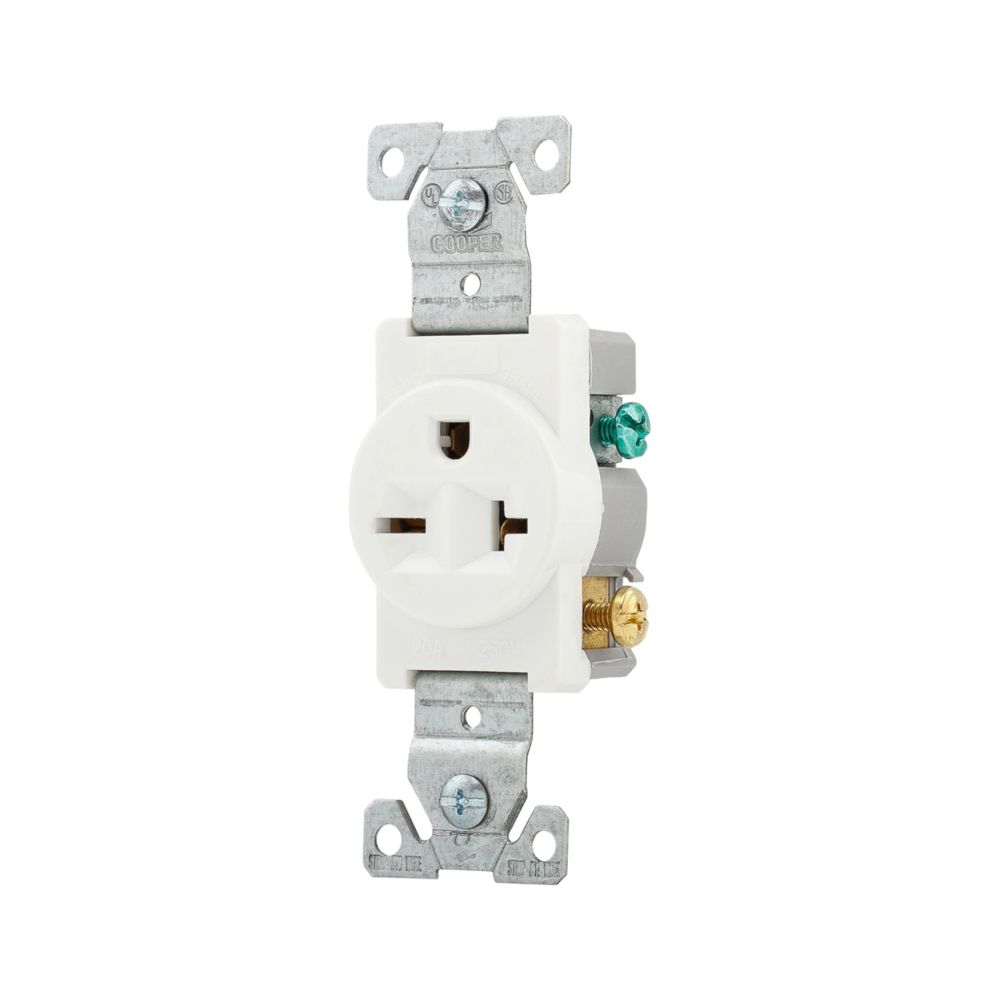

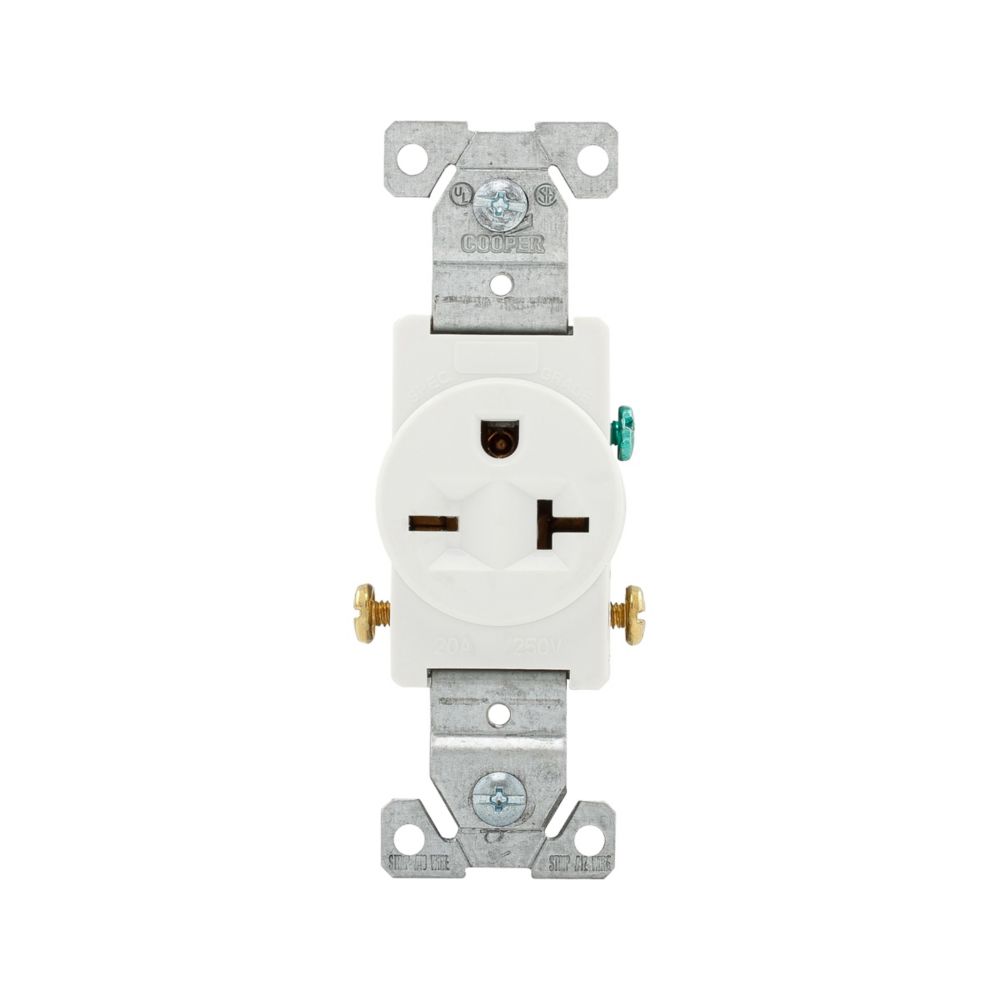

| Description | RECP SINGLE 20A 250V 2P3W SWIRE WH |
| Long Description | Single Receptacle, 20 A, 250 V ac, 2 Poles, 3 Wires, #14 to #10 AWG Compatible Wire Size, Side Wire Connection, Wall Mount, Nylon (Top); PVC (Bottom) Material, White, Corrosion Resistant; Tamper Resistant |
| Short Description | 20 A, 250 VAC, Single Receptacle, White, Side Wire Connection |
| Categories | Gen Purpose Wiring Devices – Gen Purpose Recept & Surge Pro |
| Classification | Commercial Receptacles |
| UNSPSC | 39121406 – Electrical receptacles |
| UPC/GTIN | 032664752582 / 00032664752582 |
| Current Rating | 20 A |
| Voltage Rating | 250 V ac |
| Poles | 2 |
| Wires | 3 |
| Wire Size | #14 to #10 AWG |
| Connection Type | Side Wire |
| Mounting Type | Wall Mount |
| Receptacle Type | Single |
| Material | Nylon (Top); PVC (Bottom) |
| Color | White |
| Resistance Properties | Corrosion Resistant; Tamper Resistant |
| Special Features | Flammability Rating UL 94 V-2; Package Type Box |
| Dimensions (L x W x H) | 1.31 in x 0.83 in x 4.19 in |
| NEMA Rating | NEMA 6-20R |
| Standards Met | UL 498; RoHS/NAFTA Compliant; NOM; cULus Listed; Federal Specification Classification 6233 01 |
| Application | Commercial |
| Package Quantity | 1 ct |
| Weight per Unit | 0.162 lbs |
| Unit Price | $9.54 (Each) |
| Standard Packaging (100) | $954.00 |
| Stock Availability | Nacogdoches: 65, All Stores: 4,440 |
| Brand | Eaton Wiring Devices / Arrow Hart |
