(Each)
$123.88
(Each)
(per 1)
In Stock Locally
$123.88
| Field | Value |
|---|---|
| Catalog Number | 18RA10 |
| Vendor Code | TAB |
| Manufacturer | Sta-Kon |
| Manufacturer’s Part Number | 18RA-10 |

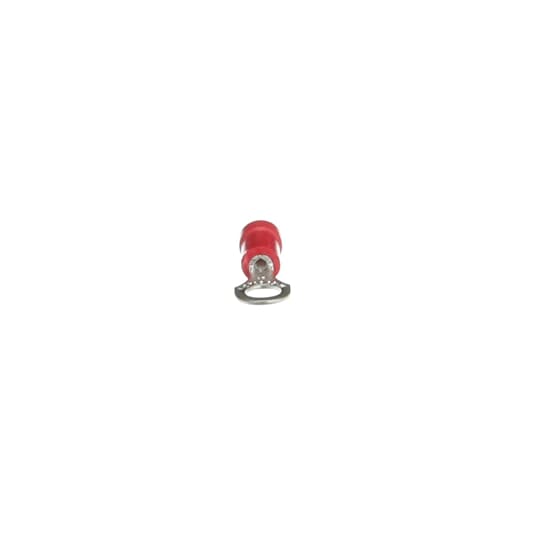

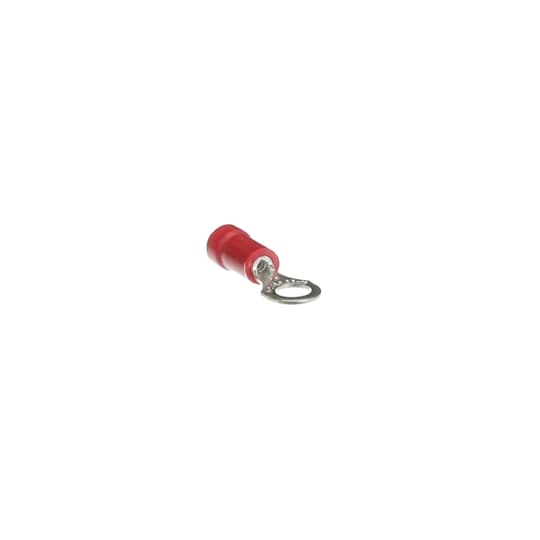

| Description | 22-16 Ins Ring Terminal |
| Long Description | Vinyl-Insulated Ring Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .150, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated |
| Extra Long Description | ABB 18RA-10 INS VINYL RING TERM 22- |
| Short Description | 22-16 INS RING TERMINAL |
| Product Type | Ins Vinyl Ring Term 22-16 NO10 Red |
| Category | Solderless Connectors – Small Terminals & Connectors |
| Classification | Terminals |
| UNSPSC | 39121432 – Electrical terminals |
| UPC/EAN/GTIN | 786210800929 / 5414363138440 / 00786210800929 |
| Weight per Unit | 0.003 lbs/each |
| Price (Each) | $1.24 |
| Carton Price | $123.88 (Per 100) |
| Minimum Order Quantity | 100 |
| Stock – Nacogdoches | 0 |
| Stock – All Stores | 1,900 |
| Wire Size | 22-16 AWG |
| Voltage Rating | 600 V |
| Material | Copper |
| Color | Red |
| Finish | Tin Plated |
| Length | 0.97 in |
| Width | 0.31 in |
| Max Insulation Diameter | 0.150 in |
| Bolt Hole Size | #10 |
| Type | Vinyl Insulated Ring Terminal |
| Special Features | Self-insulated PVC sleeve, extra length for protection, brazed seam barrel, serrated for high pull-out value |
| Brand | Sta-Kon |
| GTIN | 00786210800929 |
| UPC | 786210800929 |
| Standard | UL E9809 |
| Package Quantity | 100 |
| Weight per Each | 0.003 lbs |
