(Each)
$89.63
(Each)
(per 1)
(per 2000)
In Stock Locally
$89.63
| Category | Detail |
|---|---|
| Catalog Number | THHN12S0LGN500 |
| Vendor Code | COP |
| Manufacturer | Copper |
| Manufacturer Part Number | 11591501 |

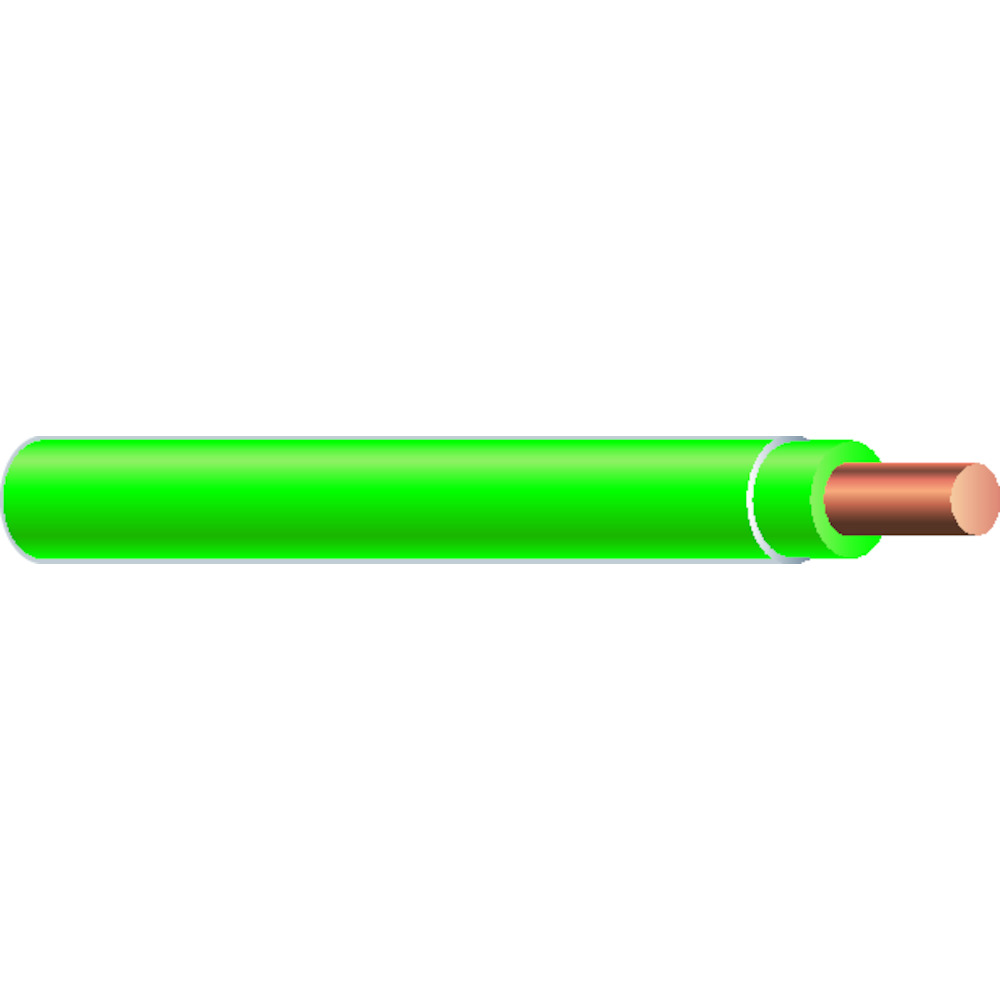

| Description | THHN 12 SOL GREEN 500′ |
| Long Description | 600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath, Heat, Moisture, Gasoline and Oil Resistant II. Rated THHN and THWN. Also rated AWM. |
| Categories | Copper Building Wire – THHN-T90-Sol (Solid) |
| Classification | Building Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 032886224409 / 00032886224409 |
| Weight per unit | 0.023 lbs/ft |
| Minimum Order Quantity | 500 Feet |
| Unit Price | $0.18 (Per Foot) |
| Reel Price | $89.63 (Per 500 Feet) |
| Standard Packaging Price | $358.52 (Per 2,000 Feet) |
| Current Rating | 20 A |
| Conductor Size | #12 AWG |
| Voltage Rating | 600 V |
| Number of Conductors | 1 |
| Color | Green (Insulation) |
| Conductor Material | Annealed Copper |
| Jacket Material | Nylon |
| Insulation Material | PVC |
| Overall Length | 500 ft |
| Length | 500 ft |
| Product Type | THHN Copper Building Wire |
| Short Description | THHN Copper Building Wire, #12 AWG, Solid, Yellow, 500 |
| Extra Long Description | SWC 11591501 THHN 12 Sol Cu Gn 500S |
| Special Features | Heat Resistant; Moisture Resistant; SIMpull® Technology |
| Outside Diameter | 119 mil |
| Insulation Thickness | 15 mil |
| Maximum Operating Temp | 90 °C |
| Standards Met | RoHS Compliant; ASTM B3, B8, B787; A-A-59544; NFPA 70; NEMA WC-70; UL 83/758/1063/1581; CSA C22.2; UL Listed US and Canada |
| Made in USA | Yes |
| Media Available | Yes |
| Brand | Copper |
| GTIN | 00032886224409 |
| UPC | 032886224409 |
| Category Description | Building Wire |
| Type | THHN |
| Availability – Min Qty | 500 |
| Packaging Type | Spool |
| Weight (per 1,000 ft) | 23 lb/mft |
| Weight per foot | 0.023 lbs/ft |
| Carton Quantity | 500 |
| Package Quantity | 2,000 |
| Applications | Building; Commercial; Industrial |
