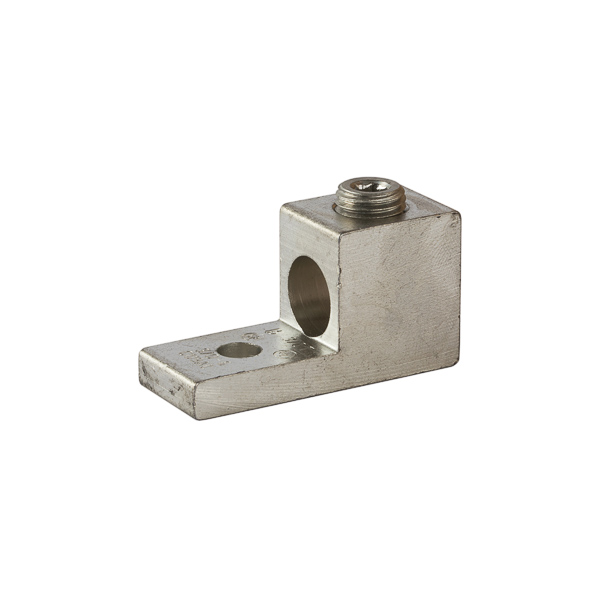

2.0T – 1/0 Al/Cu 2 Conductor Mechanical Lug
$
(per )
(Each)
$2.42
(Each)
$
(per 1)
$
(per 25)
Availability:
In Stock Locally
| Attribute | Value |
|---|---|
| Catalog Number | 2.0T |
| Vendor Code | NSI |
| Manufacturer | NSI |
| Manufacturer’s Part Number | 2-0T |
| Description | 1/0 Al/Cu 2 Conductor Mechanical Lug |
| Long Description | Mechanical Connector, #14 AWG Conductor Size, 1/0 AWG Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 2 Conductors, +90 °C Operating Temperature, 1.47 in Overall Length, Screw Terminal, 600 V, 0.08 lb/EA |
| Short Description | 2/0 AL/CU 2 Conductor Mechanical Connector, Non-Insulated, 1.47 in L, 600 V |
| Classification | Split Bolts |
| Categories | Solderless Connectors – Large Terminals & Connectors |
| UNSPSC | 39121613 – Grounding devices or assemblies |
| UPC / EAN / GTIN | 662381001207 / 6623810012076 / 00662381001207 |
| Weight per Unit | 0.08 lbs (but note weight per each listed as 2 lbs—likely a data error or packaging weight) |
| Minimum Order Quantity | 1 |
| Unit Price | $2.42 (Each) |
| Standard Packaging Price | $60.45 (Per 25) |
| Stock – Nacogdoches | 0 |
| Stock – All Stores | 1,349 |
| Product Type | Mechanical Connector |
| Special Features | Versatile and reusable set screw connectors made of 6061T-6 aluminum alloy; tin plated for low contact resistance |
| Features | Screw terminal; suitable for copper and aluminum conductors; rated 600 volts; temperature rating 90 °C |
| Additional Information | Maximum Voltage: 600 V; Standards: UL Listed 486A, 486B; cULus; CSA Certified; Minimum Conductor Size: #14 AWG; Max Conductor Size: 1/0 AWG; Stud Size: 17/64 in; Non-insulated; Max Operating Temp: +90 °C |
| Warranty | 1 Year |
| Brand | NSI Industries |
| Sub Brand | NSI |
| Category Description | SPLIT BOLTS |
| Type | Aluminum Double Lug |
| Packaging | Weight per each: 0.08 lb; Carton: 1; Package Quantity: 25 |
| Standards | cULus |
| Application | Wire Termination |
