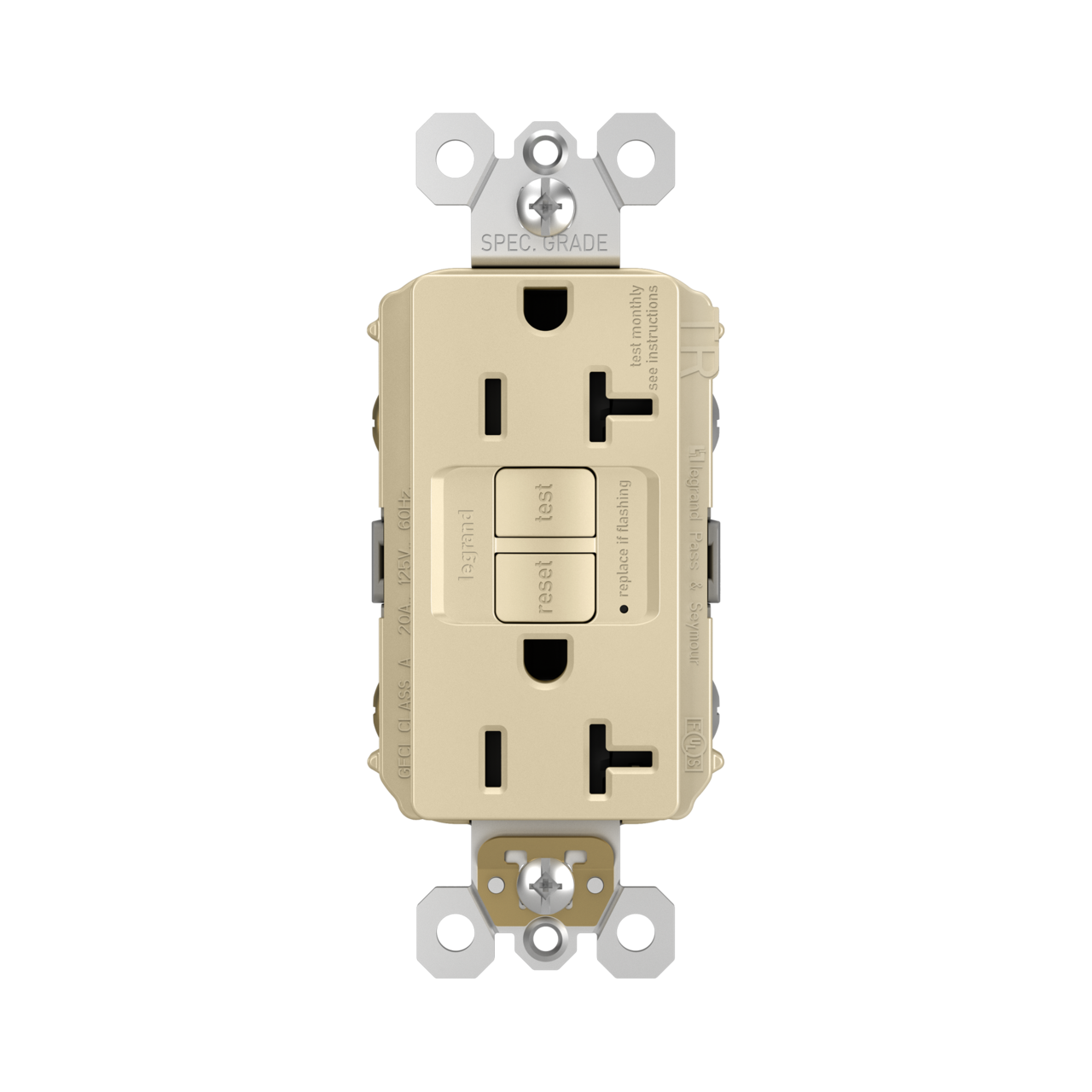

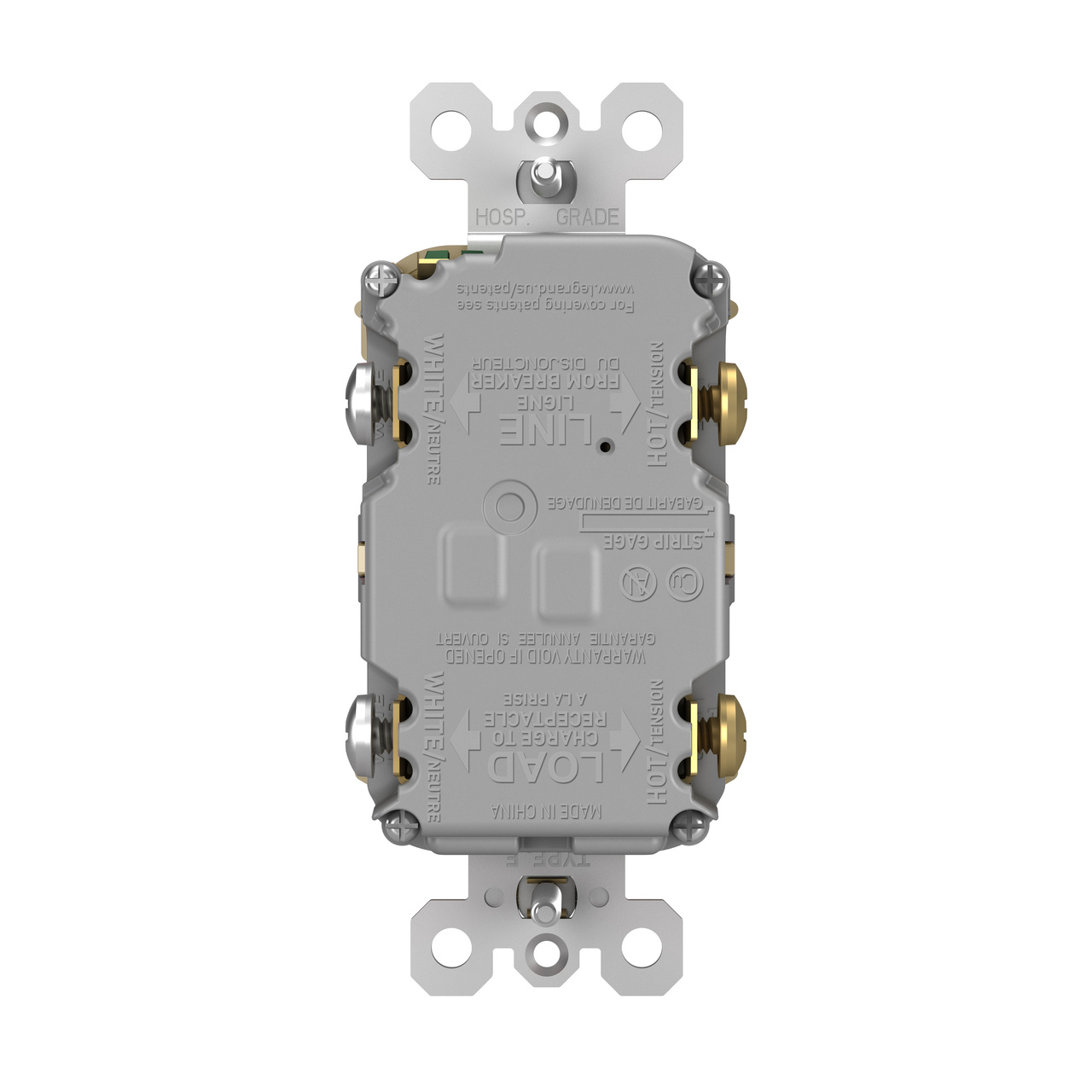

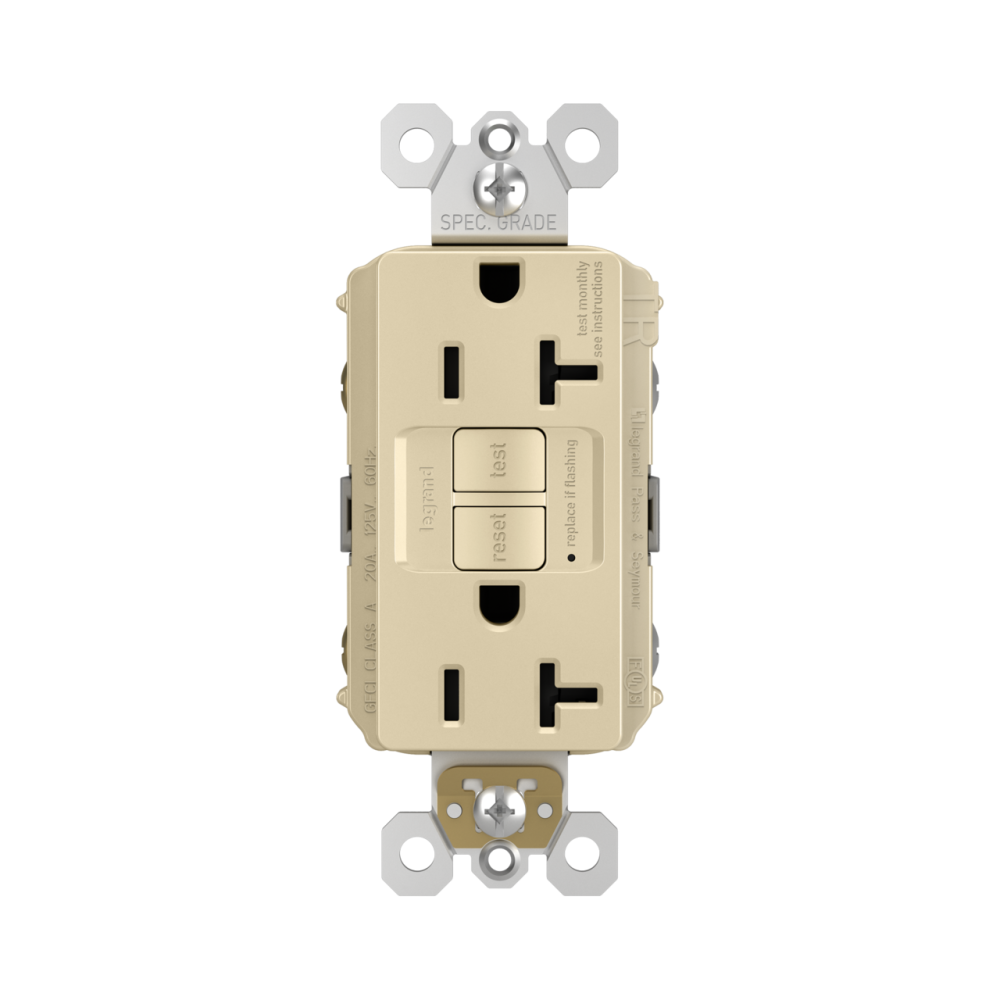

2097TRI – Radiant Self Test TR Gfci 20A 125V Iv
$
(per )
(Each)
$24.08
(Each)
$
(per 1)
$
(per 10)
Availability:
In Stock Locally
| Catalog Number | 2097TRI |
|---|---|
| Vendor Code | PAS |
| Manufacturer | Legrand-Pass & Seymour |
| Manufacturer’s Part Number | 2097TRI |
| Description | Radiant Self-Test TR GFCI 20A 125V Ivory |
| Product Type | Self-Test Duplex Receptacle |
| Long Description | Self-Test Duplex Receptacle, 20 A, 125 V, 2 Poles, #14 to #10 AWG, Back and Side Wired, 60 Hz, 1.73 in Width, 4.20 in Height, Thermoplastic, Ivory, 0.025 sec Trip Time, Tamper Resistant, 0.2800 lb |
| Short Description | 20 A, 125 V, Self-Test Duplex Receptacle, Ivory, GFCI, TR |
| Extra Long Description | P&S 2097TRI Radiant Self-Test TR GFCI 20A 125V IV |
| Special Features | 10 kA Short Circuit Rating; 20 Amp Feed-Thru Capacity |
| Features | Radiant collection; self-test every 3 seconds; SafeLock™ Protection; Indicator light for failure |
| Current Rating | 20 A |
| Voltage Rating | 125 V |
| Frequency | 60 Hz |
| Amperage Rating | 20 |
| Interrupt Rating | 4 to 6 mA |
| Trip Time | 0.025 sec |
| Trip Range | 4 to 6 mA |
| Poles | 2 |
| Receptacle Type | Self-Test Duplex |
| Outlet Type | Self-Test, Tamper-Resistant, GFCI |
| Connection | Back and Side Wire |
| Wire Size | #14 to #10 AWG |
| Material | Thermoplastic |
| Color | Ivory |
| Finish | Matte |
| Mounting Type | Box |
| Number of Gangs | 1 |
| Indoor/Outdoor | Indoor |
| Dimensions (H x W x L) | 4.20 in x 1.73 in x 1.03 in |
| Weight per Unit | 0.275 lb |
| UPC | 785007036275 |
| GTIN | 00785007036275 |
| NEMA Rating | 5-15R |
| Operating Temperature | -35°C to +66°C |
| Environmental Conditions | 95% Humidity, UL 94 V2 |
| Standards Met | cULus Listed, UL Listed, fsUL Listed, UL498, UL 94 V2, Federal Specifications |
| Application | Residential; Commercial |
| Price | $24.08 (Each) |
| Standard Packaging | $240.80 (Per 10) |
| Stock – Nacogdoches | 20 |
| Stock – All Stores | 634 |
