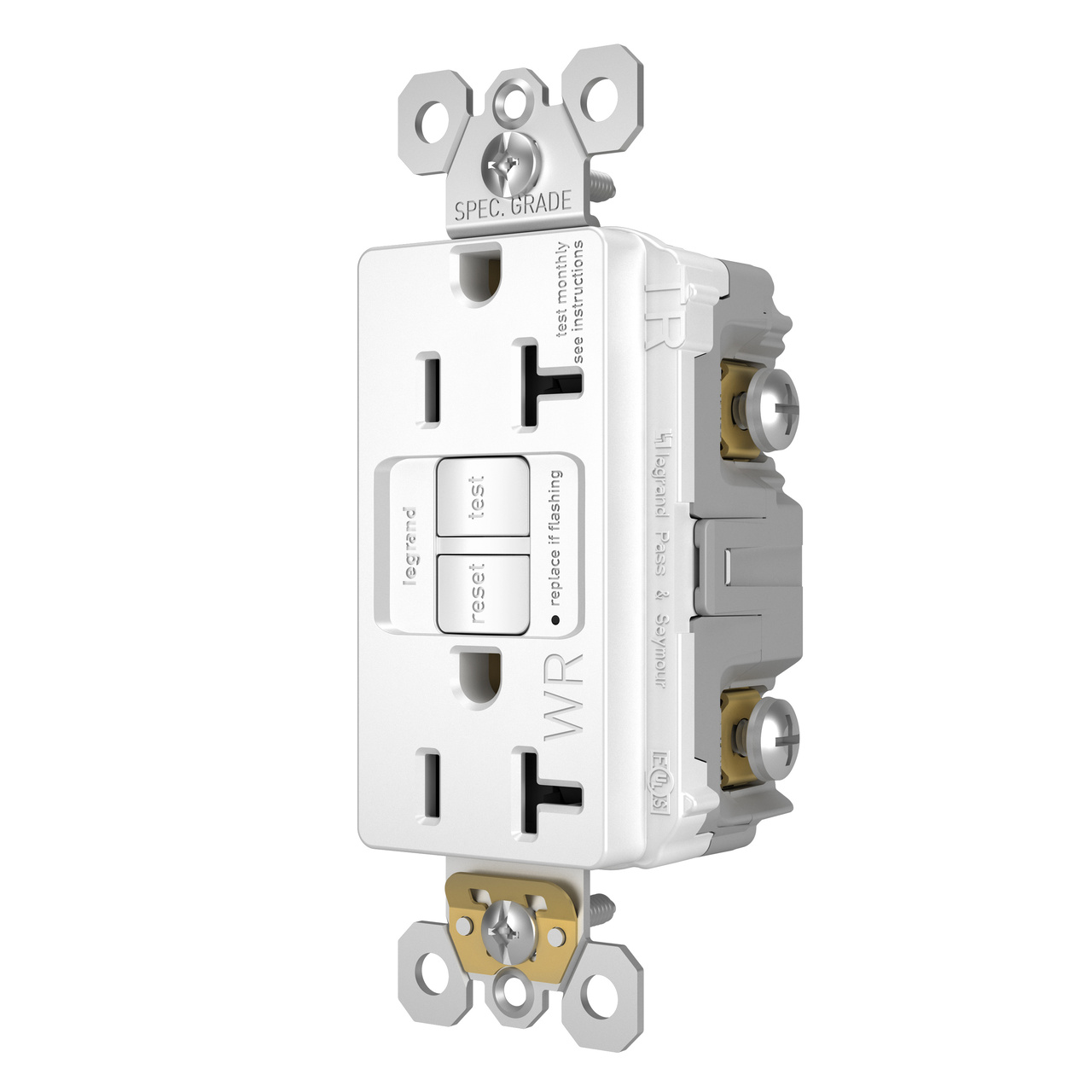

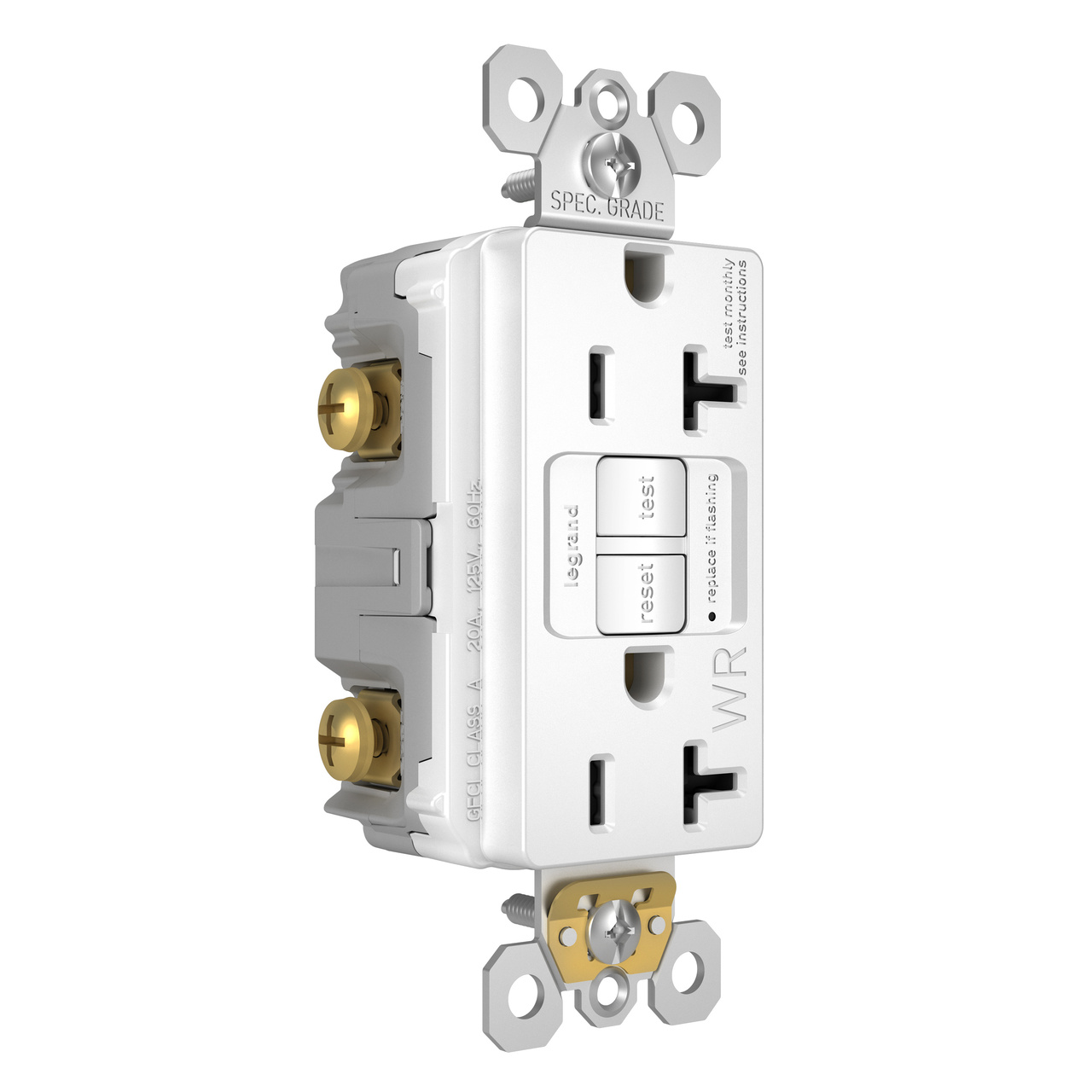

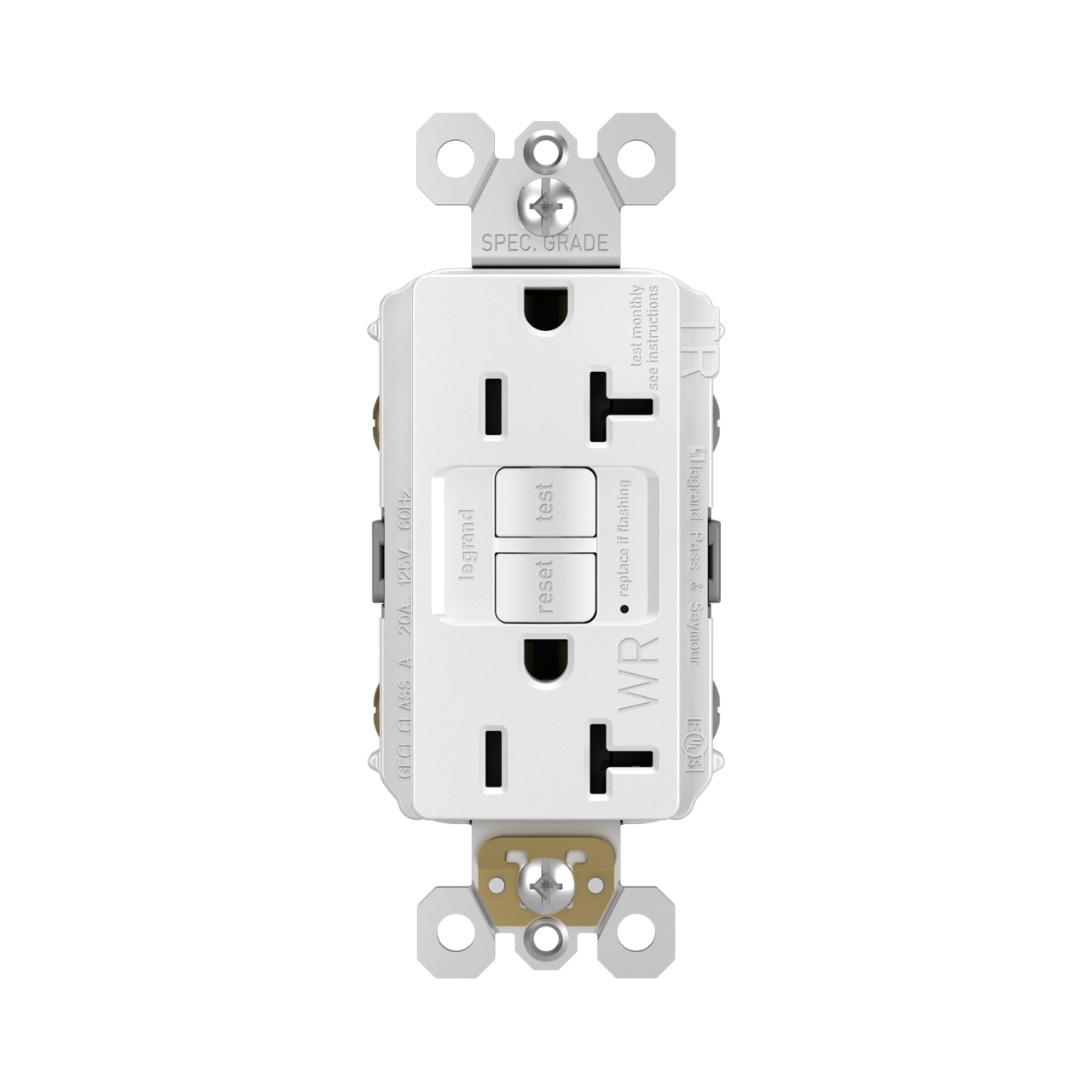

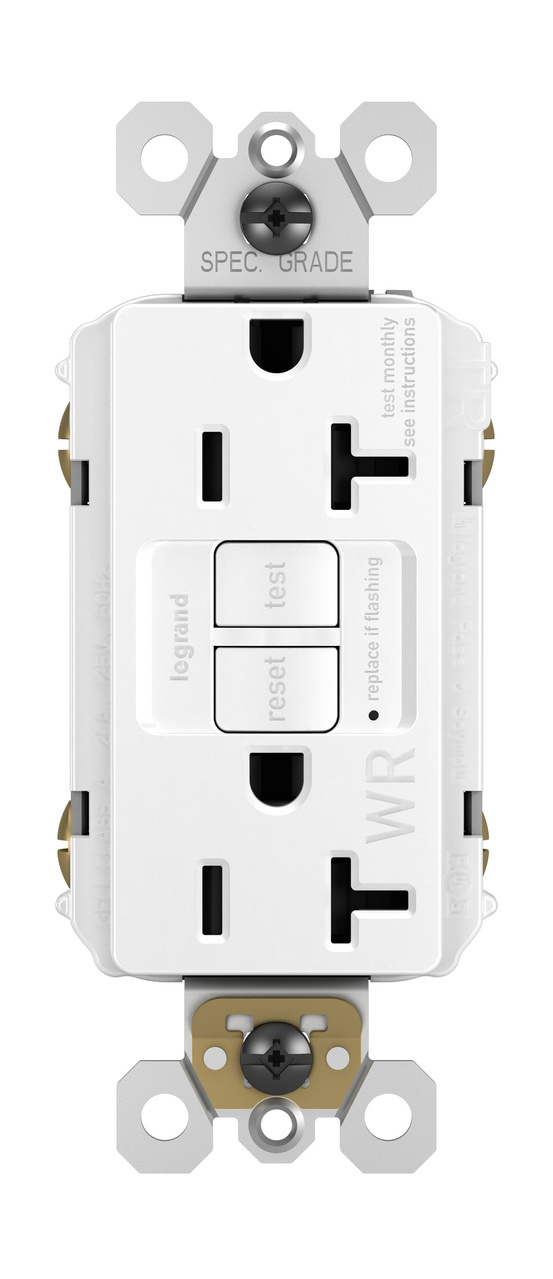

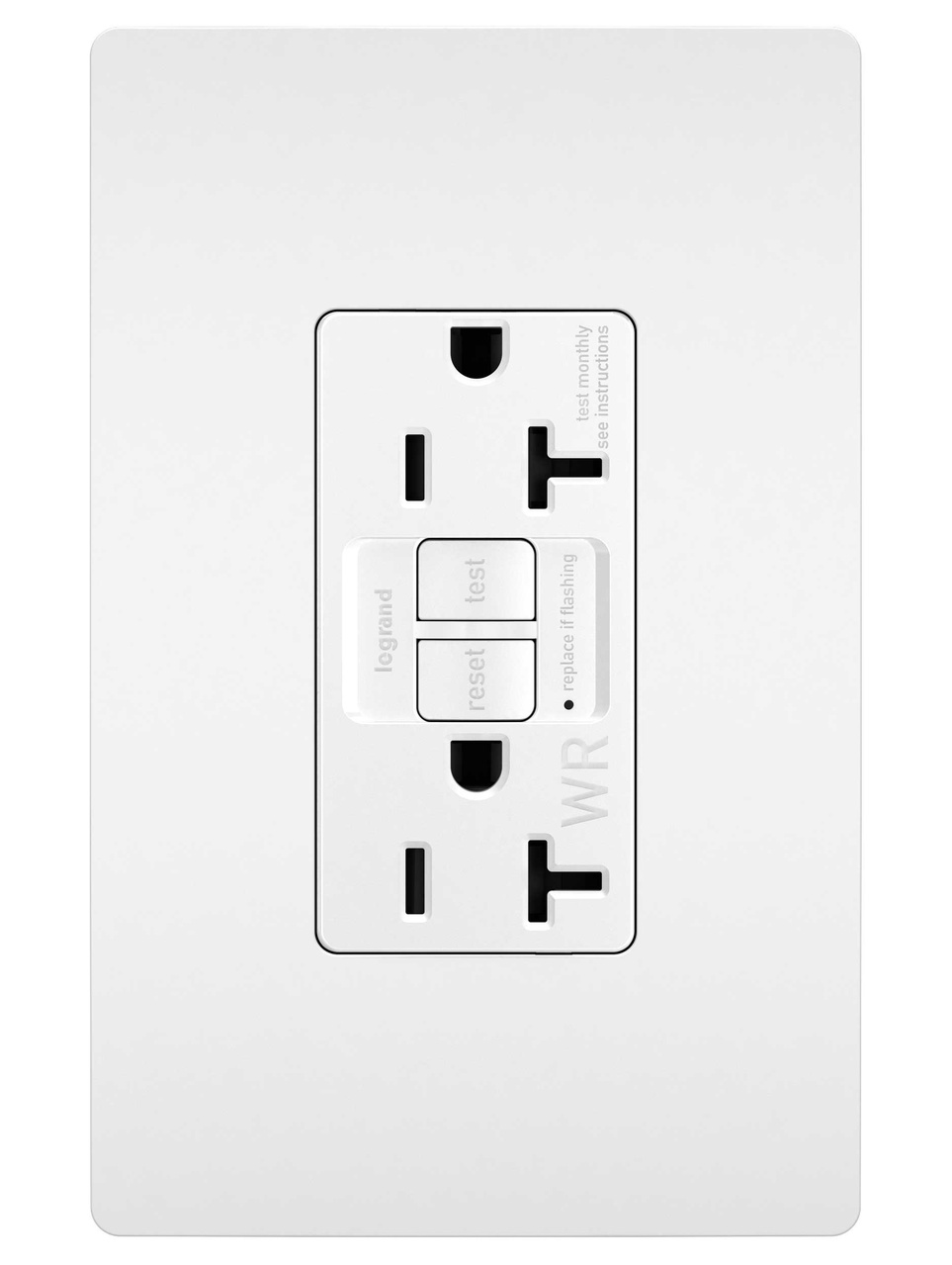

2097TRWRW – Radiant Self Test TR WR GFI 20A 125V WH
$
(per )
(Each)
$34.55
(Each)
$
(per 1)
$
(per 10)
Availability:
In Stock Locally
| Catalog Number | 2097TRWRW |
|---|---|
| Vendor Code | PAS |
| Manufacturer | Legrand-Pass & Seymour |
| Manufacturer’s Part Number | 2097TRWRW |
| Description | Radiant Self Test TR WR GFI 20A 125V WH |
| Long Description | Self-Test Duplex Receptacle, 20 A, 125 V, 2 Poles, #14 to #10 AWG Compatible Wire Size, Control Circuit Actuator, Back and Side Wired Connection, 60 Hz, 1.73 in Width, 4.20 in Height, Thermoplastic Material, White, 0.025 sec Trip Time, Weather Resistant, 0.2800 lb |
| Categories | Gen Purpose Wiring Devices – Gen Purpose Recept & Surge Pro |
| Classification | Residential Gfci Devices |
| UNSPSC | 39121406 – Electrical receptacles |
| UPC/EAN/GTIN | 785007036107 / 0785007036107 / 00785007036107 |
| Weight per unit | 0.275 (lbs/each) |
| Minimum Order Quantity | 1 |
| Unit Price | $34.55 (Each) |
| Standard Packaging | $345.50 (Per 10) |
| Current Rating | 20 A |
| Voltage Rating | 125 V |
| Material | Thermoplastic |
| Color | White |
| Finish | Matte |
| Amperage Rating | 20 |
| Interrupt Rating | 4 to 6 mA |
| Poles | 2 |
| Connection | Back and Side Wire |
| Actuator | Control Circuit |
| Number of Gangs | 1.0 |
| Dimensions (H x W x L) | 4.20 in x 1.73 in x 1.03 in |
| Product Type | Self-Test Duplex Receptacle |
| Short Description | 20 A, 125 V, Self-Test Duplex Receptacle, White, GFCI, TR, 3 Wires |
| Special Features | 10 kA Short Circuit Rating; 20 Amp Feed-Thru Capacity |
| Extra Long Description | P&S 2097TRWRW RADIANT SELF TEST TR |
| Receptacle Type | Self Test Duplex |
| Compatible Wire Size | #14 to #10 AWG |
| Trip Time | 0.025 sec |
| Trip Range | 4 to 6 mA |
| Resistance Properties | Weather Resistant |
| Mounting Type | Box |
| Indoor/Outdoor | Outdoor |
| Outlet Type | Weather-Resistant, Self-Test, Tamper-Resistant, GFCI |
| Brand | Pass & Seymour |
| GTIN | 00785007036107 |
| UPC | 785007036107 |
| Category Description | Residential GFCI devices |
| Type | Outlet |
| Trade Size | 20.0 A |
| Package | 10 |
| Weight | 0.2800 lb |
| Weight per Each | 0.275 |
| NEMA Rating | 5-15R |
| Frequency Rating | 60 Hz |
| Application | Residential; Commercial |
| Operating Temperature | -35°C to +66°C |
| Environmental Conditions | 95% Humidity, UL 94 V2 |
| Standards Met | UL, CULUS, cULus, UL Listed, FSUL |
