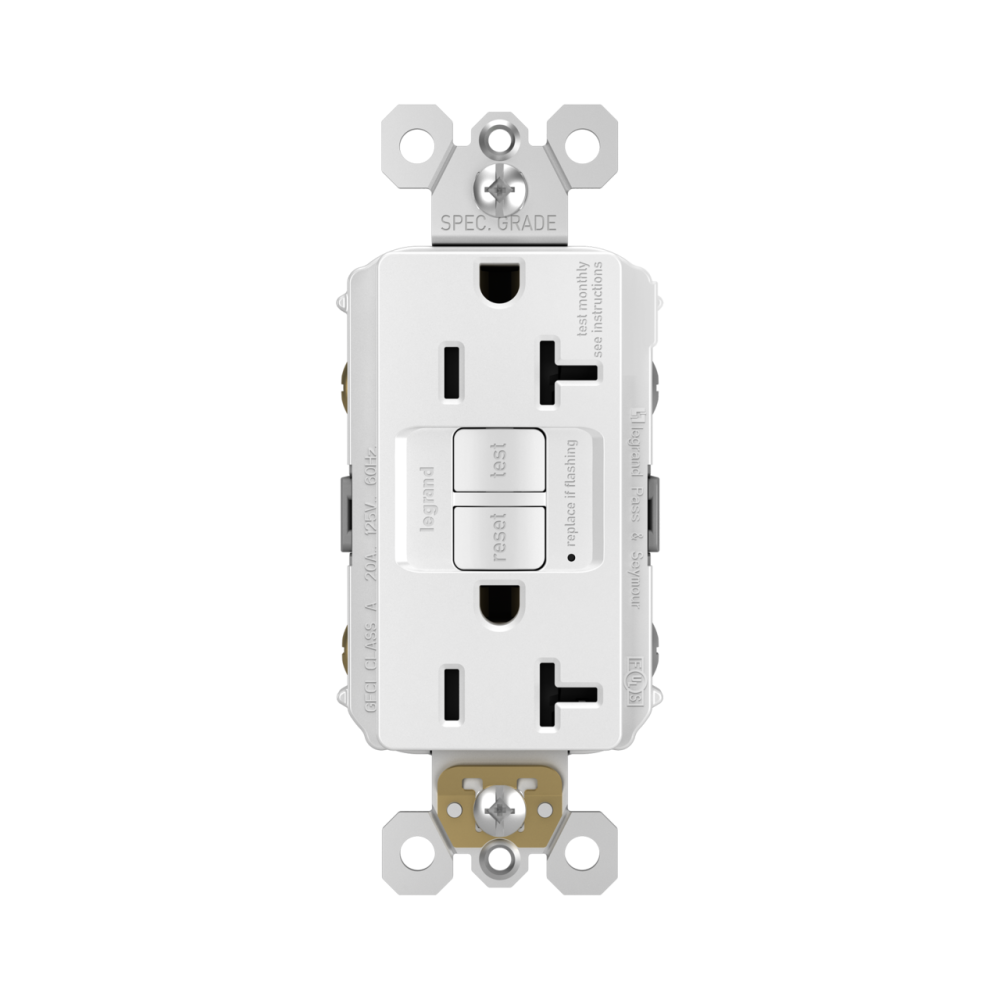

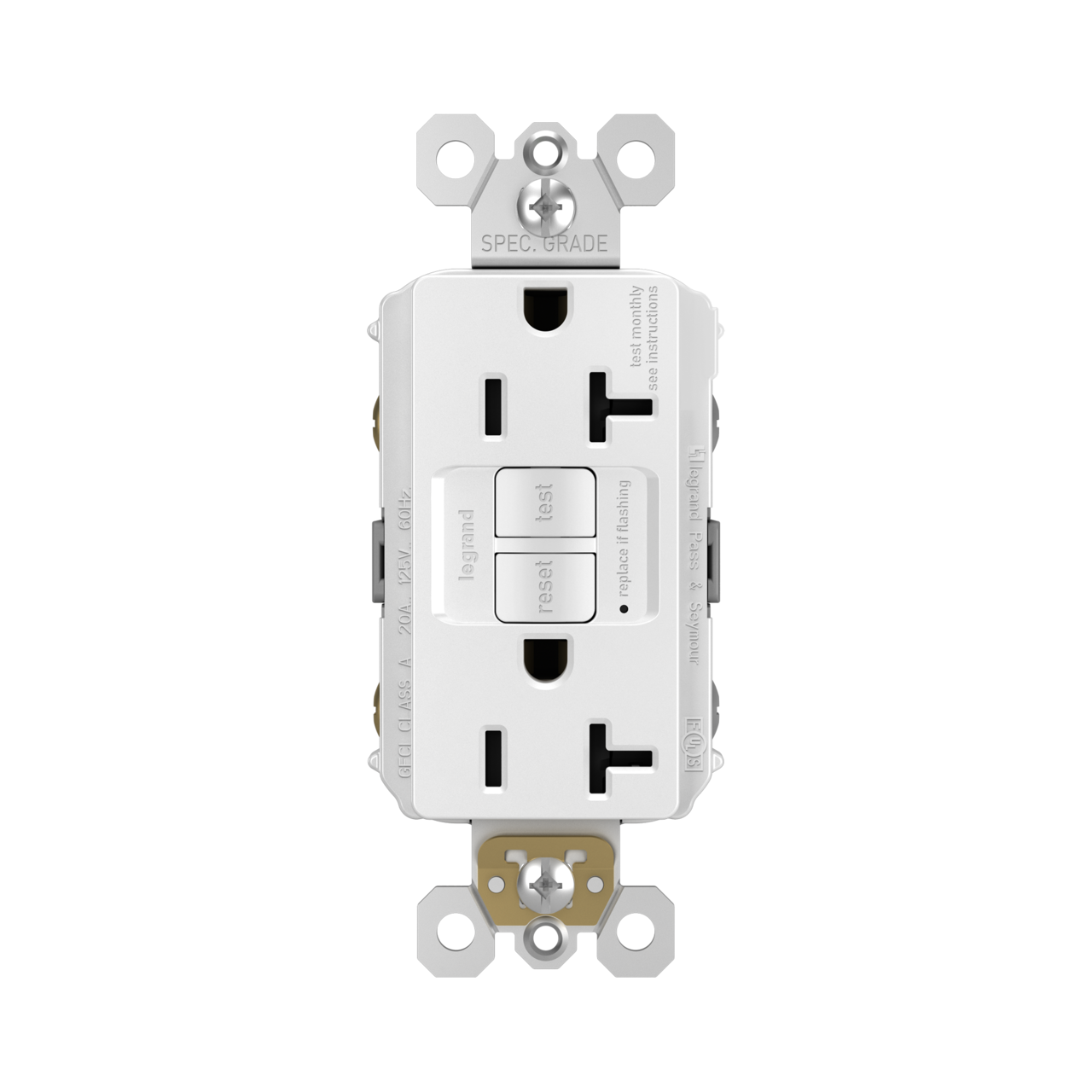

2097W – Radiant Self Test Gfci 20A 125V WH
$
(per )
(Each)
$25.68
(Each)
$
(per 1)
$
(per 10)
Availability:
In Stock Locally
| Quick Specs – Legrand-Pass & Seymour 2097W | |
|---|---|
| Catalog Number | 2097W |
| Manufacturer | Legrand-Pass & Seymour |
| Part Number | 2097W |
| Description | Radiant Self-Test GFCI 20A 125V WH |
| Type | Self-Test Duplex Receptacle |
| Amperage | 20 A |
| Voltage | 125 V |
| Poles | 2 |
| Wire Size | #14 to #10 AWG |
| Connection Type | Back and Side Wired |
| Actuator Type | Control Circuit |
| Material | Thermoplastic |
| Color / Finish | White / Matte |
| Trip Time | 0.025 sec |
| Trip Range | 4 to 6 mA |
| Mounting Type | Box |
| Dimensions (H x W x L) | 4.20 in x 1.73 in x 1.03 in |
| Weight per Unit | 0.275 lbs |
| NEMA Rating | 5-15R |
| Frequency | 60 Hz |
| Operating Temp. | -35°C to +66°C |
| Environment | Indoor, 95% Humidity |
| Certifications | cULus, UL Listed, fsUL, UL 498, UL 94 V2, Federal Specifications |
| Applications | Residential; Commercial |
| Special Features | Self-test every 3 seconds; SafeLock™ Protection; Feed-thru capacity 20A |
| Price | $25.68 (Each) |
| Standard Packaging | 10 per pack ($256.80) |
| Stock | 7,419 units available (41 in Nacogdoches) |
| UPC | 785007035926 |
| GTIN | 00785007035926 |
