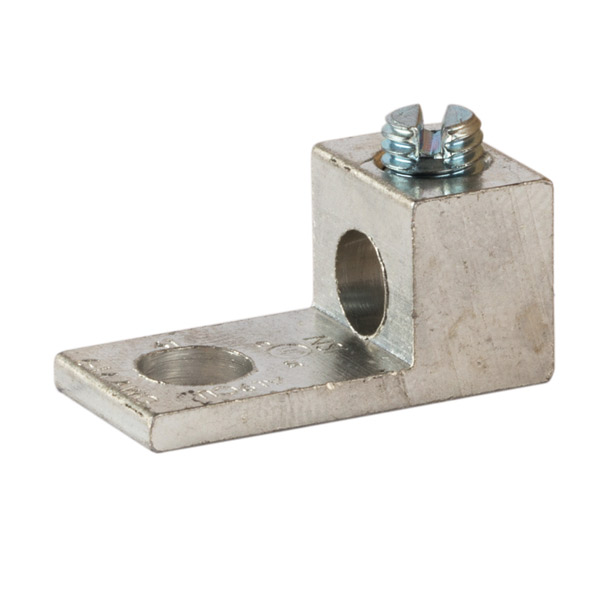

20T – 2/0 Al/Cu 1 Conductor Mechanical Lug
$
(per )
(Each)
$2.39
(Each)
$
(per 1)
$
(per 50)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Catalog Number | 20T |
| Vendor Code | NSI |
| Manufacturer | Nsi |
| Manufacturer’s Part Number | 2/0T |
| Description | 2/0 Al/Cu 1 Conductor Mechanical Lug |
| Product Type | Mechanical Connector |
| Short Description | 2/0 AL/CU 2 Conductor Mechanical Connector, Non-Insulated, 1.47 in L, 600 V |
| Long Description | Mechanical Connector, #14 AWG Conductor Size, 2/0 AWG Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 1 conductor, +90 °C Operating Temperature, 1.47 in Overall Length, Screw Terminal, 600 V, 0.08 lb/EA |
| Extra Long Description | NSI 2/0T Dual Rated Lug Aluminum/Co |
| Features | Versatile and reusable set screw connectors made of 6061T-6 aluminum alloy; Tin plated for low contact resistance; Suitable for copper and aluminum conductors; Rated 600 volts |
| Special Features | Versatile and Reusable Set Screw Connectors made of 6061t-6 Aluminum Alloy; Tin Plated for Low Contact Resistance |
| Terminal Type | Screw |
| Material, Color, and Finish | Conductor Material: Aluminum; Copper |
| Dimensions and Weight | Overall Length: 1.47 in; Weight per each: 0.08 lb |
| Maximum Operating Temperature | +90 °C |
| Minimum Conductor Size | #14 AWG |
| Maximum Conductor Size | 2/0 AWG |
| For Stud Size | 17/64 in |
| Insulated/Non-Insulated | Non-Insulated |
| For Use With | Wire Termination; Copper and Aluminum Conductor |
| Maximum Voltage Rating | 600 V |
| Standards Met | UL Listed 486A, 486B; cULus Listed; CSA Certified |
| Package Quantity | 50 CT |
| Warranty | 1 YEAR |
| Price & Packaging | Minimum Order Quantity: 1; Unit Price: $2.39 (Each); Carton Price: $2.39 (Each); Standard Packaging: $119.38 (Per 50) |
| Stock Availability | Nacogdoches: 0 (Find nearest stock); All Stores: 3,975 |
| Brand | Nsi Industries |
| Sub Brand | NSI |
| GTIN | 00662381001047 |
| UPC | 662381001047 |
| Categories | Solderless Connectors – Large Terminals & Connectors |
| Classification | Comp & Mech Lugs and Butt Splices |
| UNSPSC | 39121524 – Photocontrols |
| Taxonomies, Classifications | Category Description: Comp & Mech Lugs and Butt Splices; Type: Aluminum Single Lug |
| Packaging | Weight: 0.08 lb/EA; Carton: 1; Package: 50 |
| Environmental Conditions | 90 °C |
| Application | Wire Termination |
| Standard | cULus |
