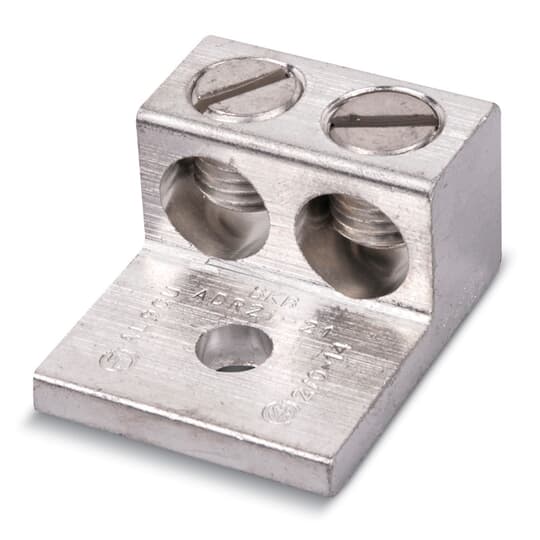

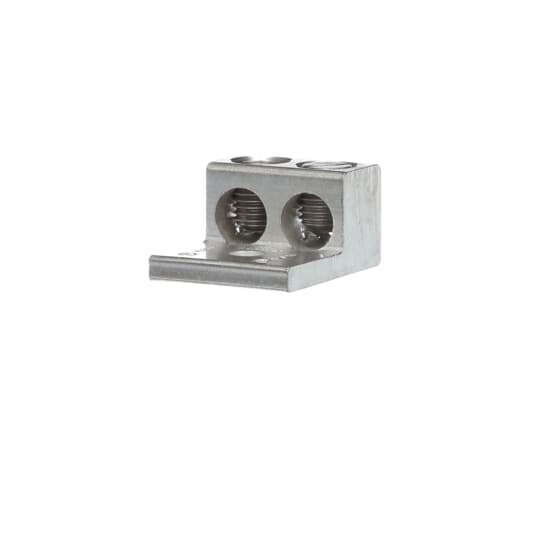

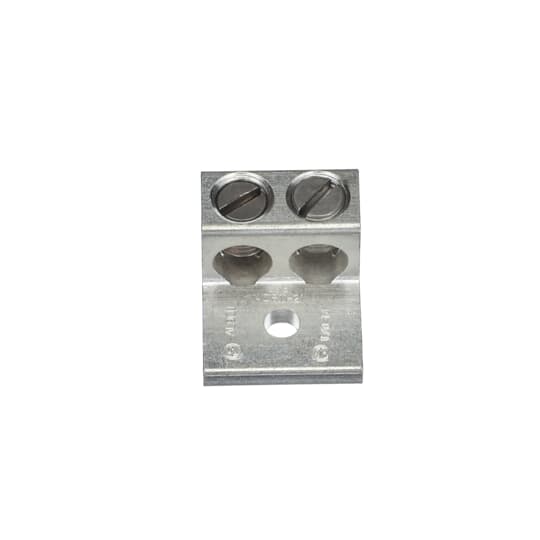

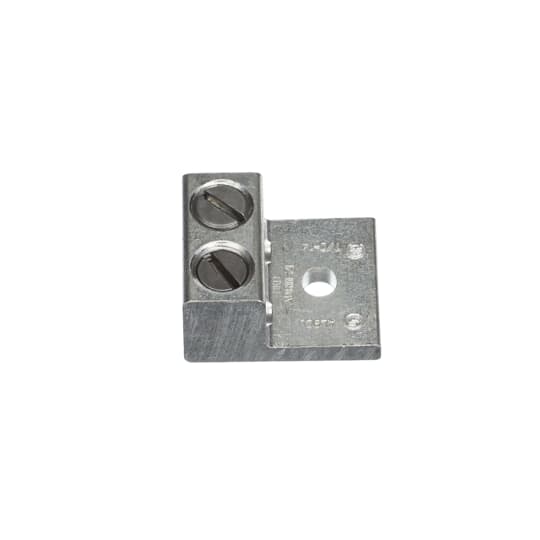

2250T – 250 Al/Cu 2 Conductor Mechanical Lug
$
(per )
(Each)
$11.64
(Each)
$
(per 1)
$
(per 10)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Quick Specs | |
| Catalog Number | 2250T |
| Vendor Code | NSI |
| Manufacturer | Nsi |
| Manufacturer’s Part Number | 2-250T |
| Description | 250 Al/Cu 2 Conductor Mechanical LugMechanical Connector, #6 AWG Conductor Size, 250 MCM Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 2 Conductors, +90 °C Operating Temperature, 2.56 In Overall Length, Screw Terminal, 600 V, 0.2 LB/Ea |
| Slang Terms | — |
| Categories | Solderless Connectors – Large Terminals & Connectors |
| Classification | Split Bolts |
| UNSPSC | 39121524 – Photocontrols |
| UPC/EAN/GTIN | 662381001221 / 6623810012212 / 00662381001221 |
| Weight per unit | 0.2 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit Price | $11.64 (Each) |
| Carton Price | $11.64 (Each) |
| Standard Packaging | $116.36 (Per 10) |
| Stock Availability | |
| Nacogdoches | 0 (Find nearest stock) |
| All Stores | 1,286 |
| Features | |
| Terminal Type | Screw |
| Material, Color, and Finish | |
| Conductor Material | Aluminum; Copper |
| Dimensions and Weight | |
| Overall Length | 2.56 in |
| Descriptions | |
| Long Description | Mechanical Connector, #6 AWG Conductor Size, 250 MCM Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 2 Conductors, +90 °C Operating Temperature, 2.56 in Overall Length, Screw Terminal, 600 V, 0.2 lb/EA |
| Features | Versatile and reusable set screw connectors made of 6061T-6 aluminum alloy. Tin plated for low contact resistance. Suitable for use with copper and aluminum conductors. Rated 600 volts. |
| Short Description | Mechanical Connector, Non-Insulated, 2.56 in L, 600 V |
| Product Type | Mechanical Connector |
| Special Features | Versatile and Reusable Set Screw Connectors made of 6061T-6 Aluminum Alloy; Tin Plated for Low Contact Resistance |
| Description | 250 AL/CU 2 CONDUCTOR MECHANICAL LUG |
| Extra Long Description | NSI 2-250T Dual Rated Lug Aluminum/ |
| Additional Information | |
| Minimum Conductor Size | #6 AWG |
| Maximum Conductor Size | 250 MCM |
| For Stud Size | 25/64 in |
| Insulated/Non-Insulated | Non-Insulated |
| Package Quantity | 10 CT |
| Maximum Operating Temperature | +90 °C |
| For Use With | Wire Termination; Copper and Aluminum Conductor |
| Maximum Voltage Rating | 600 V |
| Standards Met | UL Listed 486A, 486B; cULus Listed; CSA Certified |
| Warranty | 1 YEAR |
| Manufacturer Information | |
| Brand | Nsi Industries |
| Sub Brand | NSI |
| Manufacturer’s Part Number | 2-250T |
| GTIN | 00662381001221 |
| UPC | 662381001221 |
| Taxonomies, Classifications, and Categories | |
| Category Description | SPLIT BOLTS |
| Type | Aluminum Double Lug |
| Packaging | |
| Weight | 0.2 lb/EA |
| Weight per each | 0.2 |
| Carton | 1 |
| Package | 10 |
| Uses, Certifications, and Standards | |
| Environmental Conditions | 90 °C |
| Standard | cULus |
| Application | Wire Termination |
