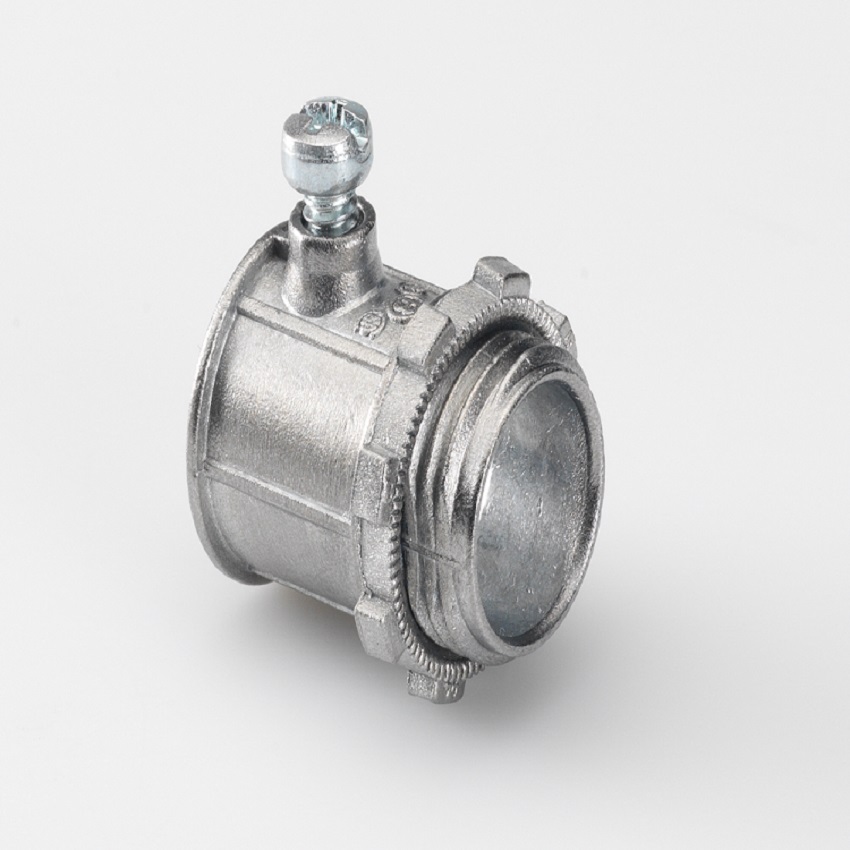

230DC2 – 1/2″ Diecast Emt Set/Screw Connector
$
(per )
(Each)
$0.40
(Each)
$
(per 50)
$
(per 500)
Availability:
In Stock Locally
“`html
| Quick Specs | |
|---|---|
| Catalog Number | 230DC2 Vendor Code BRI |
| Manufacturer | Bridgeport |
| Manufacturer’s Part Number | 230-DC2 |
| Description | 1/2″ Diecast EMT Set/Screw Connector |
| Details | EMT SS Diecast Connector, 1/2 in Trade Size, Die-Cast Zinc Material, 1/2 in Connection Size, Non-Insulated, 2.56 in Length, 0.94 in Diameter, 0.533 lb/EA |
| Slang Terms | |
| Categories | Die Cast Uninsulated Set Screw – Die Cast Uninsulated Straight |
| Classification | Diecast EMT Fittings |
| UNSPSC | 39121434 – Electrical metallic tubing EMT connectors |
| UPC/EAN/GTIN | 781747152305 / 0781747152305 / 00781747152305 |
| Weight per unit | 0.065 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit | $0.40 (Each) |
| Carton | $20.01 (Per 50) |
| Standard Packaging | $200.10 (Per 500) |
| Features | Used to join EMT to a box or enclosure. 1/2” through 2” furnished with Tri-Drive slot/Phillips/Robertson head screws. 2” through 4” UL listed for both steel and aluminum EMT. |
| Material | Die-Cast Zinc |
| Insulation | None (Non-Insulated) |
| Material, Color, and Finish | |
| Finish | Ball Burnished; Mirror Smooth |
| Dimensions and Weight | |
| Length | 2.56 in |
| Diameter | 0.94 in |
| Size | 1/2 in |
| Descriptions | |
| Product Type | EMT SS Diecast Connector |
| Short Description | EMT SS Diecast Connector, 1/2 in, Zinc Die Cast |
| Long Description | EMT SS Diecast Connector, 1/2 in Trade Size, Die-Cast Zinc Material, 1/2 in Connection Size, Non-Insulated, 2.56 in Length, 0.94 in Diameter, 0.533 lb/EA |
| Extra Long Description | BPT 230-DC2 1/2 SET SCREW CONN. ZIN |
| Special Features | Furnished with Tri-Drive slot/Phillips/Robertson head screws |
| Additional Information | |
| Connection Size | 1/2 in |
| Connector Type | Set Screw |
| For Use With | Secure EMT to Box or Enclosure |
| Standards Met | CSA Certified LR39354; Federal Specification Number A-A-50553; NEMA Standard FB-1; UL Listed E24001; UL Standard 514B |
| Package Quantity | 10 CT; 60 PK |
| Made in USA | Yes |
| Media | Yes |
| Manufacturer Information | |
| Brand | Bridgeport |
| Manufacturer’s Part Number | 230-DC2 |
| GTIN | 00781747152305 |
| UPC | 781747152305 |
| Taxonomies, Classifications, and Categories | |
| Category Description | DIECAST EMT FITTINGS |
| Type | Connector |
| Trade Size | 1/2 in |
| Packaging | |
| Weight per Each | 0.065 lb |
| Carton | 50 |
| Package | 500 |
| Uses, Certifications, and Standards | |
| Application | Used to Secure EMT to Box or Enclosure |
| Standard | UL, CSA |
“`
