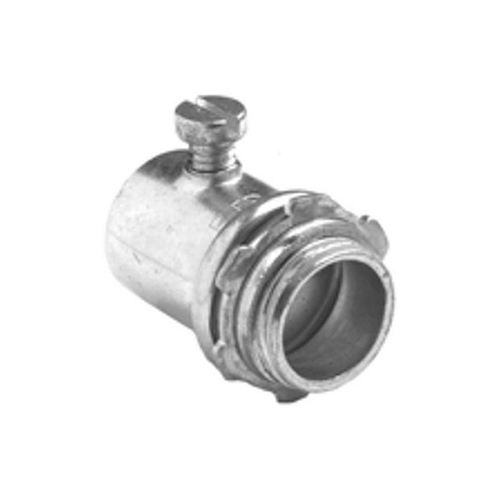

| Quick Specs – Bridgeport 233I Set Screw EMT Connector | |
|---|---|
| Catalog Number | 233I |
| Vendor Code | BRI |
| Manufacturer | Bridgeport |
| Manufacturer’s Part Number | 233-I |
| Description | 1-1/4″ Insulated Set/Screw EMT Connector |
| Product Type | Set Screw EMT Connector |
| Short Description | Set Screw EMT Connector, 1-1/4 in, Insulated |
| Long Description | Set Screw EMT Connector, 1-1/4 in Trade Size, Straight Connection Orientation, Zinc Electro-Plated, Insulated, +105 °C Operating Temperature, 2-5/16 in Length, 1-3/4 in Diameter, 47 lb/EA |
| Extra Long Description | BPT 233-I 1-1/4 SS CONN. INS. STEEL |
| Special Features | Plastic Insulator Rated 105 °C |
| Features | Used to secure steel EMT to box or enclosure. Concrete-tight when taped. Plastic insulator rated 105 °C. |
| Connection Orientation | Straight |
| Connector Type | Set Screw |
| Material / Finish | Zinc Electro-Plated |
| Insulation | Insulated Throat |
| Length | 2-5/16 in |
| Diameter | 1-3/4 in |
| Trade Size | 1-1/4 in |
| Weight per Unit | 47 lbs |
| Maximum Operating Temperature | +105 °C |
| Minimum Order Quantity | 1 |
| Unit Price | $2.31 (Each) |
| Carton Price | $46.25 (Per 20) |
| Standard Packaging | $277.50 (Per 120) |
| Carton Quantity | 20 |
| Package Quantity | 120 |
| Made in USA | Yes |
| For Use With | Secure Steel EMT to Box or Enclosure; Concrete-Tight when Taped |
| Standards Met | Federal Specification A-A-50553; NEMA FB-1; UL Listed E24001; UL Standard UL-514B |
| UNSPSC | 39121434 – Electrical metallic tubing EMT connectors |
| UPC / EAN / GTIN | 781747102331 / 0781747102331 / 00781747102331 |
