(Each)
$4.48
(Each)
(per 5)
(per 30)
In Stock Locally
$4.48

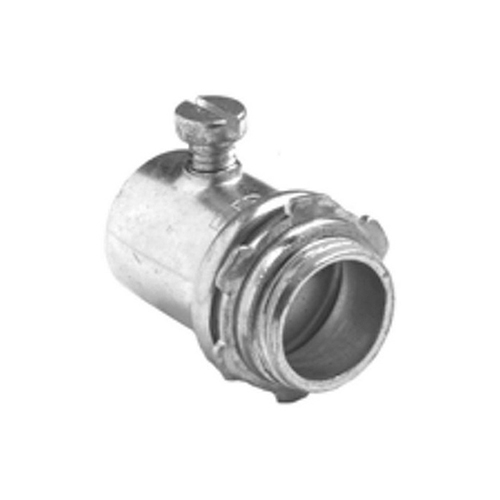

| Quick Specs – Bridgeport 235I 2″ Insulated Set Screw EMT Connector | |
|---|---|
| Catalog Number | 235I |
| Vendor Code | BRI |
| Manufacturer | Bridgeport |
| Manufacturer’s Part Number | 235I |
| Description | 2″ Insulated Set/Screw EMT Connector |
| Product Type | Set Screw EMT Connector |
| Extra Long Description | BPT 235-I 2 SS CONN. INS. STEEL |
| Short Description | Set Screw EMT Connector, 2 in, Insulated |
| Long Description | Set Screw EMT Connector, 2 in Trade Size, Straight Connection Orientation, Zinc Electro-Plated, Insulated, +105 °C Operating Temp, 2-7/8 in Length, 2-3/8 in Diameter, 0.0226 lb/EA |
| Connector Type | Set Screw |
| Connection Orientation | Straight |
| Insulated/Non-Insulated | Insulated |
| Insulation | Plastic Insulator Rated 105°C |
| Maximum Operating Temperature | +105 °C |
| Material/Finish | Zinc Electro-Plated |
| Color | Silver (Zinc Electro-Plated) |
| Trade Size | 2 in |
| Length | 2-7/8 in |
| Diameter | 2-3/8 in |
| Weight per Unit | 0.0226 lbs (each) |
| Minimum Order Quantity | 1 |
| Unit Price | $4.48 (Each) |
| Carton Price | $22.39 (Per 5) |
| Standard Packaging | $134.32 (Per 30) |
| Package Quantity | 5 CT; 30 PK |
| Categories | Steel Insulated Set Screw EMT |
| Classification | Steel EMT Fittings |
| UNSPSC | 39121434 – EMT Connectors |
| UPC/EAN/GTIN | 781747102355 / 0781747102355 / 00781747102355 |
| GTIN | 00781747102355 |
| UPC | 781747102355 |
| Standards Met |
Federal Specification A-A-50553; NEMA FB-1; UL Listed E24001; UL Standard UL-514B; cULus Listed |
| Made in USA | Yes |
| Media | Yes |
| Application | Used to secure steel EMT to box or enclosure. Concrete-tight when taped. Plastic insulator rated 105°C. |
