(Each)
$1.05
(Each)
(per 25)
(per 250)
In Stock Locally
$1.05
“`html
| Quick Specs | |
|---|---|
| Catalog Number | 251DC2 Vendor Code BRI |
| Manufacturer | Bridgeport |
| Manufacturer’s Part Number | 251-DC2 |

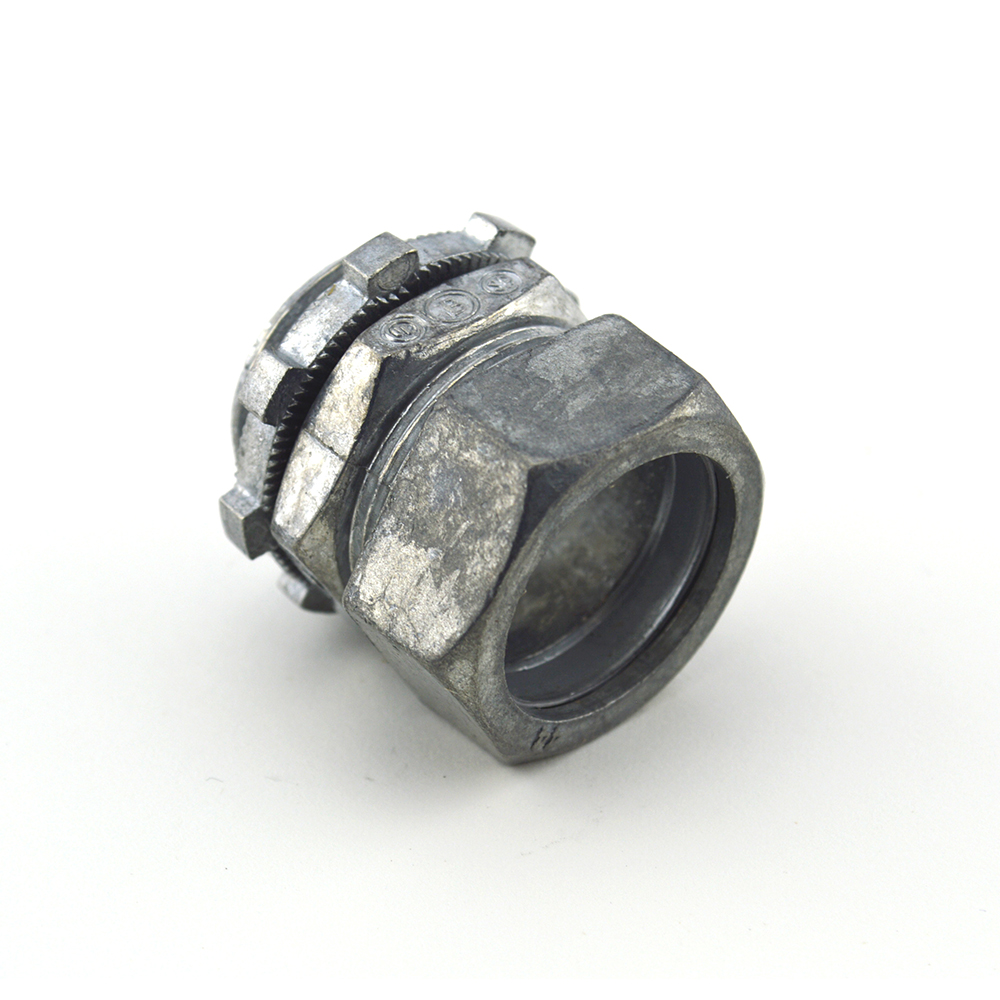

| Description | 3/4″ Diecast EMT Concrete Tight Connector |
| Details | EMT Concrete Tight DC Connector, 3/4 In Trade Size, Die-Cast Zinc Material, Straight Orientation, 3/4 In Connection Size, Compression, Non-Insulated, 1.34 In Length, 0.15 LB/Ea |
| Slang Terms | |
| Categories | Die Cast Uninsulated Compression – Die Cast Uninsulated Straight |
| Classification | Diecast EMT Fittings |
| UNSPSC | 39121434 – Electrical metallic tubing EMT connectors |
| UPC/EAN/GTIN | 781747152510 / 0781747152510 / 00781747152510 |
| Weight per unit | 0.15 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit | $1.05 (Each) |
| Carton | $26.36 (Per 25) |
| Standard Packaging | $263.55 (Per 250) |
| Features | |
| Material | Die-Cast Zinc |
| Insulation | None |
| Material, Color, and Finish | |
| Finish | Ball Burnish |
| Color/Finish | Ball Burnished; Mirror Smooth |
| Dimensions and Weight | |
| Length | 1.34 in |
| Size | 3/4 |
| Descriptions | |
| Product Type | EMT Concrete Tight DC Connector |
| Long Description | EMT Concrete Tight DC Connector, 3/4 in Trade Size, Die-Cast Zinc, Straight Orientation, 3/4 in Connection Size, Compression Connection, Non-Insulated, 1.34 in Length, 0.15 lb/EA |
| Short Description | EMT Concrete Tight DC Connector, 3/4 in, Zinc Die Cast |
| Extra Long Description | BPT 251-DC2 3/4″ COMP. CONN. |
| Description | 3/4″ DIECAST EMT CONCRETE TIGHT CONNECTOR |
| Special Features | For use in Wet Locations in Canada Only |
| Features | Used to join steel EMT to box or enclosure. Concrete-tight. 1/2″ thru 2″ suitable for use with Steel or Aluminum EMT. CSA Listed Raintight/For Use in Wet Locations in Canada Only |
| Additional Information | |
| Connection Orientation | Straight |
| Connection Size | 3/4 in |
| Connection Type | Compression |
| Insulated/Non-Insulated | Non-Insulated |
| For Use With | Steel EMT to Box or Enclosure; Suitable for Steel or Aluminum EMT |
| Standards Met | CSA LR39354; Fed Spec A-A-50553; NEMA FB-1; UL E24001; UL-514B |
| Package Quantity | 25 CT; 250 PK |
| Made in USA | Yes |
| Connector Type | Compression |
| Manufacturer Information | |
| Brand | Bridgeport |
| Manufacturer’s Part Number | 251-DC2 |
| GTIN | 00781747152510 |
| UPC | 781747152510 |
| Taxonomies, Classifications, and Categories | |
| Category Description | Diecast EMT Fittings |
| Type | Connector |
| Trade Size | 3/4 in |
| Packaging | |
| Weight | 0.15 lb/EA |
| Weight per Each | 0.15 |
| Carton | 25 |
| Package | 250 |
| Uses, Certifications, and Standards | |
| Standard | UL, CSA |
| Application | Used to join steel EMT to box or enclosure. Concrete-tight. Suitable for Steel or Aluminum EMT. |
“`
