(Each)
$14.83
(Each)
(per 25)
In Stock Locally
$14.83
| Catalog Number | 253SRTI |
|---|---|
| Vendor Code | BRI |
| Manufacturer | Bridgeport |
| Manufacturer’s Part Number | 253-SRTI |

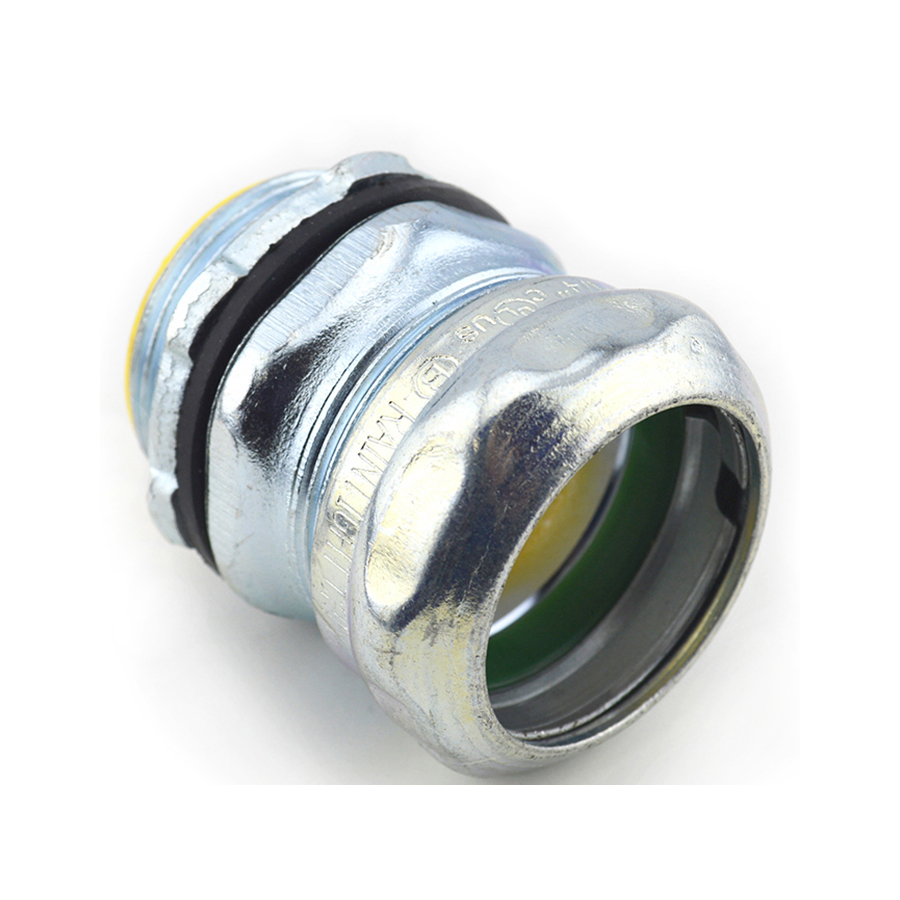

| Description | 1-1/4″ Ins Steel Emt Raintight Compression Conn |
| Long Description | Compression Connector, 1-1/4 in Trade Size, Straight Connection Orientation, Zinc Electro-Plated, Insulated, 2-11/16 in Length, 1-15/16 in Diameter, +105 °C Operating Temperature, 0.0168 lb/EA |
| Extra Long Description | BPT 253-SRTI 1-1/4″ STEEL RAINTIGHT |
| Short Description | Compression Connector, 1-1/4 in, Straight Connection, Zinc Electro-Plated, 25 PK;1 CT |
| Special Features | Concretetight; Raintight |
| Slang Terms | |
| Categories | Steel Insulated Compression Em – Steel Insulated Straight Compr |
| Classification | Steel Emt Fittings |
| UNSPSC | 39121434 – Electrical metallic tubing EMT connectors |
| UPC/EAN/GTIN | 781747122537 / 0781747122537 / 00781747122537 |
| Weight per unit | 0.0168 (lbs/each) |
| Price & Packaging |
Minimum Order Quantity: 1 Unit Price: $14.83 (Each) Carton Price: $370.79 (Per 25) |
| Insulation | Insulated Throat |
| Finish | Zinc Electroplated |
| Length | 2-11/16 in |
| Diameter | 1-15/16 in |
| Size | 1 1/4 |
| Product Type | Compression Connector |
| Connector Type | Steel Raintight/Concrete-Tight Insulated |
| Connection Orientation | Straight |
| Color/Finish | Zinc Electro-Plated |
| Insulated/Non-Insulated | Insulated |
| Maximum Operating Temperature | +105 °C |
| For Use With | To Join EMT to Box or Enclosure |
| Standards Met | cULus Listed; Federal Specification A-A-50553; UL E24001; NEMA FB-1; UL-514B |
| Package Quantity | 25 PK; 1 CT |
| Made in USA | Yes |
| Media | Yes |
| Brand | Bridgeport |
| GTIN | 00781747122537 |
| UPC | 781747122537 |
| Category Description | STEEL EMT FITTINGS |
| Type | CONNECTOR |
| Trade Size | 1-1/4 in |
| Packaging | Weight per each: 0.0168 lb Carton: 25 |
| Standard | cULus |
| Application | Used to join EMT to box or enclosure. Concrete tight/Raintight. Insulated Throat – 105°C. Patented |
