(Each)
$49.25
(Each)
(per 1)
(per 100)
In Stock Locally
$49.25

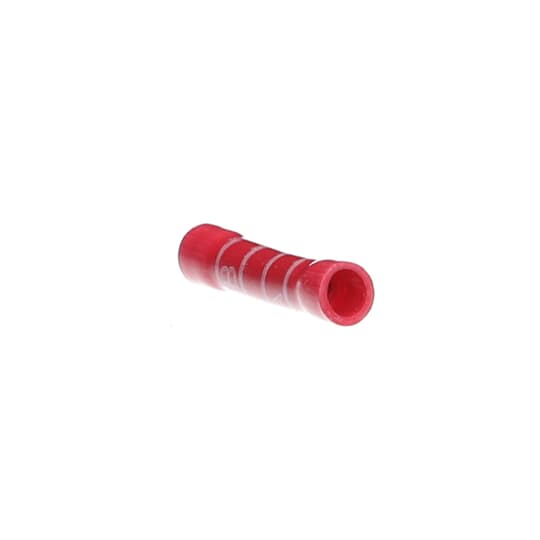

| Specification | Ideal Wing-Nut (30-452) | Eaton Terminal Block (XBUT4) | Sta-Kon Butt Splice (2RA18X) |
|---|---|---|---|
| Type | Twist-On Wire Connector | Screw Terminal Block | Vinyl-Insulated Butt Splice |
| Catalog Number | 30-452 | XBUT4 | 2RA18X |
| Manufacturer | Ideal | Eaton (Cutler-Hammer) | Sta-Kon (ABB) |
| Wire Range | 2 × #18 to 4 × #10 AWG | #26 to #10 AWG (4 mm²) | #22 to #18 AWG |
| Insulation Color | Red | Gray | Red |
| Voltage Rating | 600 V AC | 600 V (UL), 700 V (EN), 800 V (IEC) | 600 V |
| Current Rating | Based on wire size | 30 A (UL), 38 A (EN), 41 A (IEC) | Not specified |
| Temperature Rating | 105 °C / 221 °F | 105 °C | 105 °C |
| Material | Polypropylene Shell | Plastic Body, Internal Copper Conductor | Copper (Electro-Tin Plated) |
| Connection Method | Twist-on | Screw Clamp | Crimp-on |
| Dimensions (L × W) | Approx 1.25″ × 0.45″ | 1.85″ × 0.15″ (Width), 2″ Height | 1.13″ × 0.25″ |
| Certifications | UL 467, CSA, RoHS | UL Listed, CSA Certified | UL E9809 |
| Packaging | 100/Box ($40.95), 1000 ($409.51) | 1 pc ($2.01), 50 ($100.50) | 100 ($49.25), MOQ 100 |
| Unit Weight | 0.007 lb | 0.01 lb | 0.0038 lb |
| Stock Availability | 42,600 (All Stores) | 22,046 (All Stores) | 92,400 (All Stores) |
| Country of Origin | USA | USA | Likely USA (Sta-Kon/ABB) |
| Application | General Wire Joining | Panel Wiring, Terminal Connections | In-line Wire Splicing |
| Special Features | Reusable, Wing Grip for Torque | Compact, Modular System | Color-coded by wire size |
