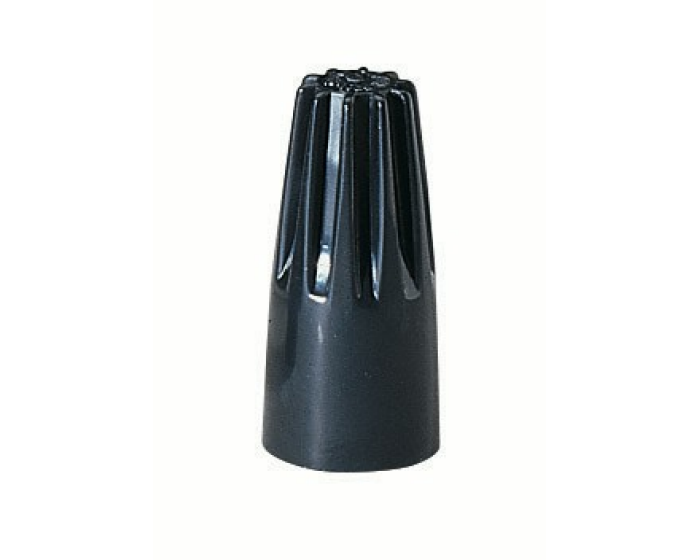

30059 – I-Temp Wire-Nut Wire Conn, 59B Black, 100/Box
$
(per )
(Each)
$30.98
(Each)
$
(per 1)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Catalog Number | 30059 |
| Vendor Code | IDE |
| Manufacturer | Ideal |
| Manufacturer’s Part Number | 30-059 |
| Description | I-Temp Wire-Nut Wire Conn, 59B Black, 100/Box |
| Ideal, Wire Connector, Wire-Nut, High Temperature Twist-On, Number Of Conductors: 1 to 6, Conductor Range: 22 – 12 AWG, Min 2 – 20, Max 3-14, Color: Black, Material: Thermoplastic Polyester, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-0 Flame-Retardant Shell Rated At 150°C (302°F), Model Number: 59B, Width: 31/64 In, Height: 1-1/16 In | |
| Slang Terms | (none provided) |
| Categories | Connecting Materials – Electrical Fixture Conn (Nuts) |
| Classification | Wire Nuts |
| UNSPSC | 39121445 – Twist on wire connector |
| UPC/EAN/GTIN | 783250300594 / 0783250300594 / 00783250300594 |
| Weight per unit | 0.007 lbs/each |
| Price & Packaging | Minimum Order Quantity: 100 |
| Unit Price: $0.31 (Each) | |
| Carton Price: $30.98 (Per 100) | |
| Stock Availability | Nacogdoches: 0 (Find nearest stock) |
| All Stores: 300 | |
| Features | Voltage Rating: 600 V |
| Material, Color, and Finish | Material: Thermoplastic Polyester |
| Color: Black | |
| Descriptions | Long Description: IDEAL, Wire Connector, Wire-Nut, High Temperature Twist-On, Number Of Conductors: 1 to 6, Conductor Range: 22 – 12 AWG, Min 2 – 20, Max 3-14, Color: Black, Material: Thermoplastic Polyester, Voltage Rating: 600 V, Environmental Conditions: Tough, UL 94V-0 Flame-Retardant Shell Rated At 150°C (302°F), Model Number: 59B, Width: 31/64 IN, Height: 1-1/16 IN |
| Special Features: Deep Skirt Helps Protect Against Flash-Over; Fixed, Square-Wire Spring Creates Its Own Threads; Maintains Secure Positive Grip That Will Not Relax Over Time; No Pre-Twisting Required; Positive Grip Design for Fast, Easy Installation; Reusable; Tough UL94V-0 Flame-Retardant Shell Rated At 150°C; UL Listed To 486C and CSA Certified To C22.2 #188; Width: 31/64 IN; Height: 1-1/16 IN | |
| Product Type | Wirenut 59B Black 100PC Box |
| Extra Long Description | IDEAL 30-059 WireNut 59B Black 100PC |
| Additional Information | media: Yes |
| Manufacturer Information | Brand: Ideal |
| Manufacturers Part Number: 30-059 | |
| GTIN: 00783250300594 | |
| UPC: 783250300594 | |
| Taxonomies, Classifications, and Categories | Type: High Temperature Twist-On |
| Category Description: WIRE NUTS | |
| Availability | Minimum Quantity: 100 |
| Packaging | Weight per each: 0.007 lbs |
| Carton: 100 | |
| Uses, Certifications, and Standards | Standard: CSA Certified to C22.2 #188, UL Listed to 486C |
| Application: Insulating or Joining 2 or more conductors in conditions with extreme heat buildup such as high wattage fixtures and signs. | |
| Environmental Conditions: Tough, UL 94V-0 Flame-Retardant Shell Rated At 150°C (302°F) |
