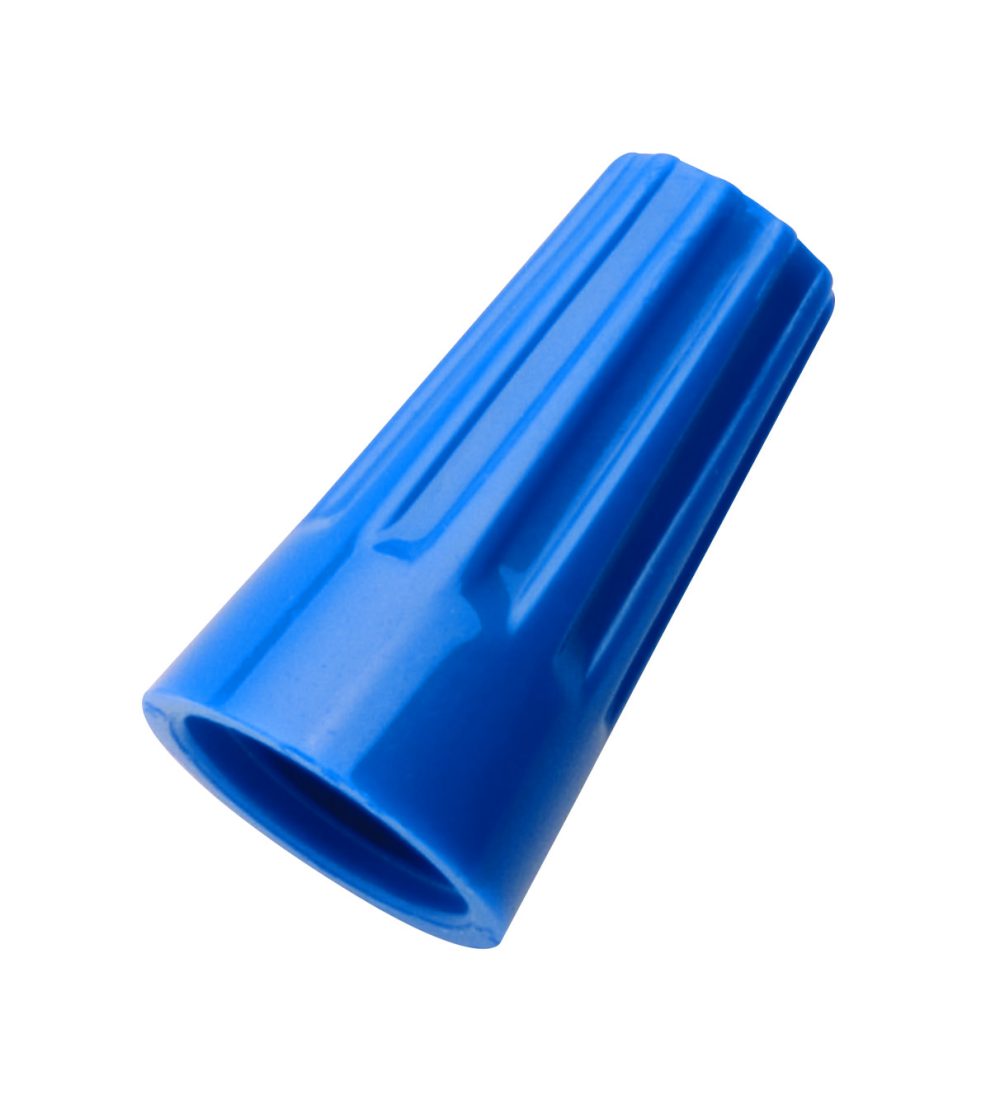

30072 – Wire-Nut Wire Conn, Model 72B Blue, 100/Box
$
(per )
(Each)
$14.78
(Each)
$
(per 100)
$
(per 1000)
Availability:
In Stock Locally
| Field | Details |
|---|---|
| Catalog Number | 30072 |
| Vendor Code | IDE |
| Manufacturer | Ideal |
| Manufacturer’s Part Number | 30-072 |
| Description | Wire-Nut Wire Connector, Model 72B Blue, 100 per box |
| Product Type | Twist-On Wire Nut |
| Number of Conductors | 1 to 5 |
| Conductor Range | 22 – 14 AWG |
| Voltage Rating | 300 V |
| Insulation Color | Blue |
| Material | Flame-retardant Polypropylene |
| Weight per unit | 0.002 lbs |
| Minimum Order Quantity | 100 |
| Pricing | $0.15 each; $14.78 per 100; $147.75 per 1,000 |
| Stock Availability | Nacogdoches: 0 All Stores: 48,600 |
| Standards & Certifications | CSA Certified to C22.2 #188; UL Listed to 486C; Complies with Federal Specification W-S-610E; RoHS |
| Special Features | – Fixed, square-wire spring creates its own threads, maintaining a secure grip that will not relax over time – Positive grip shell, ideal for twisting on by hand – Best suited for fine stranded wire applications – Tough, flame-retardant shell UL 94V-2 rated to 105°C (221°F) |
| Environmental Conditions | Tough, UL 94V-2 Flame-Retardant Shell rated at 105°C (221°F) |
| Application | Insulating or joining 2 or more conductors |
| Made in USA | Yes |
