(Each)
$25.48
(Each)
(per 1)
In Stock Locally
$25.48
| Attribute | Details |
|---|---|
| Catalog Number | 301039 Vendor Code IDE |
| Manufacturer | Ideal |
| Manufacturer’s Part Number | 30-1039 |

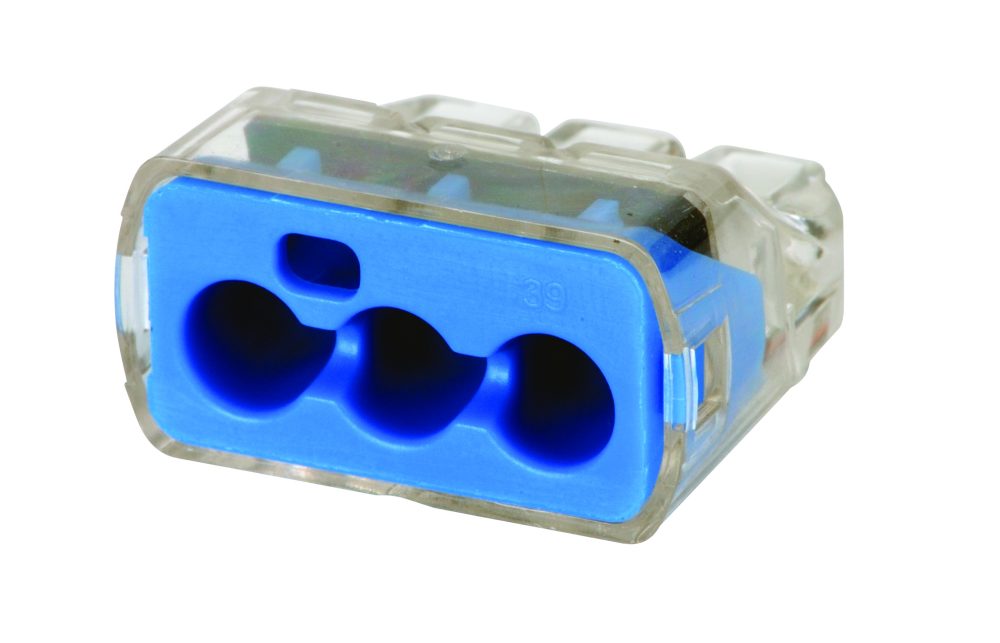

| Description | In-Sure Push-In Wire Conn, 39 3-Port Blue, 50/Box |
| Product Type | Push-In 10 AWG 3-Port, 50 Box |
| Wire Size | #10 AWG – #14 AWG Solid, #10 AWG – #12 AWG (19 Strand or Less) Stranded, Tin Bonded Stranded |
| Connection | 3 Ports |
| Voltage Rating | 600 V Maximum Building Wire, 1000 V Maximum Signs and Lighting Fixtures |
| Material / Color | Blue shell, tough UL 94V-2 flame-retardant, rated to 105°C (221°F) |
| Dimensions | 0.780 in Length × 0.86 in Width × 0.450 in Height |
| Weight per Unit | 0.005 lbs |
| Minimum Order Quantity | 50 |
| Unit Price | $0.51 each |
| Carton Quantity & Price | 500 pcs / $254.80 per carton |
| Stock Availability | Nacogdoches: 500; All Stores: 4,700 |
| Features | – Ergonomic design for easy grip and installation |
| – Low insertion force for fast and easy connections | |
| – Compact size | |
| – Clear shell allows visual verification of connection | |
| – Approved for bonding and grounding applications | |
| – UL Listed to 486C and CSA Certified to C22.2 #188 | |
| – UL 467 Listed for grounding and bonding | |
| Special Features | No-twist connection reduces repetitive motion fatigue; UL 94V-2 flame-retardant shell |
| Wire Type | Solid, Stranded, Stranded (Tin Bonded) |
| Standards / Certifications | CSA C22.2 #188, UL Listed (486C, 467), RoHS |
| Application | For grounding and bonding applications |
