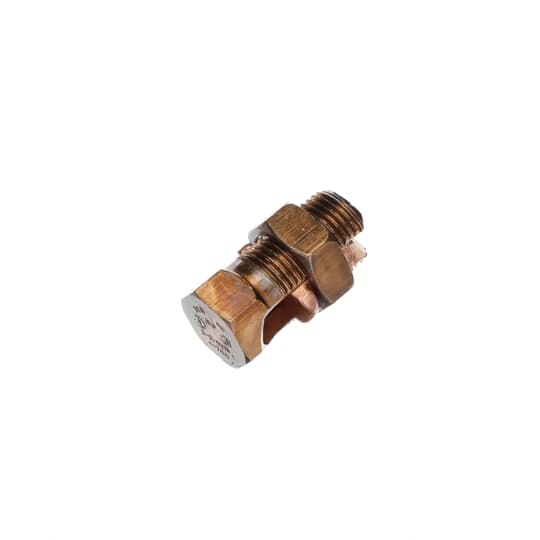

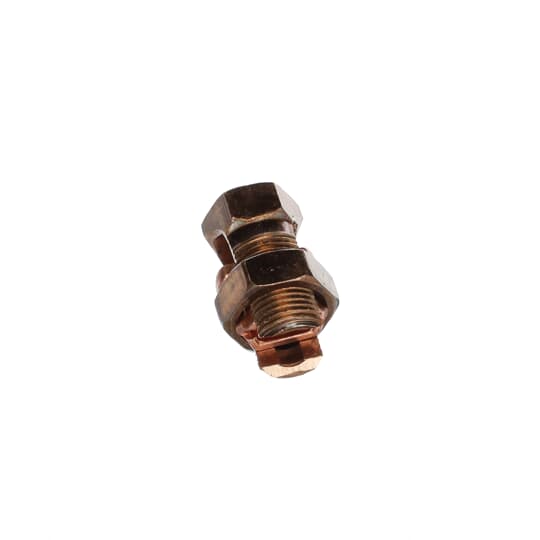

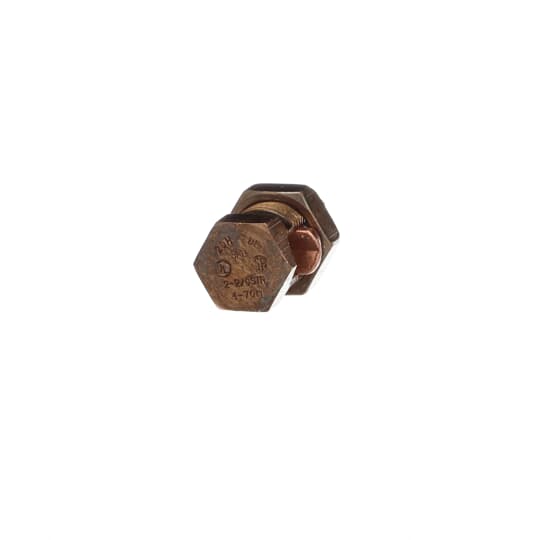

30H – 3/0 Cu Split Bolt
$
(per )
(Each)
$30.59
(Each)
$
(per 1)
Availability:
In Stock Locally
| Feature | 20H | 30H |
|---|---|---|
| Catalog Number | 20H | 30H |
| Description | 2/0 Cu Split Bolt | 3/0 Cu Split Bolt |
| Material | Bronze Alloy | Bronze Alloy |
| Conductor Material | Copper | Copper |
| Terminal Type | Split | Split |
| Insulated | No | No |
| Overall Length | 1-13/16 in (approx. 1.81″) | 2-5/12 in (approx. 2.42″) |
| Weight per Unit | 0.245 lb | 0.35 lb |
| Min. Conductor Size | #2 AWG (equal solid main & tap) | #2 AWG (equal solid main & tap) |
| Max. Conductor Size | 2/0 AWG stranded / #14 AWG tap | 4/0 AWG stranded / #6 AWG tap |
| Price Each | $24.39 | $30.59 |
| Carton Price (25 units) | $609.76 | $764.73 |
| Stock (All Stores) | 2,575 units | 2,142 units |
| Slang Terms | Bug, Kearnys, Monkey balls | Bug, Kearnys, Monkey balls |
| Standards | UL Listed E9809, 467, 486C; CSA Certified | UL Listed E9809, 467, 486C; CSA Certified |
| Applications | Splicing, tapping, terminating Cu conductors | Splicing, tapping, terminating Cu conductors |
