(Each)
$0.42
(Each)
(per 50)
(per 500)
In Stock Locally
$0.42
“`html
| Quick Specs | |
|---|---|
| Catalog Number | 323 Vendor Code BRI |
| Manufacturer | Bridgeport |
| Manufacturer’s Part Number | 323 |

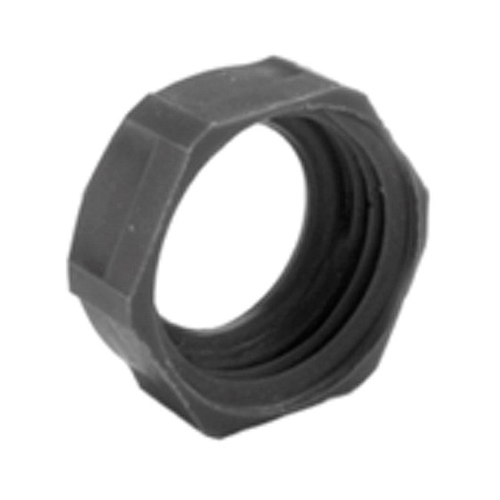

| Description | 1″ Plastic Bushing |
| Details | Plastic Bushing, 1 in Trade Size, Gray, Insulated, Straight Connection Orientation, Rigid Connection, 1-9/16 in Width, 1/2 in Height, 1-9/16 in Diameter, +150 °C Operating Temperature, 0.015 lb |
| Categories | Rigid Conduit Fittings – Plastic |
| Classification | Couplings, Adapters, Reducers, Bushings, & Caps |
| UNSPSC | 31171609 – Bushing sleeve |
| UPC/EAN/GTIN | 781747003232 / 0781747003232 / 00781747003232 |
| Weight per Unit | 0.015 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit | $0.42 (Each) |
| Carton | $21.13 (Per 50) |
| Standard Packaging | $211.30 (Per 500) |
| Features | Used with locknut to terminate threaded rigid and IMC to box, or used with connector to prevent damage to wire insulation. Rated 105 °C. |
| Special Features | Rounded Surface of Bushing |
| Material | Plastic |
| Material, Color, and Finish | |
| Color | Gray |
| Finish | No Finish |
| Dimensions and Weight | |
| Width | 1-9/16 in |
| Diameter | 1-9/16 in |
| Height | 1/2 in |
| Size | 1 in |
| Weight per Each | 0.015 lb |
| Descriptions | |
| Product Type | Plastic Bushing |
| Short Description | Plastic Bushing, 1 in, Gray |
| Long Description | Plastic Bushing, 1 in Trade Size, Gray, Insulated, Straight Connection Orientation, Rigid Connection, 1-9/16 in Width, 1/2 in Height, 1-9/16 in Diameter, +150 °C Operating Temperature, 0.015 lb |
| Extra Long Description | BPT 323 1″ PLASTIC BUSHING, 105C |
| Additional Information | |
| Media | Yes |
| Color/Finish | Gray |
| Insulated/Non-Insulated | Insulated |
| Connection Orientation | Straight |
| Connection Type | Rigid |
| Maximum Operating Temperature | +150 °C |
| For Use With | Locknut; Box or Connector |
| Manufacturer Information | |
| Brand | Bridgeport |
| Manufacturer’s Part Number | 323 |
| GTIN | 00781747003232 |
| UPC | 781747003232 |
| Taxonomies, Classifications, and Categories | |
| Category Description | COUPLINGS, ADAPTERS, REDUCERS, BUSHINGS, & CAPS |
| Type | BUSHING |
| Trade Size | 1 in |
| Packaging | |
| Carton | 50 |
| Package | 500 |
| Uses, Certifications, and Standards | |
| Standard | UL |
| Application | Used with locknut to terminate threaded rigid and IMC to box, or used with connector to prevent damage to wire insulation. |
| Temperature Rating | 105 °C |
| Standards Met | UL mA; Federal Specification A-A-50553; UL E9391; CSA LR39354; NEMA FB-1; UL UL-514B; RoHS Compliant |
“`
