(Each)
$0.68
(Each)
(per 100)
In Stock Locally
$0.68
| Quick Specs | |
|---|---|
| Catalog Number | 325 Vendor Code BRI |
| Manufacturer | Bridgeport |
| Manufacturer’s Part Number | 325 |

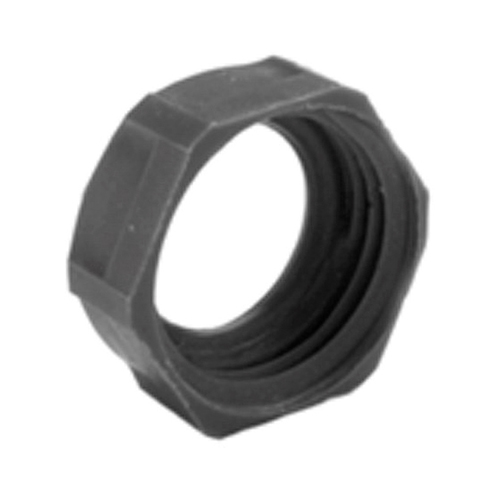

| Description | 1-1/2″ Plastic Bushing |
| Long Description | Plastic Bushing, 1-1/2 in Trade Size, Gray, Insulated, Straight Connection Orientation, Rigid Connection, 2-3/16 in Width, 1/2 in Height, 2-3/16 in Diameter, +150 °C Operating Temperature, 0.0183 lb/EA |
| Categories | Rigid Conduit Fittings – Plastic |
| Classification | Couplings, Adapters, Reducers, Bushings, & Caps |
| UNSPSC | 31171609 – Bushing sleeve |
| UPC/EAN/GTIN | 781747003256 / 0781747003256 / 00781747003256 |
| Weight per Unit | 0.0183 lbs |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit Price | $0.68 (Each) |
| Carton | $68.44 (Per 100) |
| Material | Plastic |
| Color | Gray |
| Finish | No Finish |
| Insulated | Yes |
| Dimensions | |
| Width | 2-3/16 in |
| Height | 1/2 in |
| Diameter | 2-3/16 in |
| Size | 1-1/2 |
| Trade Size | 1.5 |
| Connection Orientation | Straight |
| Connection Type | Rigid |
| Product Type | Plastic Bushing |
| Short Description | Plastic Bushing, 1-1/2 in, Gray |
| Extra Long Description | BPT 325 1-1/2″ PLASTIC BUSH. |
| Features | Used with locknut to terminate threaded rigid and IMC to box, or used with connector to prevent damage to wire insulation. Rated 105°C. |
| Special Features | Rounded Surface of Bushing |
| Application | Used with locknut to terminate threaded rigid and IMC to box, or with connector to protect wire insulation. |
| Standards Met | UL mA; Federal Spec A-A-50553; UL E9391; CSA LR39354; NEMA FB-1; UL-514B; RoHS Compliant |
| Package Quantity | 100 PK; 1 CT |
| Made in USA | Yes |
| Maximum Operating Temperature | +150 °C |
| For Use With | Locknut; Box or Connector |
| Manufacturer Info | |
| Brand | Bridgeport |
| GTIN | 00781747003256 |
| UPC | 781747003256 |
| Category Description | COUPLINGS, ADAPTERS, REDUCERS, BUSHINGS, & CAPS |
| Type | Bushing |
