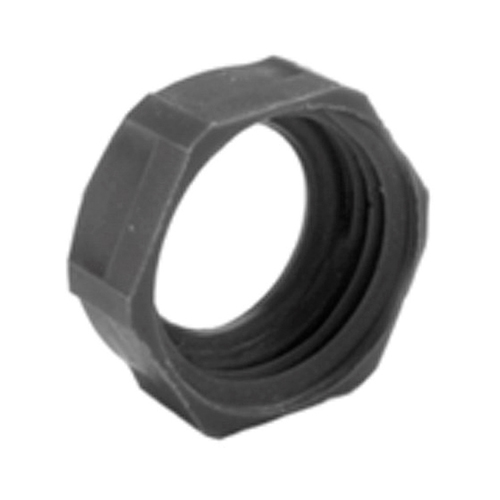

326 – 2″ Plastic Bushing
$
(per )
(Each)
$0.89
(Each)
$
(per 50)
$
(per 100)
Availability:
In Stock Locally
“`html
| Quick Specs | |
|---|---|
| Catalog Number | 326 Vendor Code BRI |
| Manufacturer | Bridgeport |
| Manufacturer’s Part Number | 326 |
| Description | 2″ Plastic Bushing |
| Details | Plastic Bushing, 2 In Trade Size, Gray, Insulated, Straight Connection Orientation, Rigid Connection, 2-11/16 In Width, 1/2 In Height, 2-11/16 In Diameter, +150 °C Operating Temperature, 0.0282 LB/Ea |
| Slang Terms | |
| Categories | Rigid Conduit Fittings – Plastic |
| Classification | Couplings, Adapters, Reducers, Bushings, & Caps |
| UNSPSC | 31171609 – Bushing sleeve |
| UPC/EAN/GTIN | 781747003263 / 0781747003263 / 00781747003263 |
| Weight per unit | 0.0282 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit | $0.89 (Each) |
| Carton | $44.34 (Per 50) |
| Features | |
| Material | Plastic |
| Material, Color, and Finish | |
| Color | Gray |
| Finish | No Finish |
| Dimensions and Weight | |
| Width | 2-11/16 in |
| Height | 1/2 in |
| Diameter | 2-11/16 in |
| Size | 2 |
| Descriptions | |
| Description | 2″ PLASTIC BUSHING |
| Product Type | Plastic Bushing |
| Long Description | Plastic Bushing, 2 in Trade Size, Gray, Insulated, Straight Connection Orientation, Rigid Connection, 2-11/16 in Width, 1/2 in Height, 2-11/16 in Diameter, +150 °C Operating Temperature, 0.0282 lb/EA |
| Short Description | Plastic Bushing, 2 in, Gray |
| Features | Used with locknut to terminate threaded rigid and IMC to box, or used with connector to prevent damage to wire insulation. Rated 105°C. |
| Special Features | Rounded Surface of Bushing |
| Extra Long Description | BPT 326 2″ PLASTIC BUSHING 105 C |
| Additional Information | |
| Media | Yes |
| Color/Finish | Gray |
| Insulated/Non-Insulated | Insulated |
| Connection Orientation | Straight |
| Connection Type | Rigid |
| Maximum Operating Temperature | +150 °C |
| For Use With | Locknut; Box or Connector |
| Standards Met | UL mA; Federal Specification A-A-50553; UL E9391; CSA LR39354; NEMA FB-1; UL UL-514B; RoHS Compliant |
| Package Quantity | 50 PK; 1 CT |
| Made in USA | Yes |
| Manufacturer Information | |
| Brand | Bridgeport |
| Manufacturer’s Part Number | 326 |
| GTIN | 00781747003263 |
| UPC | 781747003263 |
| Taxonomies, Classifications, and Categories | |
| Category Description | COUPLINGS, ADAPTERS, REDUCERS, BUSHINGS, & CAPS |
| Type | BUSHING |
| Trade Size | 2 |
| Packaging | |
| Weight | 0.0282 lb/EA |
| Weight per each | 0.0282 |
| Carton | 50 |
| Uses, Certifications, and Standards | |
| Temperature Rating | 105°C |
| Standard | UL |
| Application | Used with locknut to terminate threaded rigid and IMC to box, or used with connector to prevent damage to wire insulation. Rated 105°C. |
“`
