(Each)
$7.13
(Each)
(per 1)
(per 20)
In Stock Locally
$7.13
| Field | Value |
|---|---|
| Catalog Number | 350T |
| Vendor Code | NSI |
| Manufacturer | NSI |
| Manufacturer’s Part Number | 350T |

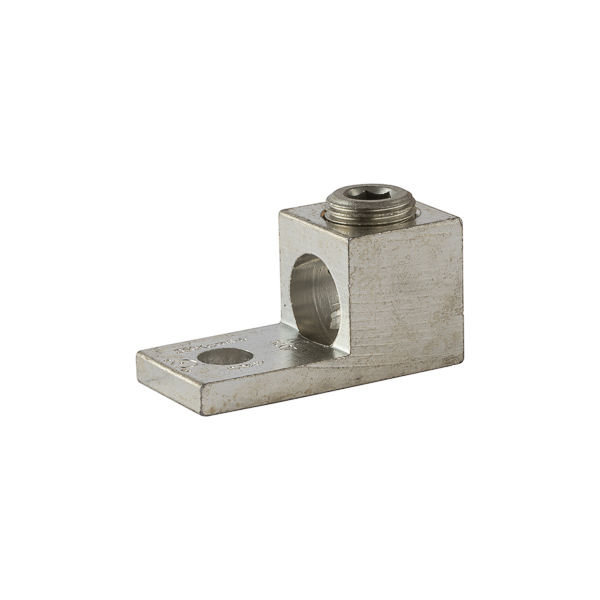

| Description | 350 Al/Cu 1 Conductor Mechanical Lug |
| Long Description | Mechanical Connector, #6 AWG Conductor Size, 350 MCM Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 1 conductor, +90 °C Operating Temperature, 2.25 in Overall Length, Screw Terminal, 600 V, 0.14 lb/EA |
| Short Description | Mechanical Connector, Non-Insulated, 2.25 in L, 600 V |
| Extra Long Description | NSI 350T Dual Rated Lug Aluminum/Co |
| Categories | Solderless Connectors – Large Terminals & Connectors |
| Classification | Split Bolts |
| UNSPSC | 39121408 – Mechanical connectors |
| UPC/EAN/GTIN | 662381001085 / 6623810010850 / 00662381001085 |
| Weight per Unit | 0.14 lbs/each |
| Price – Unit | $7.13 (Each) |
| Price – Carton | $7.13 (Each) |
| Standard Packaging | $142.68 (Per 20) |
| Minimum Order Quantity | 1 |
| Stock – Nacogdoches | 0 |
| Stock – All Stores | 1,107 |
| Terminal Type | Screw |
| Conductor Material | Aluminum; Copper |
| Overall Length | 2.25 in |
| Product Type | Mechanical Connector |
| Special Features | Versatile and Reusable Set Screw Connectors made of 6061T-6 Aluminum Alloy; Tin Plated for Low Contact Resistance |
| Features | 1 Port Aluminum Lug 350 MCM – 6 AWG; Suitable for use with both copper and aluminum conductors; Temperature Rating 90 °C; Rated 600V (2000V max. per UL486B); UL 486A/B Listed |
| Insulated/Non-Insulated | Non-Insulated |
| Min Conductor Size | #6 AWG |
| Max Conductor Size | 350 MCM |
| Max Operating Temperature | +90 °C |
| Max Voltage Rating | 600 V |
| For Use With | Wire Termination; Copper and Aluminum Conductor |
| For Stud Size | 13/32 in |
| Standards Met | UL Listed 486A, 486B; cULus Listed; CSA Certified |
| Warranty | 1 Year |
| Brand | NSI Industries |
| Sub Brand | NSI |
| Package Quantity |
