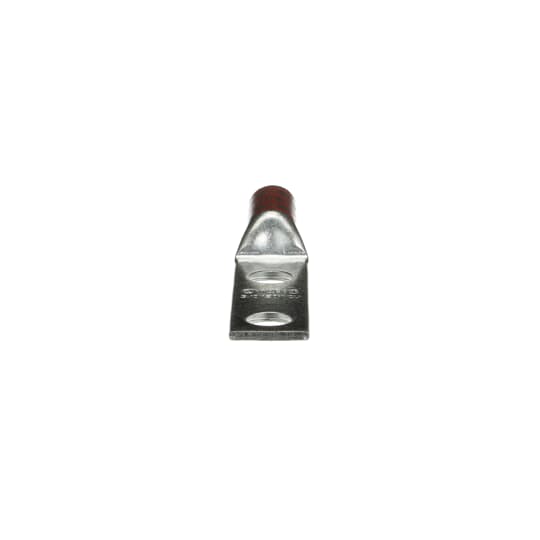

54104 – #8 1H Comp Lug
$
(per )
(Each)
$2.51
(Each)
$
(per 1)
Availability:
In Stock Locally
| Feature | 500M Split Bolt Connector | 54104 #8 1H Compression Lug |
|---|---|---|
| Catalog Number | 500M | 54104 |
| Vendor Code | TAB | TAB |
| Manufacturer | Blackburn Mechanical | Color-Keyed |
| Part Number | 500M | 54104 |
| Product Type | Split Bolt Connector | Standard Barrel Single Hole Compression Lug |
| Material | Bronze Alloy (Bolt), Copper (Pressure Bar) | Copper |
| Insulation | Non-Insulated | Non-Insulated |
| Terminal Type | Split Terminal | Tongue Terminal |
| Voltage Rating | — | 35 kV |
| Conductor Size Range | 400–500 kcmil (equal tap & main); 2/0 AWG (min tap w/ max main) | #8 AWG |
| Stud Size | — | #10 |
| Length | 3-1/32 in | 1.16 in |
| Weight per Unit | 0.93 lb | 0.02 lb |
| Color / Die Code | Metallic | Red (Die Color) |
| Application | Splicing, tapping, terminating—Power & Grounding | Compression connection for copper conductors |
| Certifications | UL E9809, UL 467, UL 486C, CSA | UL E9809, CSA Certified |
| Minimum Order Quantity | 1 | 1 |
| Unit Price | $95.89 | $2.51 |
| Packaging (Carton) | 1 per carton | 50 per carton ($125.67) |
| Stock – All Stores | 129 units | 5,101 units |
