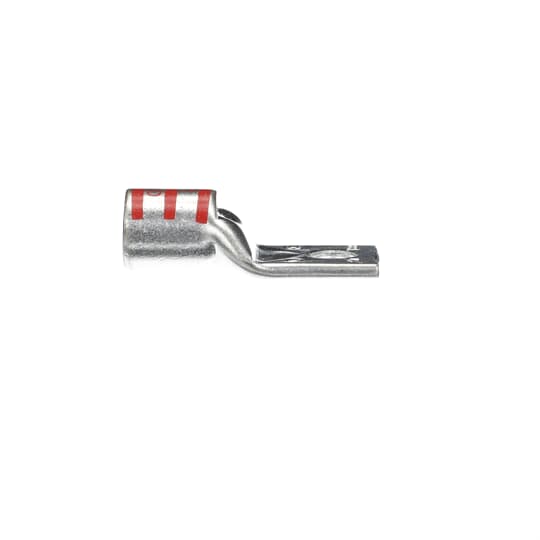

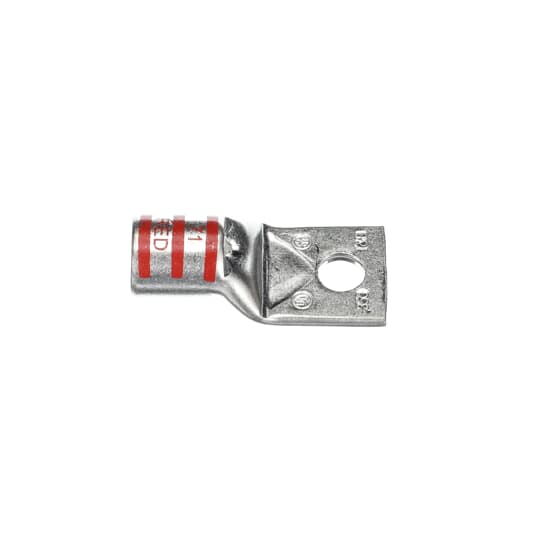

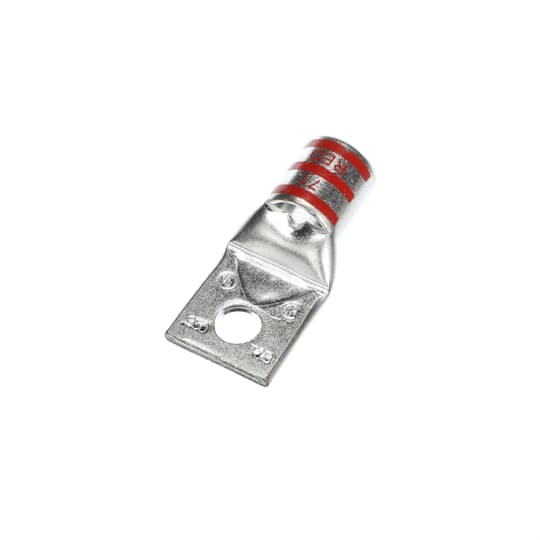

54109 – 1/0 1H Comp Lug
$
(per )
(Each)
$7.55
(Each)
$
(per 1)
$
(per 10)
Availability:
In Stock Locally
| Category | Details |
|---|---|
| Catalog Number | 54109 |
| Vendor Code | TAB |
| Manufacturer | Color-Keyed |
| Manufacturer’s Part Number | 54109 |
| Description | 1/0 1H Comp Lug Standard Barrel Single Hole Compression Lug, 1/0 AWG Conductor Size, Non-Insulated, Copper Conductor Material, Pink (Die Color) Insulation Color, 1.88 In Overall Length, Tongue Terminal, 35 KV, 0.06 LB/Ea |
| Slang Terms | — |
| Categories | Solderless Connectors – Large Terminals & Connectors |
| Classification | Comp & Mech Lugs and Butt Splices |
| UNSPSC | 39121405 – Cable or wire lug |
| UPC/EAN/GTIN | 786210541099 / 5414363143338 / 00786210541099 |
| Weight per unit | 0.055 lbs/each |
| Price & Packaging | Minimum Order Quantity: 1 Unit Price: $7.55 (Each) Carton Price: $75.53 (Per 10) |
| Stock Availability | Nacogdoches: 8 (Check another store) All Stores: 2,479 |
| Features | Terminal Type: Tongue Voltage Rating: 35 kV Material: Copper Insulation: None |
| Material, Color, and Finish | Conductor Material: Copper Insulation Color: Pink (Die Color) Color: Pink |
| Dimensions and Weight | Overall Length: 1.88 in |
| Descriptions | Product Type: Standard Barrel Single Hole Compression Lug Description: 1/0 1H COMP LUG Features: Two-way connectors provide high pullout values, easy insulation, low resistance, and low installed cost Short Description: Standard Barrel Single Hole Compression Lug, Non-Insulated, 1.88 in L, 35 kV Long Description: Standard Barrel Single Hole Compression Lug, 1/0 AWG Conductor Size, Non-Insulated, Copper Conductor Material, Pink (Die Color) Insulation Color, 1.88 in Overall Length, Tongue Terminal, 35 kV, 0.06 lb/EA |
| Special Features | Standard Barrel; High Conductivity |
| Extra Long Description | ABB 54109 1/0 CU STD BRL. 1 HOLE 3/ |
| Additional Information | Maximum Conductor Size: 1/0 AWG For Stud Size: 3/8 in Insulated/Non-Insulated: Non-Insulated For Use With: Copper Conductor Maximum Voltage Rating: 35 kV |
| Standards Met | UL Listed E9809; CSA Certified |
| Package Quantity | 10 CT; 100 PK |
| Number of Holes | 1 |
| Cable Size | 1/0 AWG |
| Stud Size | 3/8 in |
| Manufacturer Information | Brand: COLOR-KEYED Sub Brand: Color-Keyed Manufacturer’s Part Number: 54109 GTIN: 00786210541099 UPC: 786210541099 |
| Taxonomies, Classifications, and Categories | Category Description: Comp & Mech Lugs and Butt Splices Type: Standard Barrel |
| Packaging | Weight: 0.06 lb/EA Weight per Each: 0.055 Carton: 10 |
| Uses, Certifications, and Standards | Standard: UL E9809 / UL E9809 |
