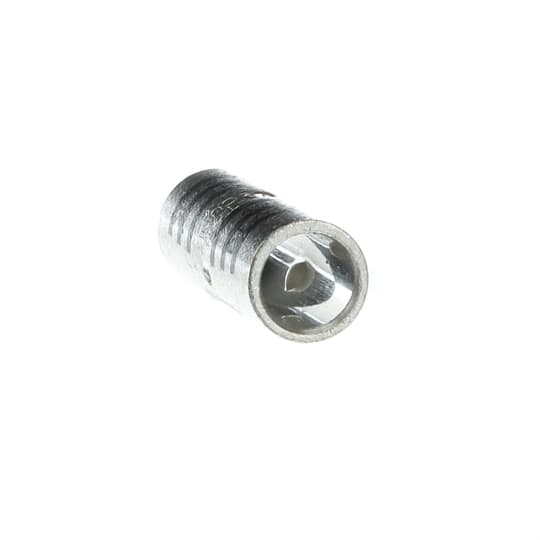

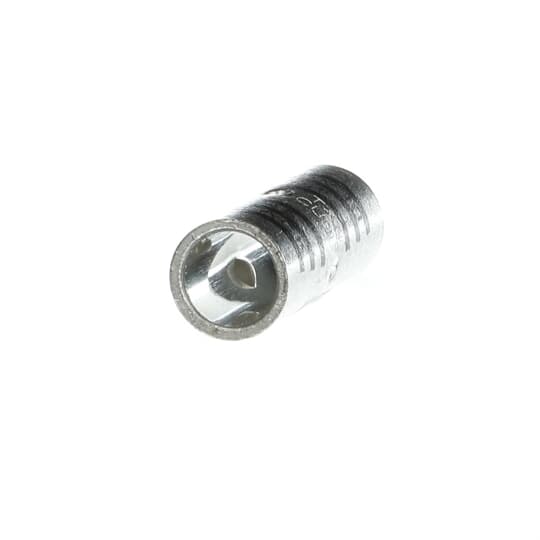

54510 – 2/0 Butt Splice
$
(per )
(Each)
$6.82
(Each)
$
(per 1)
Availability:
In Stock Locally
| Specification | 54509 – 1/0 Butt Splice | 54510 – 2/0 Butt Splice |
|---|---|---|
| Catalog Number | 54509 | 54510 |
| Conductor Size | 1/0 AWG | 2/0 AWG |
| Manufacturer Part # | 54509 | 54510 |
| Color Code (Die) | Pink | Black |
| Overall Length | 1.63 in | 1.75 in |
| Terminal Type | Compression | Compression |
| Insulation | Non-Insulated | Non-Insulated |
| Material | Copper, Tin-Plated | Copper, Tin-Plated |
| Voltage Rating | 600 V (Certified), 35 kV (Recommended) | 600 V (Certified), 35 kV (Recommended) |
| UL/CSA Certification | UL Listed E9809, CSA Certified | UL Listed E9809, CSA Certified |
| Weight (Per Unit) | 0.056 lbs | 0.06 lbs |
| Price (Each) | $6.16 | $6.85 |
| Price (Carton of 10) | $61.58 | $68.46 |
| Stock – All Stores | 1,045 | 943 |
| Application | Solderless Compression Splice for Copper Conductors | Solderless Compression Splice for Copper Conductors |
| Special Features | High pullout values, easy to insulate, low resistance | High pullout values, easy to insulate, low resistance |
| Category | Comp & Mech Lugs and Butt Splices | Comp & Mech Lugs and Butt Splices |
| UNSPSC Code | 39121449 | 39121449 |
| UPC / GTIN | 786210545097 / 00786210545097 | 786210545103 / 00786210545103 |
