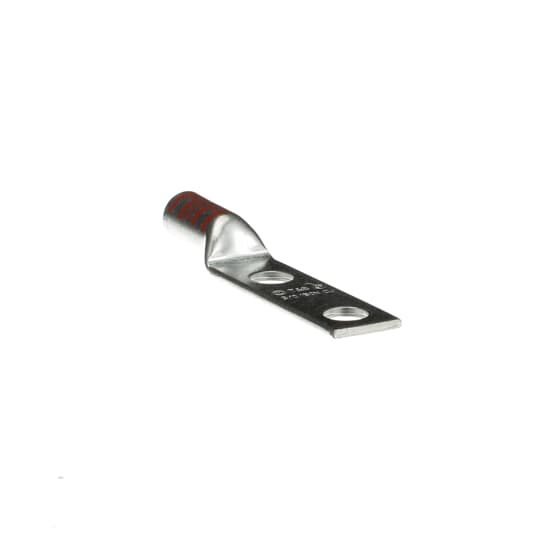

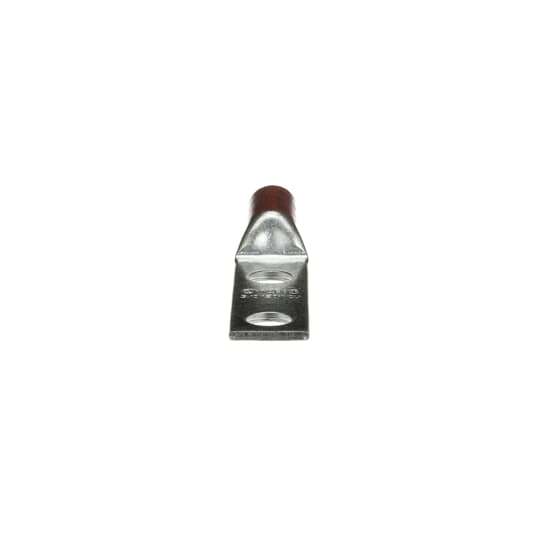

| Feature | Blackburn ADR35 | Color-Keyed 54864BE |
|---|---|---|
| Catalog Number | ADR35 | 54864BE |
| Manufacturer | Blackburn Mechanical | Color-Keyed |
| Conductor Material | Aluminum/Copper (dual-rated) | Copper only |
| Conductor Size Range | #6 AWG (Stranded) to 350 kcmil | 3/0 AWG |
| Terminal Type | Screw (Mechanical Lug) | Tongue (Compression Lug) |
| Mounting Holes | 1 hole (1/4 in stud) | 2 holes (1/2 in studs, 1.75 in spacing) |
| Insulation | Non-Insulated | Non-Insulated |
| Material | Aluminum (Tinned) | Copper (Tin Plated) |
| Overall Length | 2-1/4 in | 4.48 in |
| Voltage Rating | Not listed (typical for mech lugs: up to 600V) | 35 kV |
| Installation Type | Screw-type, no special tools required | Requires compression tool (Die Code 50, Orange) |
| Special Features | Easy installation, no special tools | Long barrel, high conductivity |
| Weight per Unit | 0.145 lb | 0.164 lb |
| Unit Price | $9.70 each | $18.80 each |
| Carton Quantity | 12 ($116.45 per carton) | 10 ($188.01 per carton) |
| Stock (All Stores) | 2,718 units | 5,889 units |
| Standards | UL Listed E9809, CSA Certified | UL Listed E9809, CSA Certified |
| For Use With | Copper & Aluminum conductors | Copper conductors only |
| Made in USA | Yes | Not specified |
