(Each)
$93.05
(Each)
(per 1)
(per 2000)
In Stock Locally
$93.05
| Field | Value |
|---|---|
| Catalog Number | 553020507 |
| Vendor Code | COR |
| Manufacturer | Cables & Cords |
| Manufacturer’s Part Number | 64162102 |

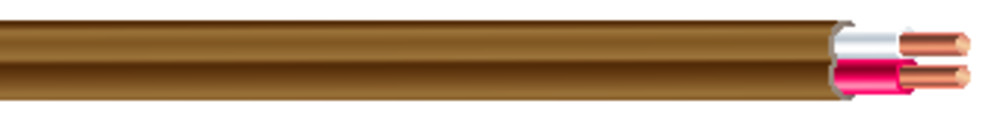

| Description | 18/2 Thermostat/Bell Wire |
| Product Type | Thermostat Wire |
| Short Description | Thermostat Wire, Solid, 18 AWG, 2 Conductors, Copper Conductor |
| Long Description | Thermostat Wire, Solid, 2 Conductors, #18 AWG Conductor Size, 150 V, 500 ft Overall Length, 0.132 in Outside Diameter, 0.006 in Insulation Thickness, Copper Conductor Material, Polypropylene Insulation Material, Red;White, -20 °C Operating Temperature, +60 °C Operating Temperature, 14 lb/mft |
| Extra Long Description | SWC 553020507 THERMOSTAT WIRE – 18/ |
| Classification | Thermostat and Doorbell Wire |
| UNSPSC | 26121517 – Copper wire |
| UPC/GTIN | 029892353803 / 00029892353803 |
| Slang Terms | — |
| Features | Fast and Easy Cable Access |
| Number of Conductors | 2 |
| Conductor Size | #18 AWG |
| Conductor Material | Copper |
| Solid/Strand | Solid |
| Voltage Rating | 150 V |
| Insulation Material | Polypropylene |
| Insulation Thickness | 0.006 in |
| Jacket Material | — |
| Color | Red;White |
| Cable Shape | Round |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | +60 °C |
| Outside Diameter | 0.132 in |
| Overall Length | 500 ft |
| Length | 500 |
| Weight per unit | 0.013 lbs/ft |
| Weight per foot | 0.013 |
| Weight | 14 lb/mft |
| Minimum Order Quantity | 500 Feet |
| Unit Price | $0.19 (Per Foot) |
| Carton Price | $93.05 (Per 500 Feet) |
| Standard Packaging Price | $372.20 (Per 2,000 Feet) |
| Packaging Type | Roll |
| Packaging | Carton: 500, Package: 2000 |
| Standards Met | UL 13; cUL Listed; NEC 725 |
| Made in USA | Yes |
| Applications | Thermostats; Air-Conditioning Controls; Low Voltage Remote Control Circuits; Doorbells |
