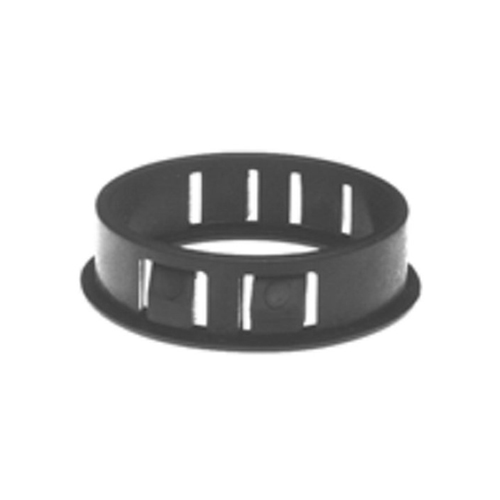

9791 – 1/2″ Knock Out Insulating Bushing
$
(per )
(Each)
$0.32
(Each)
$
(per 100)
$
(per 1000)
Availability:
In Stock Locally
| Catalog Number | 9791 |
| Vendor Code | BRI |
| Manufacturer | Bridgeport |
| Manufacturer’s Part Number | 9791 |
| Description | 1/2″ Knock Out Insulating Bushing |
| Long Description | Insulating Bushing, 1/2 in Trade Size, Black, Straight Connection Orientation, Threaded Connection, 0.953 in Width, 0.453 in Height, 1 in Diameter, +150 °C Operating Temperature, 0.0054 lb/EA |
| Short Description | Insulating Bushing, 1/2 in, Black |
| Extra Long Description | BPT 9791 1/2″ PLASTIC KNOCKOUT BUSH |
| Features | |
| Special Features | Knockout Bushing |
| Application | Converts metallic box rough edged knockout holes to smooth insulated holes for protection of electrical and telecommunications cable. Rated 105 °C. |
| Material, Color, and Finish | |
| Material | Plastic |
| Color | Black |
| Finish | Natural |
| Dimensions and Weight | |
| Width | 0.953 in |
| Height | 0.453 in |
| Diameter | 1 in |
| Size | 1/2 |
| Weight per unit | 0.0054 (lbs/each) |
| Connection Details | |
| Connection Orientation | Straight |
| Connection Type | Threaded |
| Temperature and Ratings | |
| Maximum Operating Temperature | +150 °C |
| Temperature Rating | 105 °C |
| Additional Information | |
| Insulated/Non-Insulated | Insulated |
| For use with | Electrical; Telecommunications Cable |
| Media | Yes |
| Made in USA | Yes |
| Standards Met | |
| Certifications | CSA Certified; UL E240912; CSA LR24719; NEMA FB-1; UL 514B; RoHS Compliant |
| Manufacturer Information | |
| Brand | Bridgeport |
| GTIN | 00781747007919 |
| UPC | 781747007919 |
| Taxonomies, Classifications, and Categories | |
| Category Description | Locknuts, Bushings, Re-Bushings, Re-Washers, Threaded Plugs, Knockout Plugs |
| Classification | Locknuts, Bushings, Re-Bushings, Re-Washers, Threaded Plugs, Knockout Plugs |
| Type | Bushing |
| Trade Size | 1/2 in |
| UNSPSC | |
| 31171609 | Bushing sleeve |
| Packaging | |
| Minimum Order Quantity | 1 |
| Unit Price | $0.32 (Each) |
| Carton | $31.80 (Per 100) |
| Standard Packaging | $318.00 (Per 1,000) |
| Carton Quantity | 100 |
| Package Quantity | 1000 |
