(Each)
$0.39
(Each)
(per 100)
(per 996)
In Stock Locally
$0.39
| Quick Specs | |
|---|---|
| Catalog Number | 9792 Vendor Code BRI |
| Manufacturer | Bridgeport |
| Manufacturer’s Part Number | 9792 |

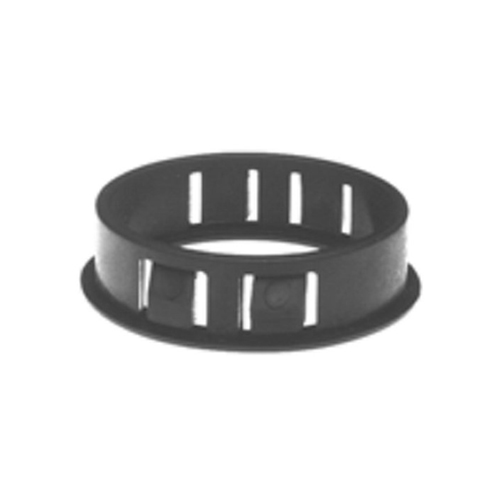

| Description | 3/4″ KNOCK OUT INSULATING BUSHING |
| Details | Insulating Bushing, 3/4 in Trade Size, Black, Straight Connection Orientation, Threaded Connection, 1.218 in Width, 0.453 in Height, 1-3/16 in Diameter, +150 °C Operating Temperature, 0.0071 lb |
| Categories | Rigid Conduit Fittings – Plastic |
| Classification | Locknuts, Bushings, Re-Bushings, Re-Washers, Threaded Plugs, Knockout Plugs |
| UNSPSC | 31171609 – Bushing sleeve |
| UPC/EAN/GTIN | 781747007926 / 0781747007926 / 00781747007926 |
| Weight per unit | 0.0071 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit | $0.39 (Each) |
| Carton | $39.26 (Per 100) |
| Standard Packaging | $392.60 (Per 1,000) |
| Features | Converts metallic box rough edged knockout holes to smooth insulated holes for protection of electrical and telecommunications cable. Rated 105°C. |
| Special Features | Knockout Bushing |
| Material | Plastic |
| Color | Black |
| Finish | Natural |
| Dimensions and Weight | |
| Width | 1.218 in |
| Height | 0.453 in |
| Diameter | 1-3/16 in |
| Size | 3/4 in |
| Weight per Each | 0.0071 lb |
| Descriptions | |
| Product Type | Insulating Bushing |
| Short Description | Insulating Bushing, 3/4 in, Black |
| Long Description | Insulating Bushing, 3/4 in Trade Size, Black, Straight Connection Orientation, Threaded Connection, 1.218 in Width, 0.453 in Height, 1-3/16 in Diameter, +150 °C Operating Temperature, 0.0071 lb/EA |
| Extra Long Description | BPT 9792 3/4″ PLASTIC KNOCKOUT BUSH |
| Additional Information | |
| Color/Finish | Black |
| Insulated/Non-Insulated | Insulated |
| Connection Orientation | Straight |
| Connection Type | Threaded |
| Maximum Operating Temperature | +150 °C |
| For Use With | Electrical; Telecommunications Cable |
| Standards Met | CSA Certified; UL E240912; CSA LR24719; NEMA FB-1; UL 514B; RoHS Compliant |
| Package Quantity | 100 CT; 1000 PK |
| Made in USA | Yes |
| Media | Yes |
| Manufacturer Information | |
| Brand | Bridgeport |
| Manufacturer’s Part Number | 9792 |
| GTIN | 00781747007926 |
| UPC | 781747007926 |
| Taxonomies, Classifications, and Categories | |
| Category Description | Locknuts, Bushings, Re-Bushings, Re-Washers, Threaded Plugs, Knockout Plugs |
| Type | Bushing |
| Trade Size | 3/4 in |
| Uses, Certifications, and Standards | |
| Application | Converts metallic box rough edged knockout holes to smooth insulated holes for protection of electrical and telecommunications cable. Rated 105°C. |
| Standard | CSA, UL |
| Temperature Rating | 105°C |
