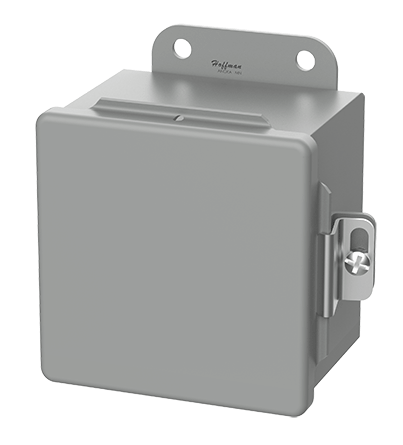

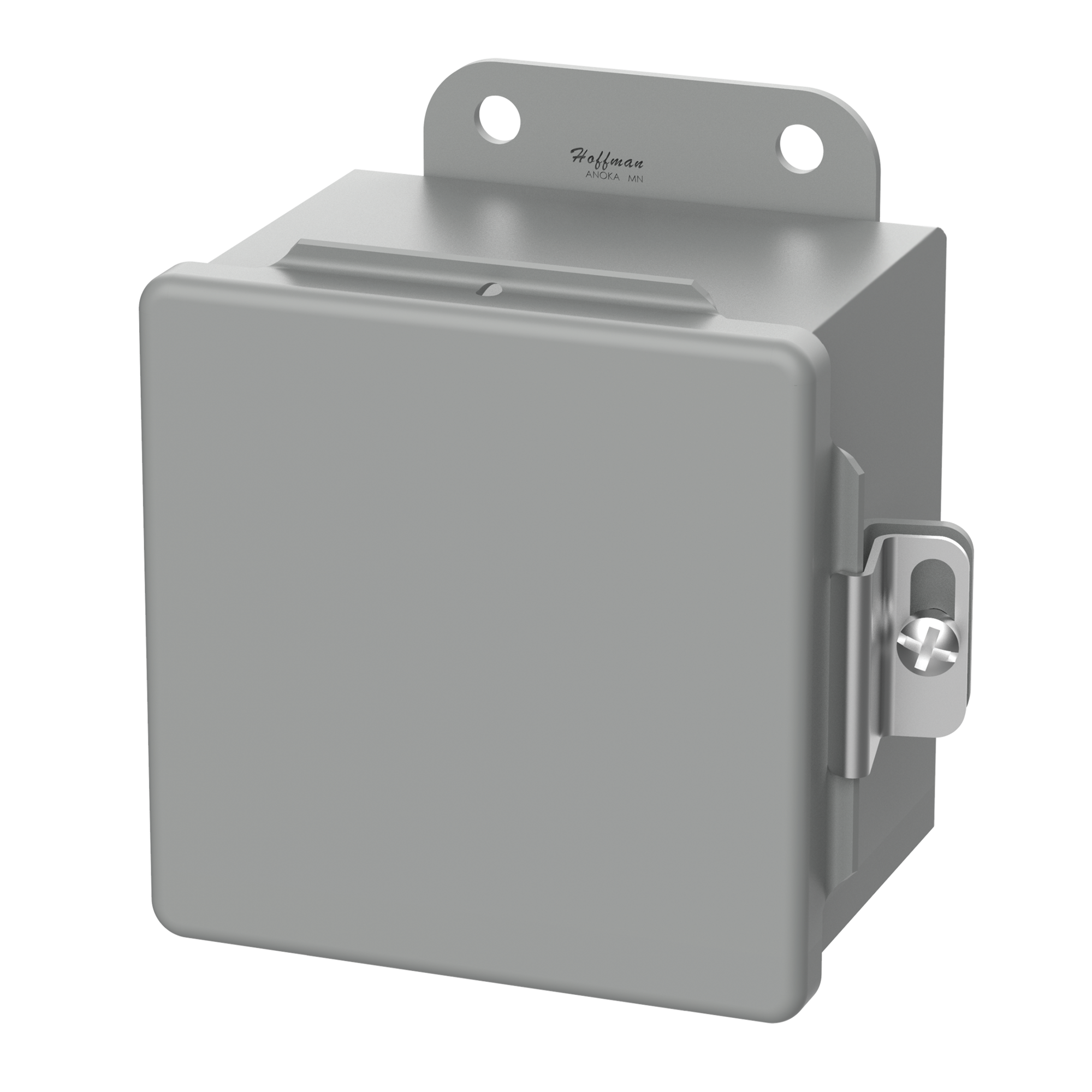

A1212CH – 12X12X6 N12 CH CLMP CVR
$
(per )
(Each)
$237.34
(Each)
$
(per 1)
$
(per 2)
Availability:
In Stock Locally
| Quick Specs | |
| Catalog Number | A1212CH Vendor Code HOF |
| Manufacturer | Nvent Hoffman |
| Manufacturer’s Part Number | A1212CH |
| Description | 12X12X6 N12 CH CLMP CVR |
| Details | Junction Box, Steel, Type 12 Continuous Hinge, Bracket Mount, Gray, Polyester Powder Paint, 12 in x 12 in x 6 in, 29.06 lb |
| Categories | Metal Enclosures & Cabinets – Nema Types 12 & 13 Metallic En |
| Classification | Steel Junction Boxes |
| UNSPSC | 39121303 – Electrical boxes |
| UPC/GTIN | 783510548902 / 00783510548902 |
| Weight per Unit | 29.06 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit Price | $237.34 (Each) |
| Standard Packaging | $474.68 (Per 2) |
| Features | |
| Material | Steel |
| Cover Type | Type 12 Continuous Hinge |
| Mounting Type | Bracket Mount |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Polyester Powder Paint |
| IP Rating | IP65 |
| Special Features | Continuously welded and ground smooth continuous hinge; Screw-down door clamps; Bonding provision on door; External welded-on mounting brackets; Oil-resistant gasket; Weldnuts provided for mounting options. |
| General Features | This easy-to-open, continuous hinge enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications. |
| Descriptions | |
| Product Type | Junction Box |
| Short Description | 12X12X6 N12 Junction Box, Steel, Gray |
| Long Description | Junction Box, Steel, Type 12 Continuous Hinge, Bracket Mount, Gray, Polyester Powder Paint, 12x12x6 in, 29.06 lb |
| Extra Long Description | NVENT HOF A1212CH CH Box 12.00×12.00×6.00 |
| Dimensions | |
| Size | 12.00×12.00×6.00 in |
| Overall Length | 12 in (305 mm) |
| Overall Width | 12 in (305 mm) |
| Overall Height | 6 in (152 mm) |
| Manufacturer Info | |
| Brand | Nvent Hoffman |
| GTIN | 00783510548902 |
| UPC | 783510548902 |
| Classifications | |
| Category Description | Steel Junction Boxes |
| Type | Mild Steel Industrial Terminal and Junction Boxes |
| Packaging | |
| Weight per Each | 29.06 lb |
| Carton | 1 |
| Package | 2 |
| Certifications & Standards | |
| Application | Continuous hinge enclosure with screw-down clamps for secure closure in various industrial applications. |
| Enclosure Type | NEMA 12/13 |
| Standards Met |
UL 50, 50E Listed, Type 12, 13 (File No. E27567); cUL Listed per CSA 22.2 No. 94, Type 12, 13 (File No. E27567); UL 508A Listed, Type 12, 13 (File No. E61997); RoHS Compliant |
| Made in USA | Yes |
