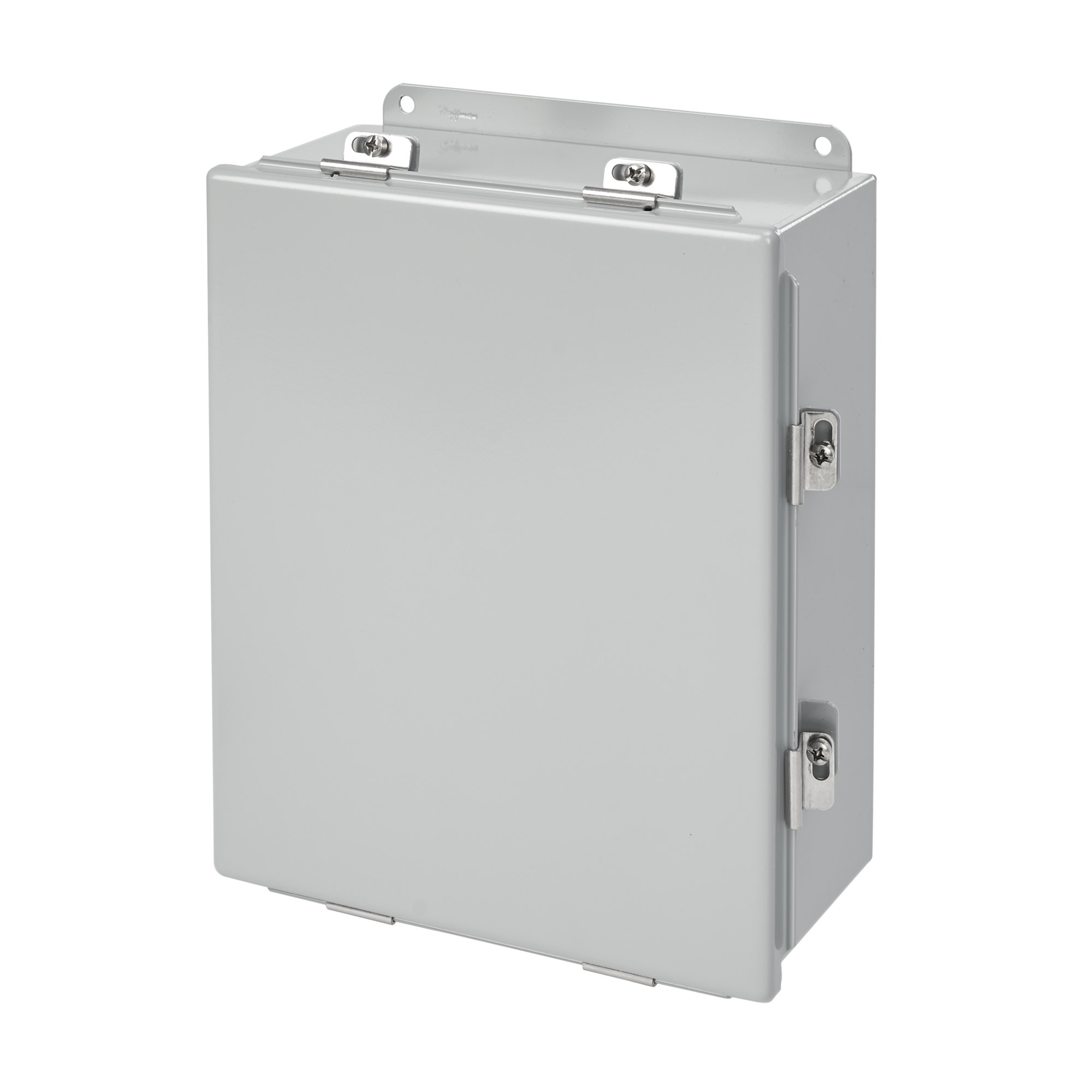

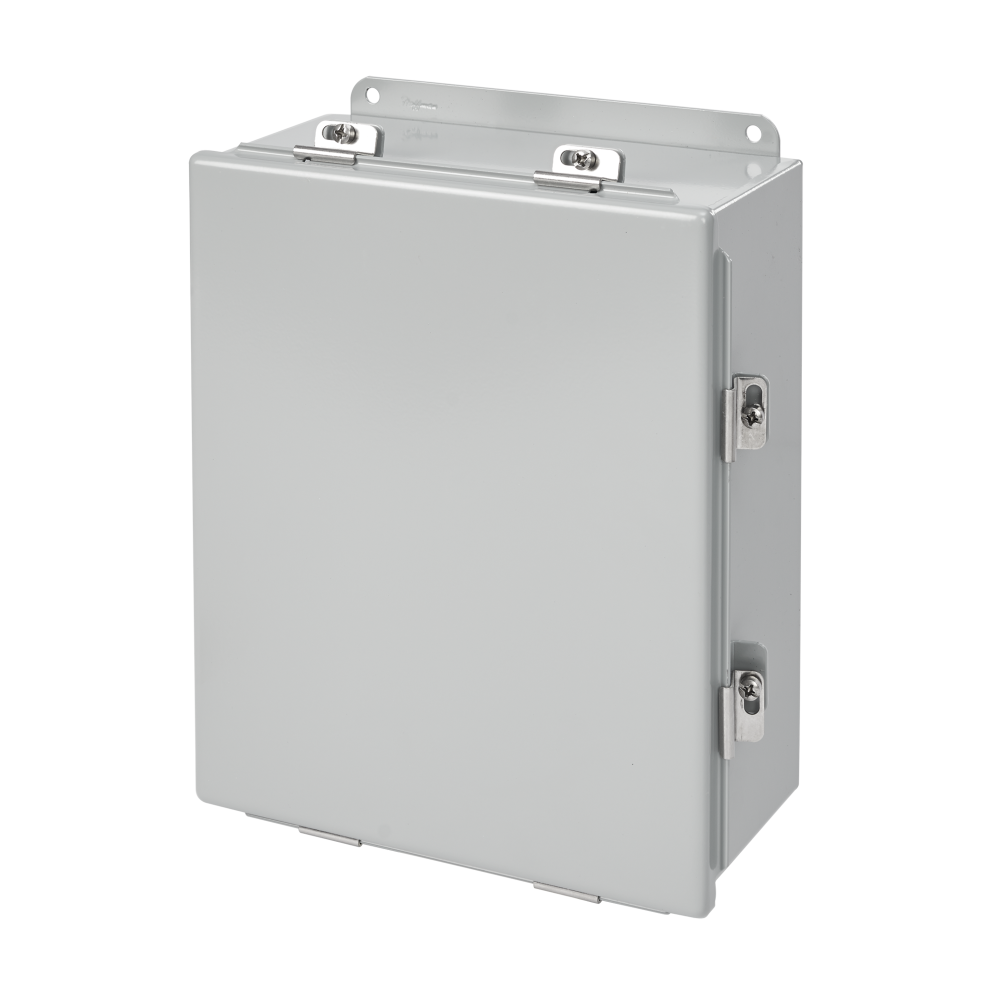

A1212CHNF – 12X12X6 N4 CH CLMP CVR
$
(per )
(Each)
$298.59
(Each)
$
(per 1)
$
(per 2)
Availability:
In Stock Locally
| Quick Specs | |
| Catalog Number | A1212CHNF Vendor Code HOF |
| Manufacturer | Nvent Hoffman |
| Manufacturer’s Part Number | A1212CHNF |
| Description | 12X12X6 N4 CH CLMP CVR |
| Details | Junction Box, Steel, Type 4 Continuous Hinge, Bracket Mount, Gray, Polyester Powder Paint, 12 in x 12 in x 6 in, 29.7 lb |
| Categories | Metal Enclosures & Cabinets – Nema Types 4 & 12 Metallic En |
| Classification | Steel Junction Boxes |
| UNSPSC | 39121303 – Electrical boxes |
| UPC/GTIN | 783510554804 / 00783510554804 |
| Weight per Unit | 29.7 (lbs/each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit Price | $298.59 (Each) |
| Standard Packaging | $597.18 (Per 2) |
| Features | |
| Material | Steel |
| Cover Type | Type 4 Continuous Hinge |
| Mounting Type | Bracket Mount |
| Color | Gray |
| Color Code | ANSI 61 |
| Finish | Polyester Powder Paint |
| IP Rating | IP66 |
| Special Features |
Seamlessly welded corners and smooth surfaces; Easy-to-remove hinge pins with captive clip; High-torque, threadless studs and fasteners on the door; Stainless steel clamps on three sides; Minimum-width body flange for maximum door opening; Designed for environmental protection in indoor or outdoor applications. |
| General Features | Stainless steel clamps on three sides combined with a continuous hinge offer environmental protection and secure closure for indoor/outdoor applications. |
| Descriptions | |
| Product Type | Junction Box |
| Short Description | 12X12X6 N4 Junction Box, Steel, Gray |
| Long Description | Junction Box, Steel, Type 4 Continuous Hinge, Bracket Mount, Gray, Polyester Powder Paint, 12x12x6 in, 29.7 lb |
| Extra Long Description | NVENT HOF A1212CHNF CHNF Box 12.00×12.00×6.00 |
| Dimensions | |
| Size | 12.00×12.00×6.00 in |
| Overall Length | 12 in (305 mm) |
| Overall Width | 12 in (305 mm) |
| Overall Height | 6 in (152 mm) |
| Manufacturer Info | |
| Brand | Nvent Hoffman |
| GTIN | 00783510554804 |
| UPC | 783510554804 |
| Classifications | |
| Category Description | Steel Junction Boxes |
| Type | Mild Steel Industrial Terminal and Junction Boxes |
| Packaging | |
| Weight per Each | 29.7 lb |
| Carton | 1 |
| Package | 2 |
| Certifications & Standards | |
| Application | Indoor or Outdoor |
| Enclosure Type | NEMA 4, 12, 13 |
| Standards Met |
UL 50, 50E Listed Type 4, 12, 13 (File No. E27567); cUL Listed per CSA C22.2 No. 94 Type 4, 12, 13 (File No. E27567); UL 508A Listed, Type 4, 12, 13 (File No. E61997); RoHS Compliant |
| Made in USA | Yes |
