(Each)
$3,647.93
(Each)
(per 1)
In Stock Locally
$3,647.93
| Catalog Number | A200M2CAC |
|---|---|
| Vendor Code | ETN |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | A200M2CAC |

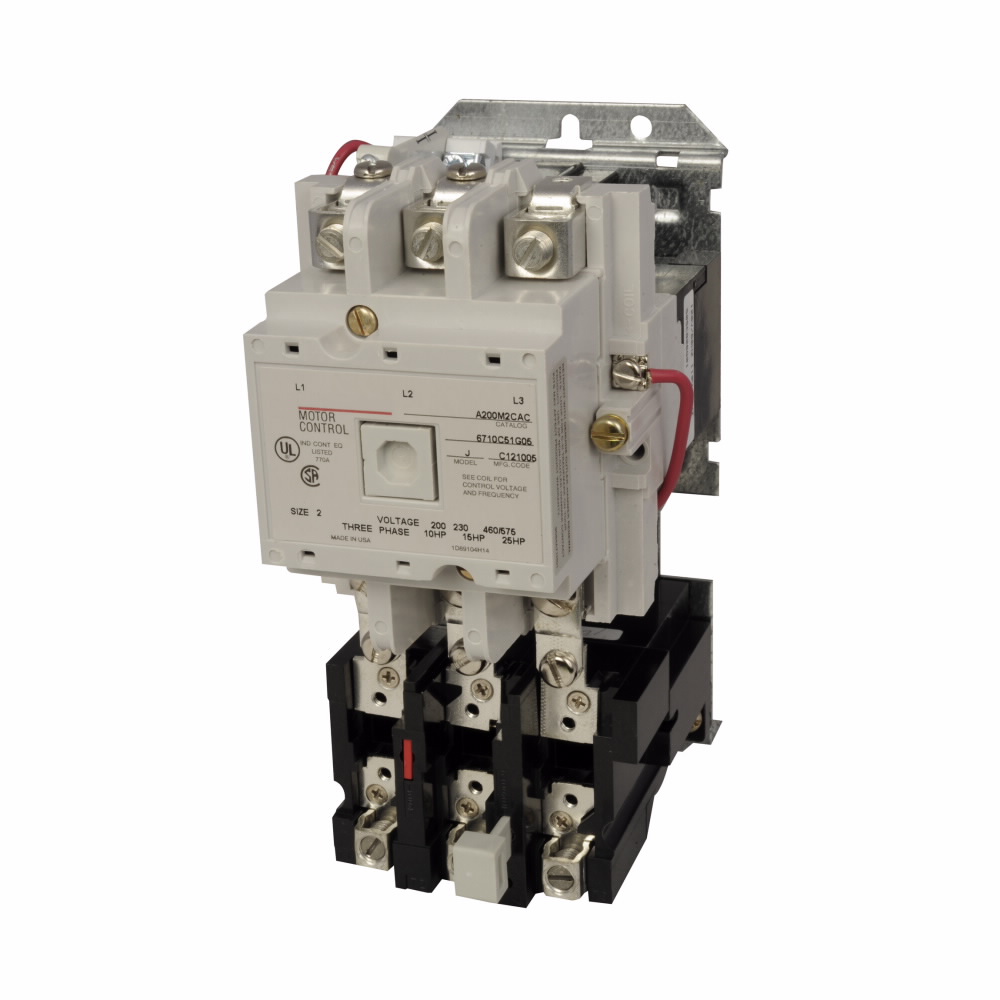

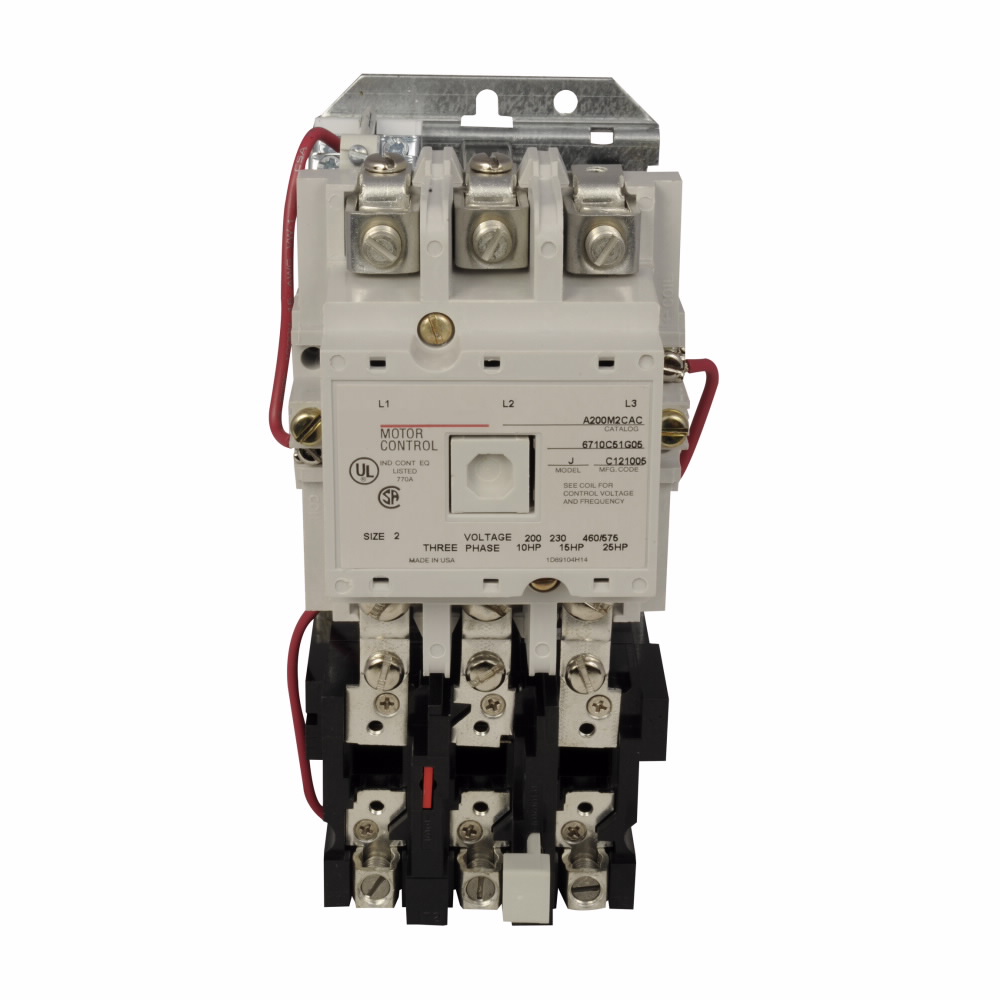

| Description | A200 – Starter Size 2 Open 3 Pole 120V/60HZ Coil |
| Long Description | Eaton Freedom NEMA motor control starter, Non-reversing starter, 120 VAC coil voltage, 45A, Three-pole, Size 2, 7-1/2 HP at 115V, 10 HP at 208V, 15 HP at 240V, 25 HP at 480, 600V, A200 series, Wired for Separate Control |
| Product Type | A200, SZ2, Open, 3P, 120V / 60HZ Coil |
| Features | All Class A200 non-reversing starters utilize Type B three-pole overload relays with optional Type A for auto reset applications. Sizes 5 and 6 include the needed current transformers. Moving and stationary contacts are front accessible for simple and easy inspection and maintenance. All Class A200 starters are UL listed and recognized and are CSA certified. |
| Coil Voltage | 120 VAC |
| Categories | Motor CNTRL Starters & CNTCTRS – Nema Non-Combination Starters |
| Classification | Full Voltage Non-Reversing Control Starters |
| UNSPSC | 39121521 – Motor starter controls |
| UPC/GTIN | 786678231211 / 00786678231211 |
| Weight per unit | 4.2 lbs/each |
| Price | $3,647.93 (Each) |
| Minimum Order Quantity | 1 |
| Stock Availability | Nacogdoches: 4, All Stores: 9 |
| Dimensions (inches) | Height: 5, Width: 6.1, Depth: 8.2 |
| Brand | Viton(R) |
| Standards | CSA Certified, UL Listed |
| Application | Electrical Assemblies, Panels & EOEM |
