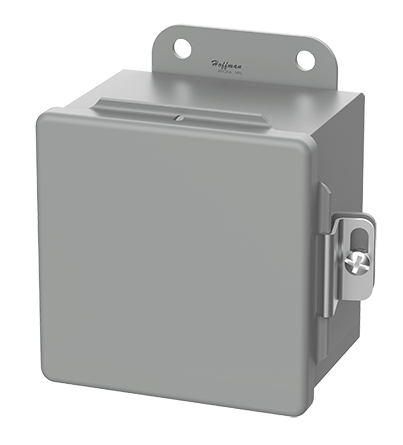

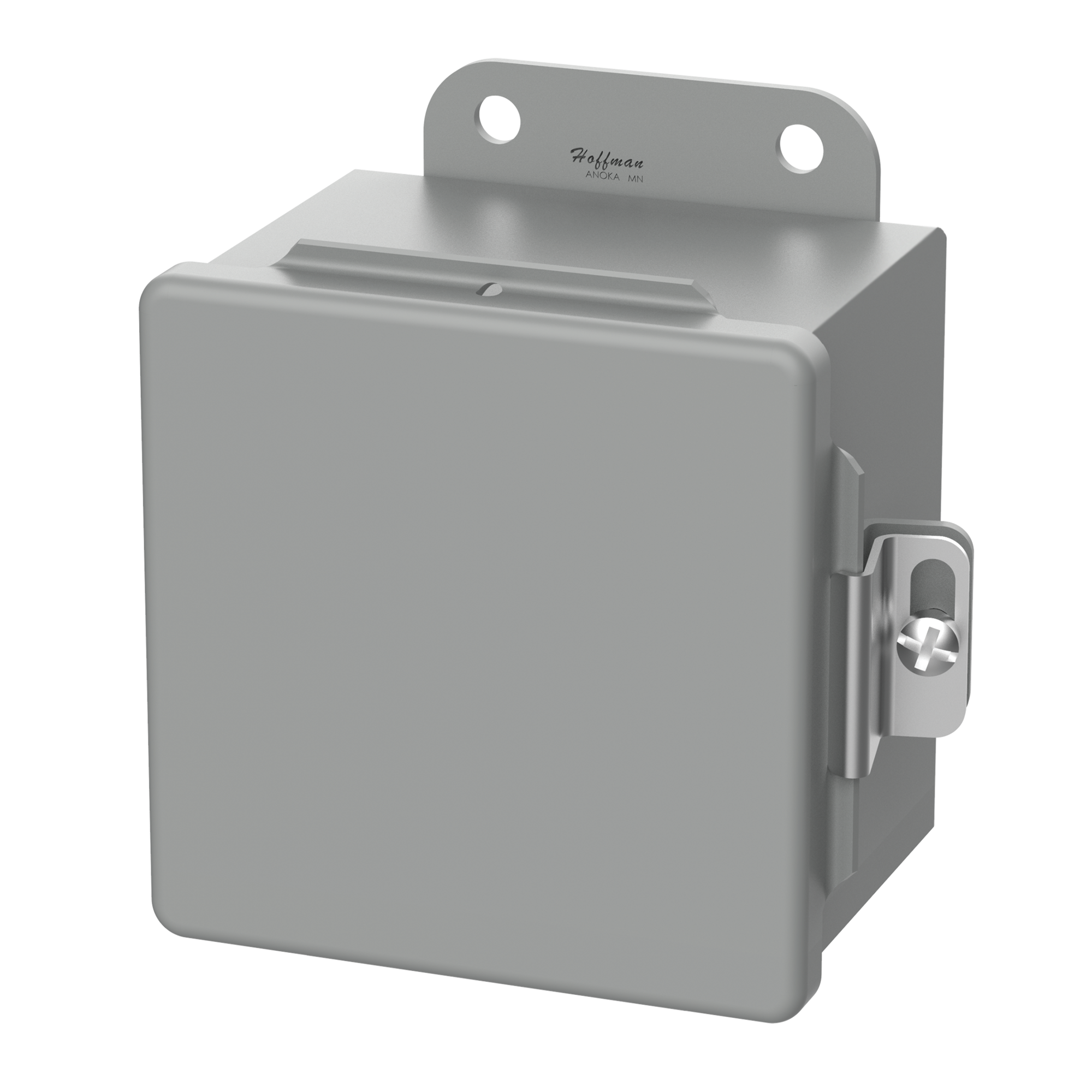

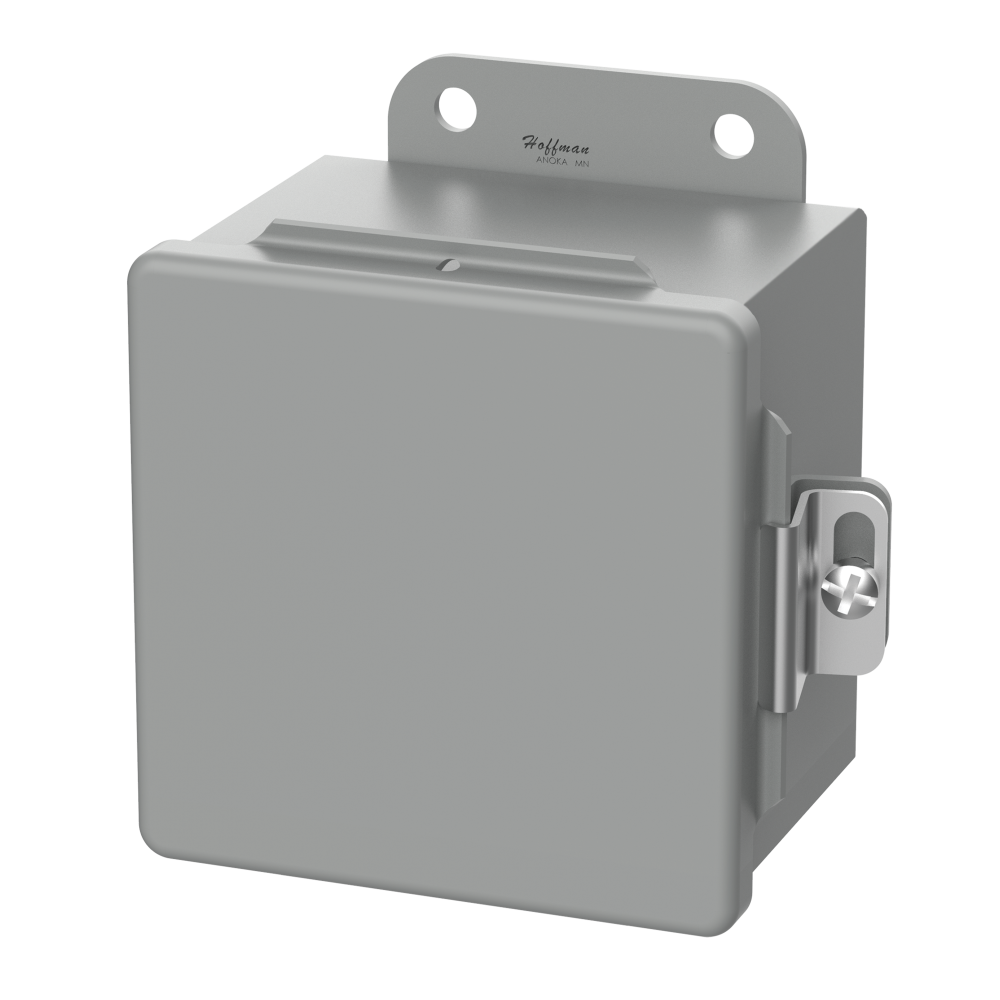

A606CH – 6X6X4 N12 CH CLMP CVR
$
(per )
(Each)
$129.32
(Each)
$
(per 1)
Availability:
In Stock Locally
| Catalog Number | A606CH |
|---|---|
| Vendor Code | HOF |
| Manufacturer | Nvent Hoffman |
| Manufacturer’s Part Number | A606CH |
| Description | 6X6X4 N12 CH CLMP CVR |
| Product Type | Junction Box |
| Material | Steel |
| Cover Type | Type 12 Continuous Hinge |
| Color | Gray |
| Finish | Polyester Powder Paint |
| Color Code | ANSI 61 |
| Enclosure Type | NEMA 12/13 |
| Mounting Type | Bracket Mount |
| Depth / Height | 4 in; 102 mm |
| Width | 6 in; 152 mm |
| Overall Length | 6 in; 152 mm |
| Size | 6.00×6.00×4.00 in |
| Weight | 32 lb |
| Classification | Steel Junction Boxes |
| UNSPSC | 39121303 – Electrical boxes |
| UPC/GTIN | 783510553906 / 00783510553906 |
| Minimum Order Quantity | 1 |
| Unit Price | $129.32 (Each) |
| Short Description | 8X8X4 N12 Junction Box, Steel, Gray |
| Long Description | Junction Box, Steel, Type 12 Continuous Hinge, Bracket Mount, Gray, Polyester Powder Paint, 6 in Overall Width, 6 in Overall Length, 4 in Overall Height, 32 lb |
| Extra Long Description | NVENT HOF A606CH CH Box 6.00×6.00×4 |
| Special Features | Continuously Welded and Ground Smooth Continuous Hinge; Screw-Down Door Clamps; Bonding Provision on Door; External Welded-On Mounting Brackets for Easy Installation; Oil-Resistant Gasket; Weldnuts Provided for Mounting Option |
| Features | This easy-to-open, continuous hinge enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications. |
| IP Rating | IP65 |
| Standards Met | UL 50, 50E Listed, TYPE 12, 13, FILE NO. E27567; cUL Listed per CSA 22.2 NO. 94, Type 12, 13, FILE NO. E27567; UL 508A Listed, Type 12, 13, FILE NO. E61997; cUL Listed per CSA 22.2 NO. 94, Type 12, 13, FILE NO. E61997 |
| Made in USA | Yes |
| Application | This Easy-To-Open Continuous Hinge Enclosure Features Screw-Down Clamps for Secure Closure |
| Brand | Nvent Hoffman |
| GTIN | 00783510553906 |
| UPC | 783510553906 |
| Category Description | STEEL JUNCTION BOXES |
| Type | Mild Steel Industrial Terminal and Junction Boxes |
| Carton | 1 |
