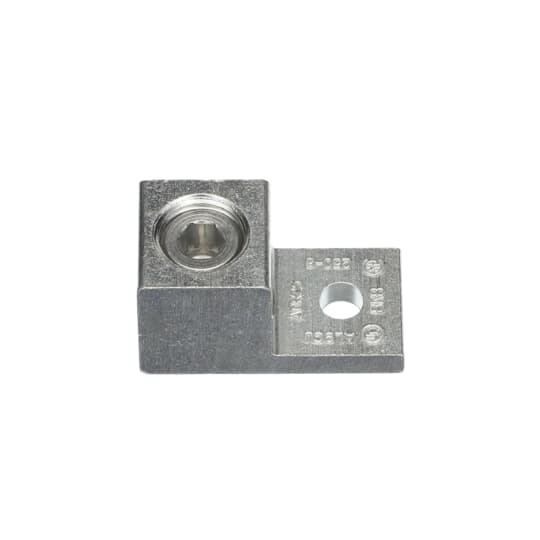

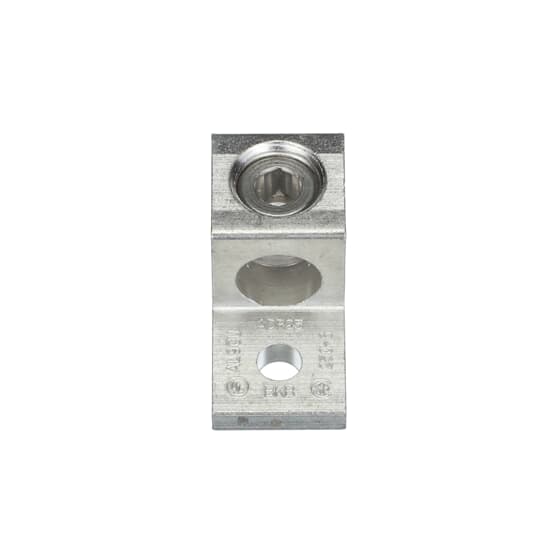

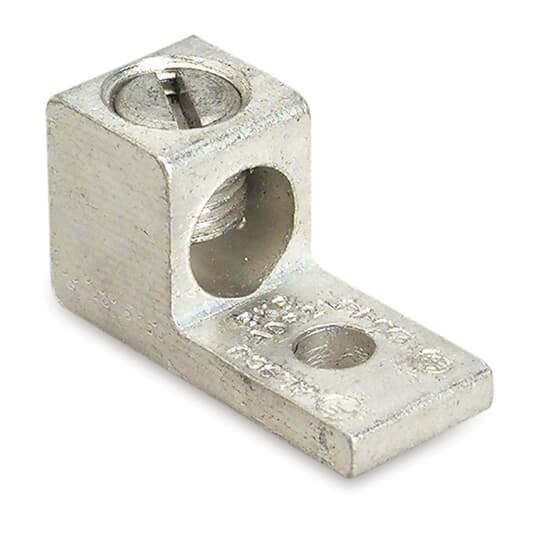

ADR2521 – 250 Al/Cu 2 Conduct Lug
$
(per )
(Each)
$14.46
(Each)
$
(per 1)
$
(per 12)
Availability:
In Stock Locally
| Category | Details |
|---|---|
| Catalog Number | ADR2521 |
| Vendor Code | TAB |
| Manufacturer | Blackburn Mechanical |
| Manufacturer’s Part Number | ADR25-21 |
| Description | 250 Al/Cu 2 Conduct Lug |
| Detailed Description | Mechanical Connector Lug, #6 AWG (Stranded) Conductor Size, 250 Kcmil Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 2 Conductors, 2-9/16 in Overall Length, Screw Terminal, 0.22 lb each |
| Slang Terms | — |
| Categories | Solderless Connectors – Large Terminals & Connectors |
| Classification | Comp & Mech Lugs and Butt Splices |
| UNSPSC | 39121408 – Mechanical connectors |
| UPC/EAN/GTIN | 783786610129 / 5415022348408 / 00783786610129 |
| Weight per unit | 0.219 lbs (each) |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit Price | $14.46 (Each) |
| Carton Price | $173.58 (Per 12) |
| Stock Availability | |
| Nacogdoches | 69 (Check another store) |
| All Stores | 3,899 |
| Features | |
| Number of Conductors | 2 |
| Terminal Type | Screw |
| Material | Aluminum |
| Material, Color, and Finish | |
| Conductor Material | Aluminum; Copper |
| Finish | Tinned |
| Dimensions and Weight | |
| Overall Length | 2-9/16 in |
| Weight | 0.22 lb |
| Descriptions | |
| Short Description | Mechanical Connector Lug, Non-Insulated, 2-9/16 in Length |
| Special Features | Easy Installation; No Special Tools Required |
| Product Type | Mechanical Connector Lug |
| Long Description | Mechanical Connector Lug, #6 AWG (Stranded) Conductor Size, 250 Kcmil Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 2 Conductors, 2-9/16 in Length, Screw Terminal, 0.22 lb each |
| Extra Long Description | ABB ADR25-21 AL 2CNDR 250 KCMIL,MIN |
| Description | 250 AL/CU 2 CONDUCT LUG |
| Additional Information | |
| Minimum Conductor Size | #6 AWG (Stranded) |
| Maximum Conductor Size | 250 Kcmil |
| For Stud Size | 1/4 in (Bolt) |
| Insulated/Non-Insulated | Non-Insulated |
| For Use With | Copper and Aluminum Conductor |
| Made in USA | Yes |
| Standards Met | UL Listed E9809; CSA Certified |
| Package Quantity | 12 CT; 120 PK |
| Number of Mounting Holes | 1 |
| Manufacturer Information | |
| Sub Brand | Blackburn |
| Brand | Blackburn Mechanical |
| Manufacturer’s Part Number | ADR25-21 |
| GTIN | 00783786610129 |
| UPC | 783786610129 |
| Taxonomies, Classifications, and Categories | |
| Category Description | Comp & Mech Lugs and Butt Splices |
| Type | Dual-Rated Mechanical Connector |
| Packaging | Weight: 0.22 lb each, Carton: 12 |
| Uses, Certifications, and Standards | |
| Standard | UL E9809 |
