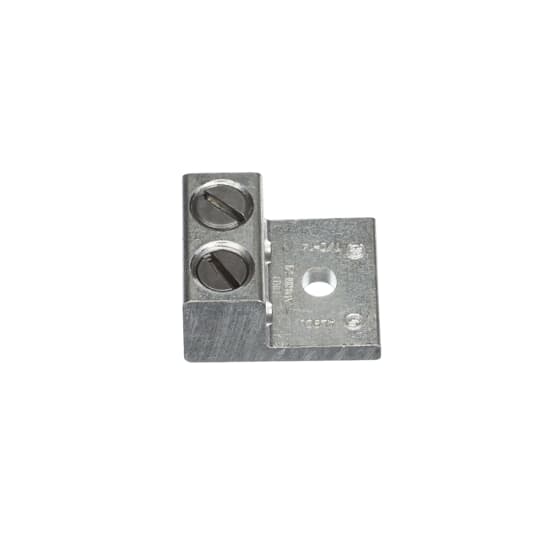

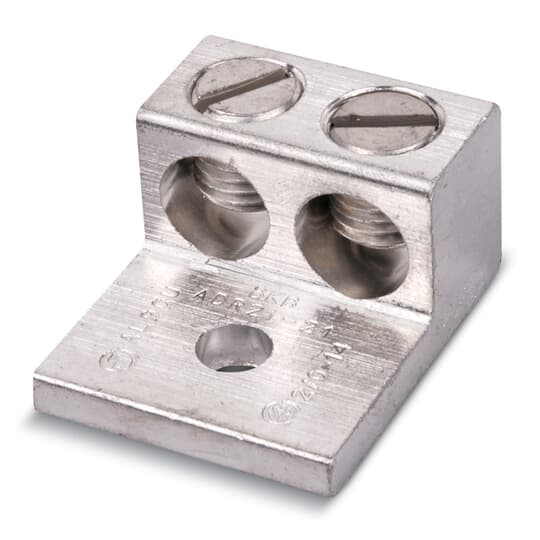

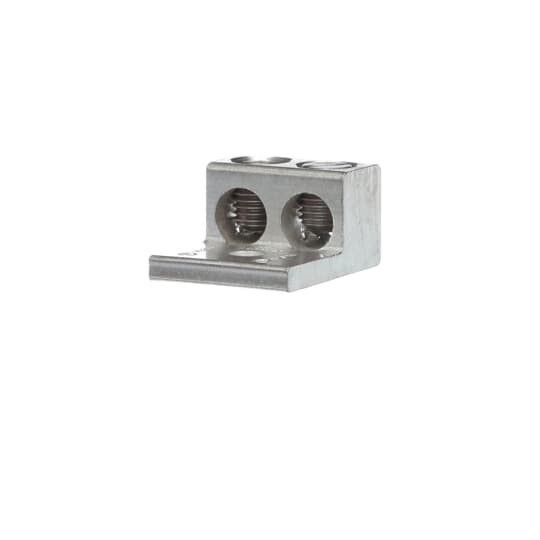

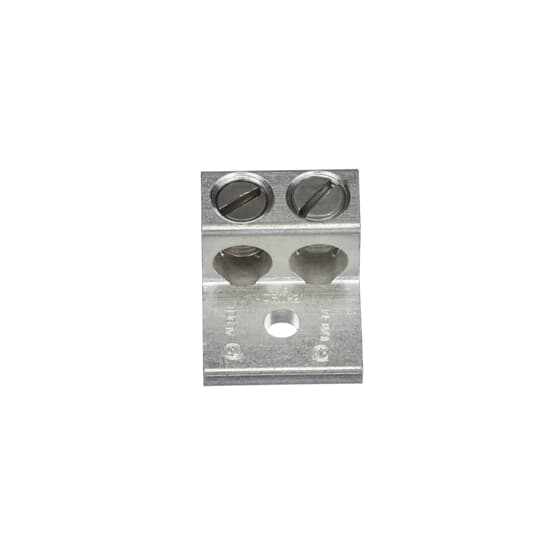

ADR3521 – 350 Al/Cu 2 Conduct Lug
$
(per )
(Each)
$20.06
(Each)
$
(per 1)
Availability:
In Stock Locally
| Category | Details |
|---|---|
| Quick Specs | |
| Catalog Number | ADR3521 Vendor Code TAB |
| Manufacturer | Blackburn Mechanical |
| Manufacturer’s Part Number | ADR35-21 |
| Description | 350 Al/Cu 2 Conduct Lug |
| Detailed Description | Mechanical Connector Lug, #6 AWG (Stranded) Conductor Size, 350 Kcmil Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 2 Conductors, 2-1/8 In Overall Length, Screw Terminal, 0.28 LB/Ea |
| Slang Terms | (none provided) |
| Categories | Solderless Connectors – Large Terminals & Connectors |
| Classification | Comp & Mech Lugs and Butt Splices |
| UNSPSC | 39121408 – Mechanical connectors |
| UPC/EAN/GTIN | 783786610228 / 5414363147510 / 00783786610228 |
| Weight per unit | 0.281 lbs/each |
| Price & Packaging | |
| Minimum Order Quantity | 1 |
| Unit Price | $20.06 (Each) |
| Carton Price | $120.36 (Per 6) |
| Stock Availability | Nacogdoches: 10 (Check another store) All Stores: 1,209 |
| Features | |
| Number of Conductors | 2 |
| Terminal Type | Screw |
| Material | Aluminum |
| Conductor Material | Aluminum; Copper |
| Finish | Tinned |
| Dimensions and Weight | |
| Overall Length | 2-1/8 in |
| Descriptions | |
| Product Type | Mechanical Connector Lug |
| Long Description | Mechanical Connector Lug, #6 AWG (Stranded) Conductor Size, 350 kcmil Conductor Size, Non-Insulated, Aluminum/Copper Conductor Material, 2 Conductors, 2-1/8 in Overall Length, Screw Terminal, 0.28 lb/EA |
| Short Description | Mechanical Connector Lug, Non-Insulated, 2-1/8 in L |
| Special Features | Easy Installation; No Special Tools Required |
| Additional Description | 350 AL/CU 2 CONDUCT LUG |
| Extra Long Description | ABB ADR35-21 AL 2CNDTR 1HOLE MOUNT |
| Additional Information | |
| Minimum Conductor Size | #6 AWG (Stranded) |
| Maximum Conductor Size | 350 kcmil |
| For Stud Size | 1/2 in (Bolt) |
| Insulated/Non-Insulated | Non-Insulated |
| Package Quantity | 6 CT; 60 PK |
| For Use With | Copper and Aluminum Conductor |
| Made in USA | Yes |
| Standards Met | UL Listed E9809; CSA Certified |
| Number of Mounting Holes | 1 |
| Manufacturer Information | |
| Sub Brand | Blackburn |
| Brand | Blackburn Mechanical |
| Manufacturer’s Part Number | ADR35-21 |
| GTIN | 00783786610228 |
| UPC | 783786610228 |
| Taxonomies, Classifications, and Categories | |
| Category Description | Comp & Mech Lugs and Butt Splices |
| Type | Dual-Rated Mechanical Connector |
| Packaging | Carton: 6 |
| Weight | 0.28 lb/EA |
| Weight Per Each | 0.281 |
| Uses, Certifications, and Standards | |
| Standard | UL E9809 / UL E9809 |
