| Attribute | Details |
|---|---|
| Catalog Number | AGC.5R |
| Vendor Code | BUS |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | AGC-1/2-R |

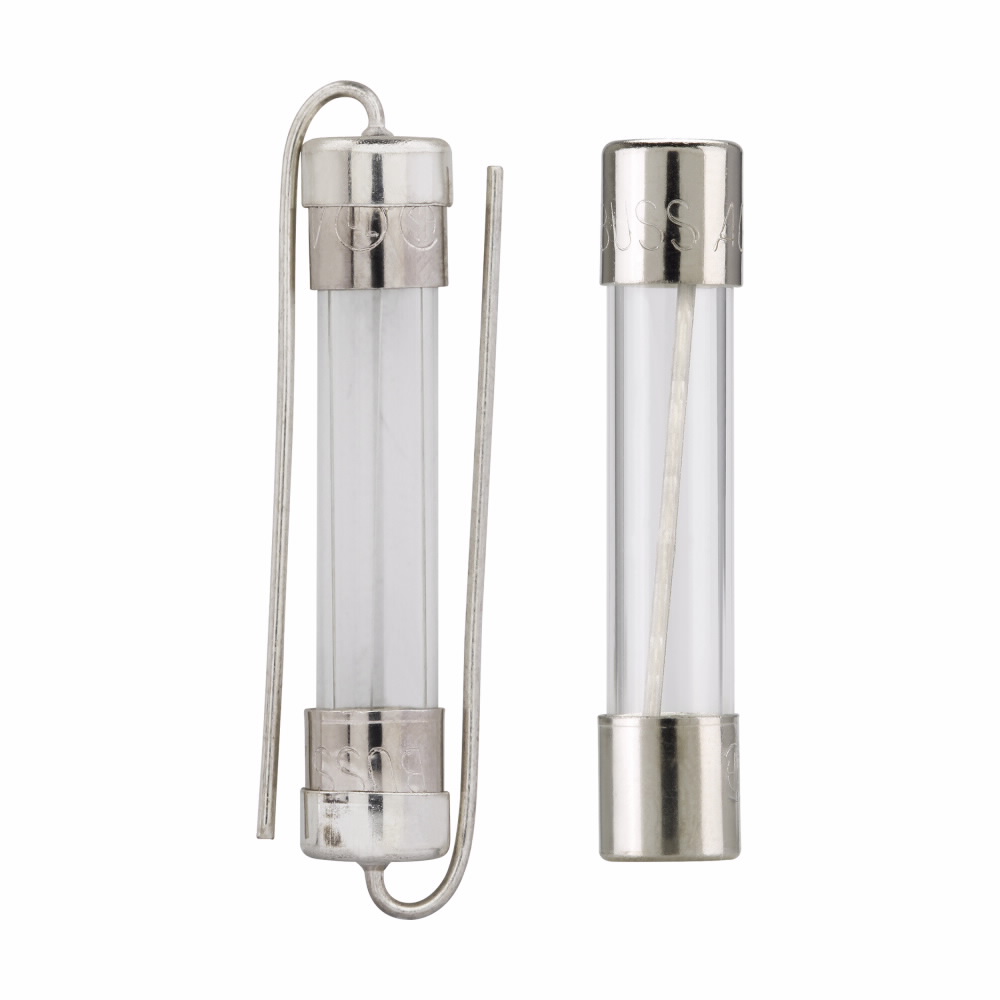

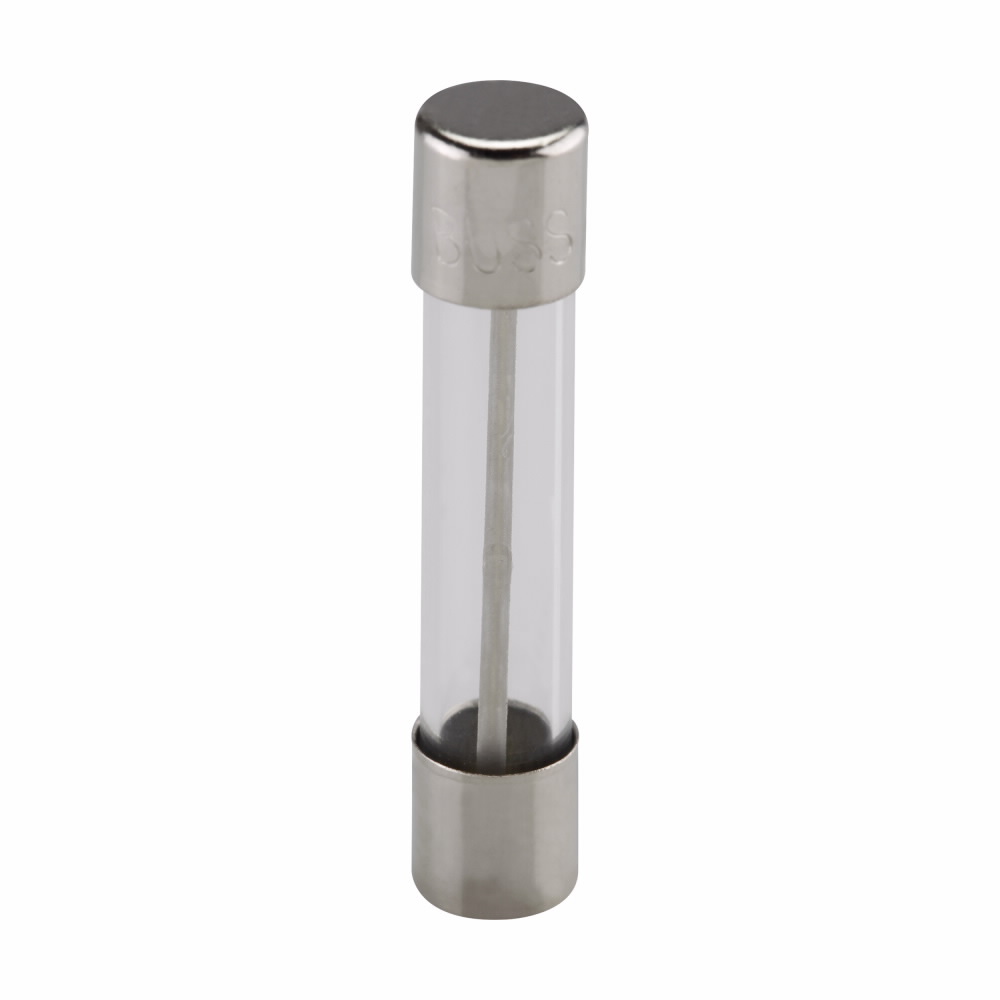

| Description | 1/2A 250VAC 1/4X1-1/4 FA RoHS FA Glass Fuse |
| Product Type | Buss Small Dimension Fuse |
| Long Description | Eaton AGC series Fast-acting fuse .5A, 250 Vac, 32 Vdc (self certified), AGC-1-2-R |
| Extra Long Description | EFSE AGC-1/2-R BUSS SMALL DIMENSION |
| Categories | Fuses – Small Dimension Fuses |
| Classification | Glass Fuses (and Ceramic) |
| Category Description | GLASS FUSES (and ceramic) |
| UNSPSC | 39121607 – Glass body fuses |
| UPC / GTIN / EAN | 051712654913 / 00051712654913 / 5027590224666 |
| Weight per Unit | 0.003 lbs |
| Minimum Order Quantity | 1 |
| Unit Price | $1.77 (Each) |
| Standard Packaging | $8.85 (Per 5) |
| Voltage Rating | 250 Vac, 32 Vdc (self certified) |
| Interrupt Rating | 35 AIC at 250 Vac; 10 kAIC at 125 Vac |
| Amperage Rating | 0.5 A |
| Connection Type | Ferrule End x Ferrule End |
| Material | Glass tube; Nickel-plated brass end cap construction |
| Size / Dimensions | 1/4 in Diameter x 1-1/4 in Length (1.2500 x 0.2500 x 0.2500 in) |
| Response Time | 60 min at 135%, 120 sec at 200% |
| Special Features | ROHS Compliant; Interrupt Rating 35 A @ 250 Vac, 10,000 A @ 125 Vac |
| Application | Industrial Facilities & Factories – Facility: Safety and Security Systems |
| Standard Compliance | RoHS Compliant |
| Brand | Eaton Bussmann series |
