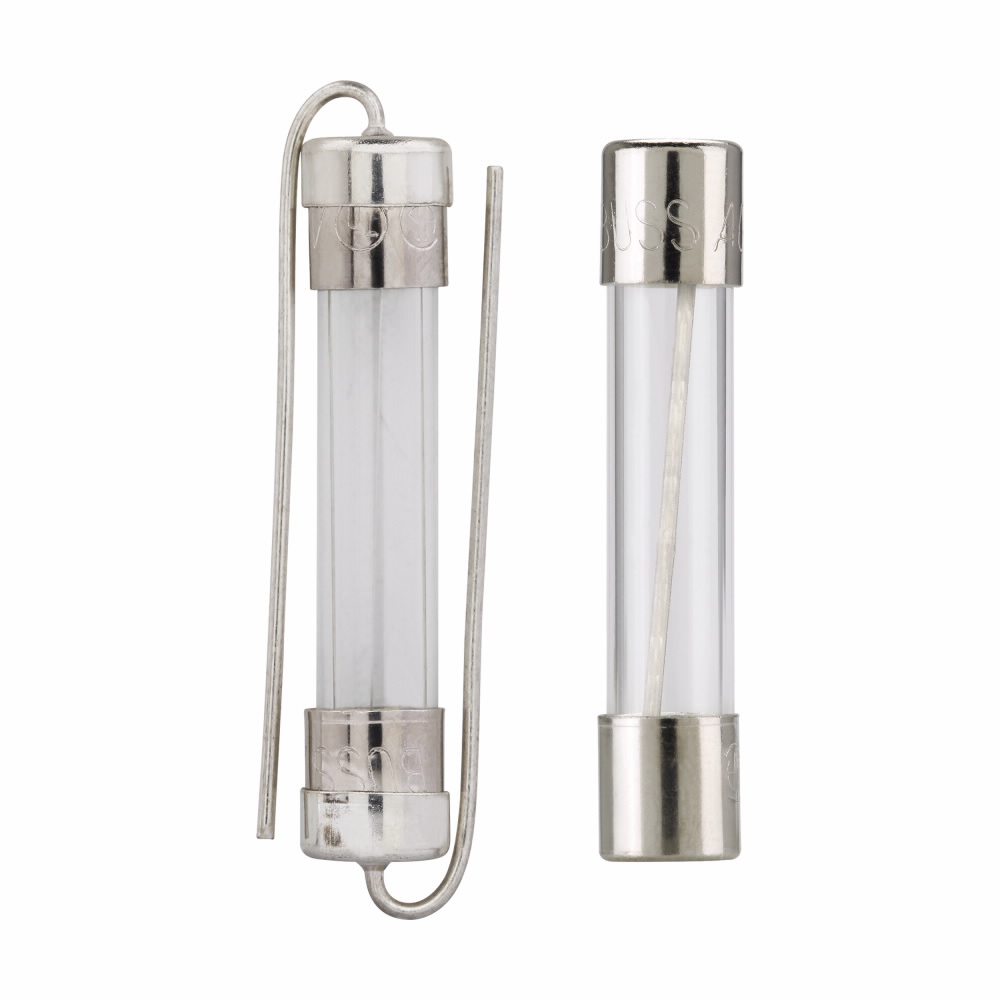

AGC15R – 15A 32V 1/4X1-1/4 Rohs Fa Glass Fuse
$
(per )
(Each)
$1.93
(Each)
$
(per 5)
Availability:
In Stock Locally
| Attribute | Details |
|---|---|
| Catalog Number | AGC15R |
| Vendor Code | BUS |
| Manufacturer | Eaton |
| Manufacturer’s Part Number | AGC-15-R |
| Description | 15A 32V 1/4×1-1/4 ROHS Fast Acting Glass Fuse |
| Product Type | Fuse |
| Short Description | 15 A, 32 VAC, Fast Acting Fuse |
| Long Description | Fast Acting, Ferrule End x Ferrule End, 15 A, 32 V AC, Glass/Brass, 1/4 x 1-1/4 in, 0.01 lb |
| Extra Long Description | EFSE AGC-15-R BUSS SMALL DIMENSION |
| Slang Terms | — |
| Categories | Fuses – Small Dimension Fuses |
| Classification | Glass Fuses (and Ceramic) |
| UNSPSC | 39121607 – Glass body fuses |
| UPC / GTIN | 051712655026 / 00051712655026 |
| Weight per Unit | 0.01 lbs |
| Minimum Order Quantity | 1 |
| Unit Price | $1.93 (Each) |
| Standard Packaging | $9.65 (Per 5) |
| Current Rating | 15 A |
| Amperage Rating | 15 A |
| Voltage Rating | 32 V AC |
| Interrupt Rating | 1000 A @ 32 V AC |
| Material | Glass (Body); Brass (End Cap) |
| Terminal Type | Ferrule |
| Connection Type | Ferrule End x Ferrule End |
| Response Time | 60 min at 135%, 120 sec at 200% |
| Fuse Speed | Fast Acting |
| Size | 1/4 in Diameter x 1-1/4 in Length |
| Diameter | 1/4 in (6.3 mm) |
| Overall Length | 1-1/4 in (32 mm) |
| Features | UL 248-14 compliant, Fast Acting, RoHS compliant, CE Certified |
| Special Features | Interrupt Rating 1000 A @ 32 V AC, Nickel-Plated Brass Endcap |
| Standards Met | UL 248-14, CSA Certified, RoHS Compliant, CE Certified |
| Application | Electronic Circuits |
| Brand | Eaton Bussmann series |
| Category Description | Glass Fuses (and Ceramic) |
| Type | Fast-acting glass tube fuse |
| Packaging Info | Weight: 0.01 lbs; Carton: 1; Package: 5 |
